UCF208 Chrome Steel Screw Lock Square Flange Pillow Block Bearing

new products

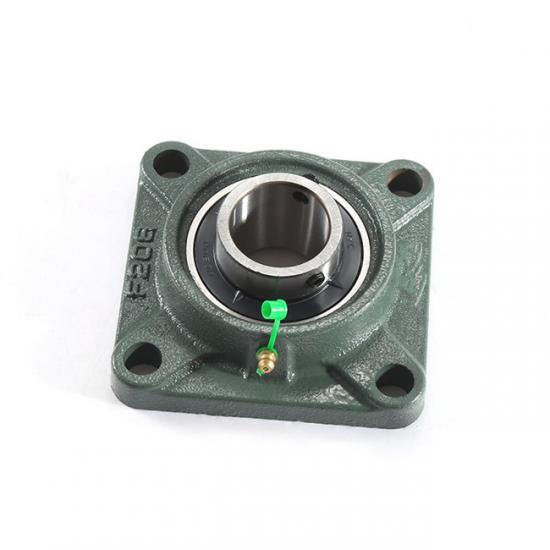

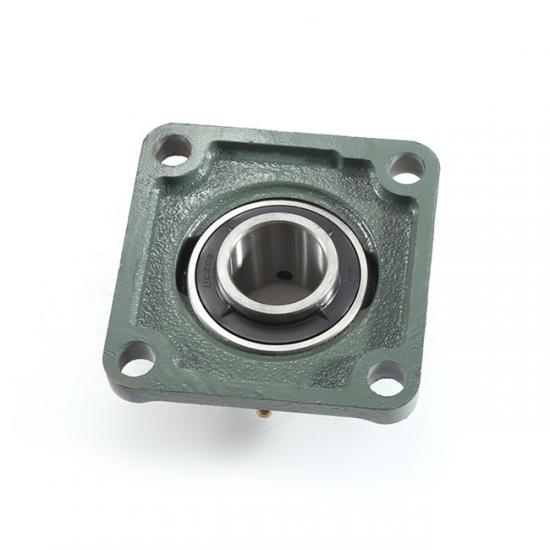

UCF208 Chrome Steel Screw Lock Square Flange Pillow Block Bearing

40 mm UCF208  Bearing with inner standard size 40mm ,four-bolt flanged housing units ,square design ,cast iron ,grub scress in inner ring ,RSR seal

  • item no.:

    UCF208
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    NSK
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

Pillow block bearing consist of outer spherical ball bearing and cast iron  bearing seat. The internal structure of outer spherical ball bearing  , in the outer ring, outer ring has a truncated spherical outside surface, with that surface ,this bearing can be adjust to match with different  spherical surface of the bearing.Usually these bearings have a space between the inner hole and shaft, with the top silk, eccentric sleeve or be a set of bearing inner ring is fixed on the shaft, and with the axis of rotation.

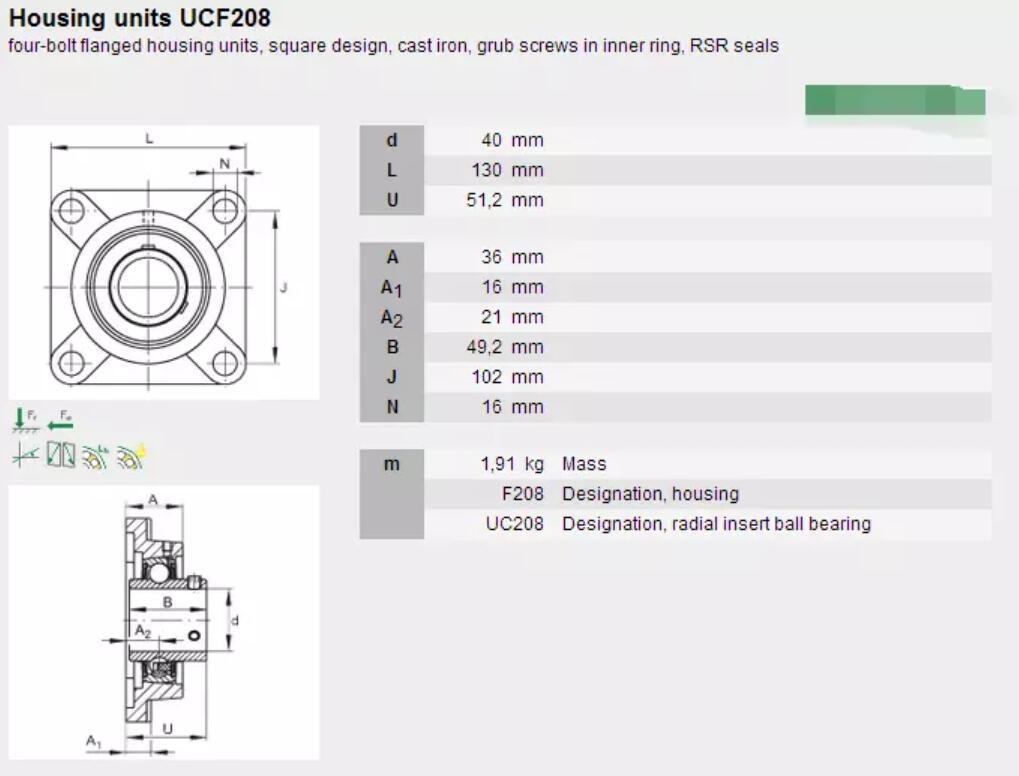

Pillow Bearing UCF208 Specification :

Bearing UCF208 with four -bolt flanged housing units,square design,cast iron material ,with grub screw in inner ring ,RSR seals.

d 40mm
L 130mm
U
51.2mm
Weight 1.91kg
Housing F208
Radial insert ball bearing UC208

bearing block f208



Pillow Block Bearings With Housing Type:

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).


1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC208 with pillow block P series,the new bearing nuit is UCP208. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT208,UCF208,UCFL208.


pillow block bearings with housing


Cheapest Bearing With Housing UCF Bearing Number :

Model NO.
Length(mm)
Width(mm)
Thickness(mm)
Weight(kg)
UCF201
127
38
60.7
0.76
UCF202
127
38
60.7
0.74
UCF203
127
38
60.7
0.72
UCF204
127
38
64
0.7
UCF205
140
38
69.5
0.76
UCF206
160
44
82
1.25
UCF207
167
48
92
1.55
UCF208
180
52
98
1.9
UCF209
189
54
106
2.2
UCF210
204
57
112
2.75
UCF211
217
60
125
3.3
UCF212
238
66
137
4.7
UCF213
262
70
149
5.6
UCF214
266
72
155
6.6
UCF215
274
74
162
7.3
UCF216
292
78
174
9

We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.



Pillow Block Bearing Applications:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

pillow block bearing application


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
