Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08

new products

Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08

Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing  ME08 With Size 40*145*43.8mm ,The Material Are With Cast Iron And Chrome Steel GCR15

  • item no.:

    PME40-XL-N
  • lead time:

    7 days
  • shipping port:

    Guangzhou,Shanghai,Ningbo
  • MOQ:

    1
products details

Housing units are the parts  ready-to-fit ,they are consist of cast iron  housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is  for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.


Germany Original High Qulaity Housing Units PME40-XL-N Introduction :

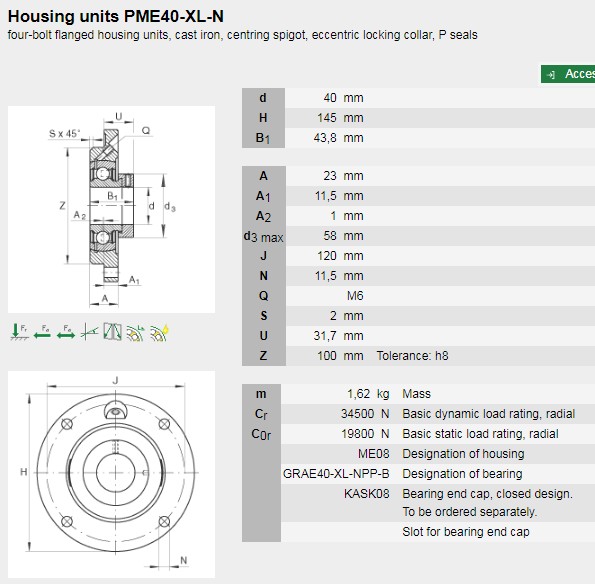

Bearing Unit :PME40-XL-N

Type : Four-bolt flanged housing units

Housing :ME08

Match insert ball bearing : INA GRAE40-XL-NPP-B

Size :40*145*43.8mm

Material : housing with cast iron ,inset ball bearing with Chrome steel

INA Housing Unit


We Can Provide High Qulity Housing Unit PME Number For Your Reference :

Housing Units No.: d(mm) H(mm) B1(mm)
PME20-XL-N  20 100 31
PME25-XL-N  25 115 31
PME30-XL-N  30 125 35.8
PME35-XL-N  35 135 39
PME40-XL-N  40 145 43.8
PME45-XL 45 155 43.8
PME50-XL-N  50 165 43.8
PME55-XL 55 185 48.4
PME60-XL-N  60 195 53.1


Bearing Unit ,Bearing Housing ,And Radial Insert Ball Beaing March ,With This New Bearing Unit , They Can Widely Use In Different Application :

Units Housing  Radial insert ball bearing
PME20-N GG.ME04-N GRAE20-NPP-B
PME20-N GG.ME04-N GE20-KRR-B
TME20-N GG.ME04-N GE20-KTT-B
PMEY20-N GG.ME04-N GAY20-NPP-B
RMEY20-N GG.ME04-N GYE20-KRR-B
PME25-N GG.ME05-N GRAE25-NPP-B
PME25-N GG.ME05-N GE25-KRR-B
TME25-N GG.ME05-N GE25-KTT-B
PMEY25-N GG.ME05-N GAY25-NPP-B
RME25-N GG.ME05-N GYE25-KRR-B
PME30-N GG.ME06-N GRAE30-NPP-B
PME30-N GG.ME06-N GE30-KRR-B
TME30-N GG.ME06-N GE30-KTT-B
PMEY30-N GG.ME06-N GAY30-NPP-B
RME30-N GG.ME06-N GYE30-KRR-B
PME35-N GG.ME07-N GRAE35-NPP-B
PME35-N GG.ME07-N GE35-KRR-B
TME35-N GG.ME07-N GE35-KTT-B
PMEY35-N GG.ME07-N GAY35-NPP-B
RME35-N GG.ME07-N GYE35-KRR-B
PME40-N GG.ME08-N GRAE40-NPP-B
PME40-N GG.ME08-N GE40-KRR-B

We also can produe  Insert Ball Bearing spherical outer ring,location by eccentric locking collar,P seals on both sidesas below series :


GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB

Bearing Series For shaft diameter in mm Features
GRAE..-NPP-B 12-60mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RAE..-NPP-B 12-50mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B 20-30mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RA..-NPP-B 5/8''-1 1/2'' Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B 17-120 Spherical outer ring,location by eccentric locking collar ,R seals on both sides




Application Of  Bearing Housing  :

Bearing Unt can be widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.


1. With high precision INA Bearing Unit can be use in  Auto wheel hub, Auto engine, Auto axle.

2. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator

3.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery

4. Steel mill machinery, Oil field machinery, Motorship machinery

5. Hardware tool, Electric power tool, Household appliance industry

6. Electronic toys, Fitness equipment, Building machinery

7. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump


INA Bearing Application
