NSK 1 inch Insert Mounted Bearings UC205-16

new products

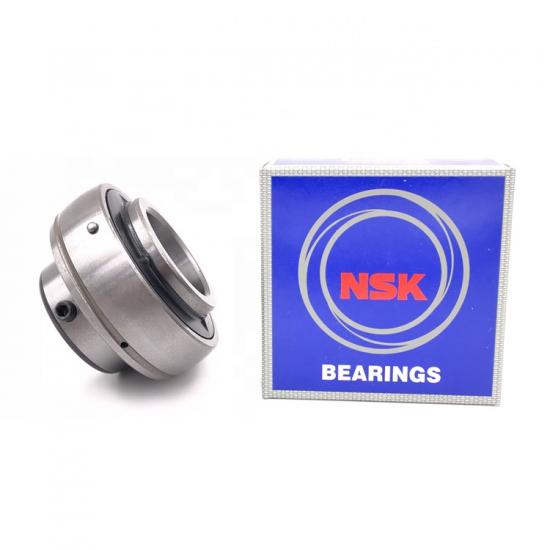

NSK 1 inch Insert Mounted Bearings UC205-16

Model Number:UC205-16 Bore Size:1 inch Structure:Insert ball bearings Material:AISI 52100 steel,heat treated,HRC58-64 OD:52mm Weight range:0.19kg Load type:Standard Duty Locking style:Setscrew locking

  • item no.:

    UC205-16
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    NSK
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    100
products details


Insert Ball Bearing UC205-16 Introduction :


Model UC205-16
Bore Diameter 25.4mm
Material Gcr15 Chrome steel +Cast Iron
Vibration Z1V1 Z2V2 Z3V3 Z4V4
Feature Long life, low noise
Quality

ISO9001 2000 Standard;CE

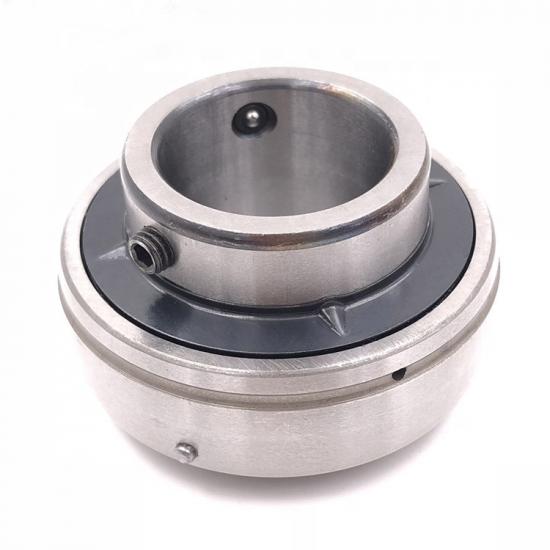

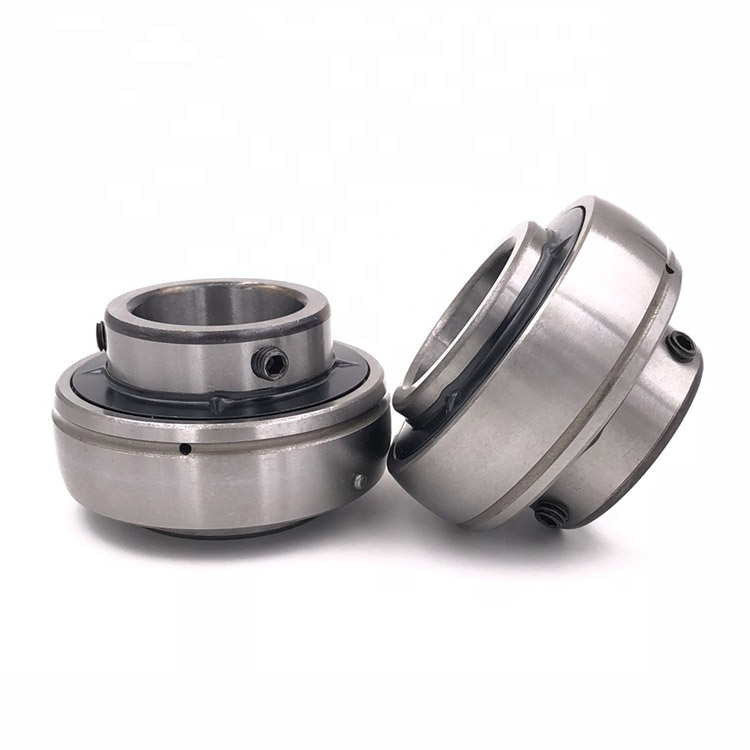

insert ball bearing UC205-16


We Can Produce Other Insert Ball Bearing As Below :

Bearing
Number
Bore Dia.of Bearing  Dimensions(mm) Weight  (Kg)
d D Bi
mm in mm mm
UC204 20   47 31.00 0.16
UC204/12     3/4  47 31.00 0.16
UC205 25   52 34.10 0.20
UC205/14     7/8  52 34.10 0.23
UC205/15    15/16 52 34.10 0.21
UC205/16   52 34.10 0.20
UC206 30   62 38.10 0.32
UC206/18   1~1/8 62 38.10 0.34
UC206/19   1~3/16 62 38.10 0.32
UC206/20   1~1/4 62 38.10 0.32
UC207 35   72 42.90 0.48
UC207/20   1~1/4 72 42.90 0.54
UC207/21   1~1/16 72 42.90 0.51
UC207/22   1~3/8 72 42.90 0.48
UC207/23   1~7/16 72 42.90 0.45


NSK Insert Bearing Application :

UC205-16 bearings are widely used for agriculture,light textile,mining,food &beverage,pharmaceutical,chemical processing,printing,dyeing,airport,air-conditioning and various kinds of conveying and rolling devices.
