Pillow Block Bearing

new products

UC201 Radial Insert Ball Bearing

12x47x31mm UC201 insert ball bearing with set screw sealed and pre-lubricated, spherical outer to insert in housing are produce Chrome steel Gcr15 with high super quality we have this bearings in sotck now .

  • item no.:

    UC201
  • lead time:

    3 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou,Shanghai
  • MOQ:

    100
products details

UC201 Bearing Technical Data:

Inside Diameter :12mm

Outside Diameter:47mm

Width :17mm

Bi : 31

Rows Of Balls:single row

Shaft Fastening:Grub Screws

Grub Screw: M6

Extended Inner Ring:both sides

Seal: 2-peace sealing system

Ring Material:Chrome Steel

Rolling Element Material Chrome Steel

Cage Material: Sheet Steel

Max. Tightening Torques (Nm) For Bearing Insert:5.5

Product weight: 0,210 Kg

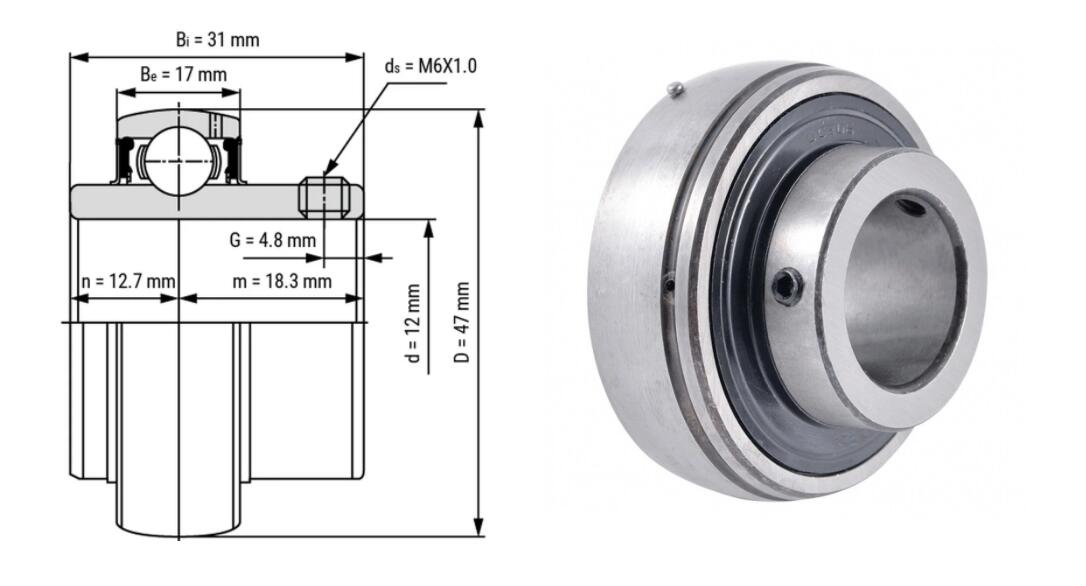

UC201 BEARING SIZE

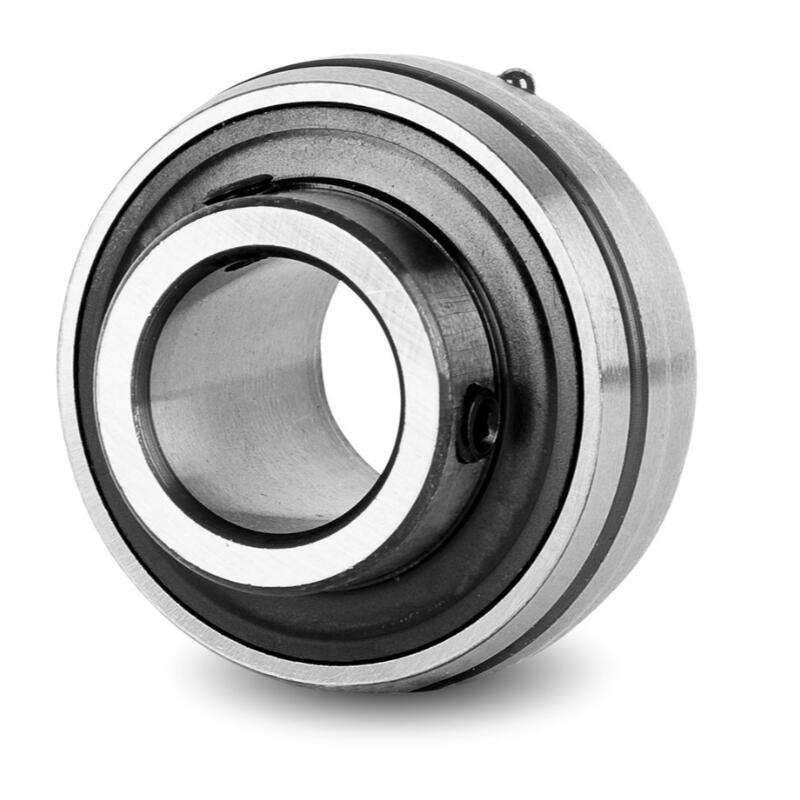

Bearing Picture:

UC 201 Bearing


We can produce other UC bearings ,for more infomations pls contact us free at info@bearings-factory.com

Typ Shaft-Ø Dimensions in mm Weight
in mm D Bi Be n m G ds (kg)
UC201 12 47 31 17 12,7 18,3 4,8 M6X1.0 0,21
UC202 15 47 31 17 12,7 18,3 4,8 M6X1.0 0,19
UC203 17 47 31 17 12,7 18,3 4,8 M6X1.0 0,18
UC204 20 47 31 17 12,7 18,3 4,8 M6X1.0 0,16
UC205 25 52 34 17 14,3 19,7 5,5 M6X1.0 0,2
UC206 30 62 38 19 15,9 22,2 6 M6X1.0 0,32
UC207 35 72 42 20 17,5 25,4 6,5 M8X1.0 0,46
UC208 40 80 49 21 19 30,2 8 M8X1.0 0,62
UC209 45 85 49 22 19 30,2 8 M8X1.0 0,68
UC210 50 90 51,6 24 19 32,6 9 M10X1.25 0,8
UC211 55 100 55,6 25 22,2 33,4 9 M10X1.25 1,11
UC212 60 110 65,1 27 25,4 39,7 10,5 M10X1.25 1,54
UC213 65 120 65,1 28 25,4 39,7 12 M12X1.5 1,86
