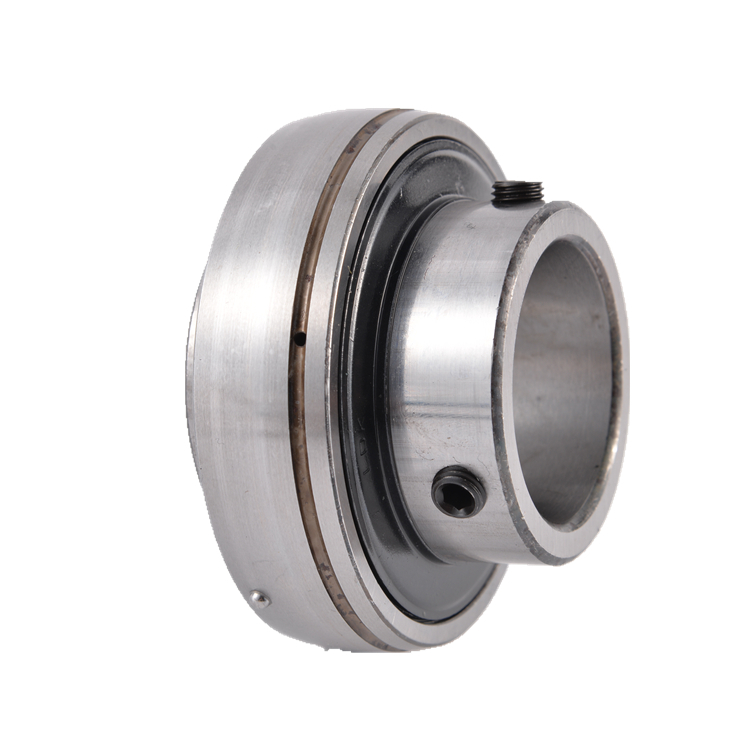

UC203 Radial Insert Ball Bearings

17*47*31mm UC203 insert ball bearings are produced with Chrome steel Gcr15 ,the bearings are with spherical outer rings,we have this bearings in stock now .

item no.:
UC203
lead time:
3 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou,Shanghai
MOQ:
100

products details

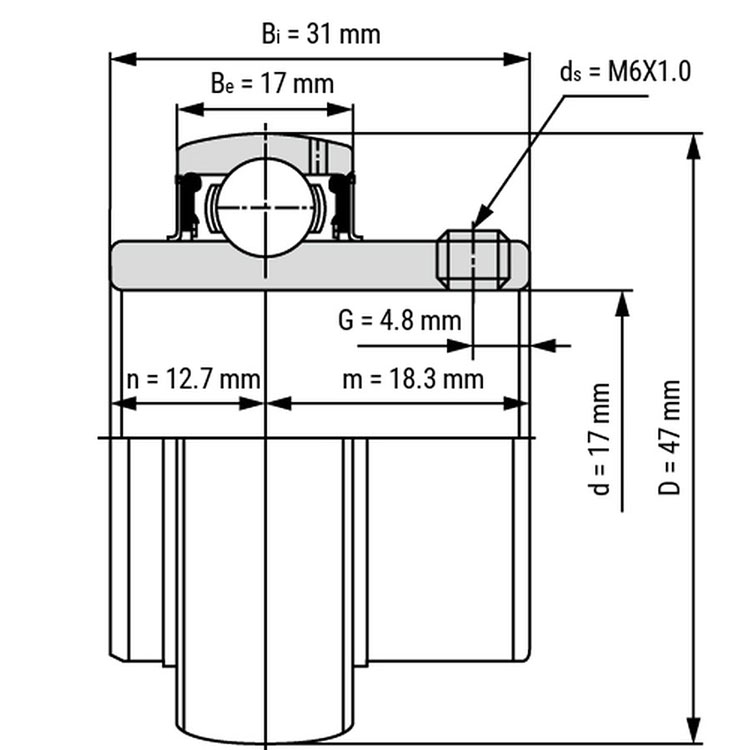

UC203 Insert Bearing Description :

Bearing No.: UC203

Innner Diamater:17mm

Outer Diameter :47mm

Inner Width :31mm

Material:Chrome steel Gcr15

Dynamic load rating Cr: 56937 N

Static load rating Cor: 29358 N

closure:2 PCS rubber seal ,or metal shields .

We also can produce with UC203-11 bearing with inner diameter 11/16".

We also can produce insert ballbearings with black treatments can work at high temperature.

UC203 BEARINGS
