Pillow Block Bearing

new products

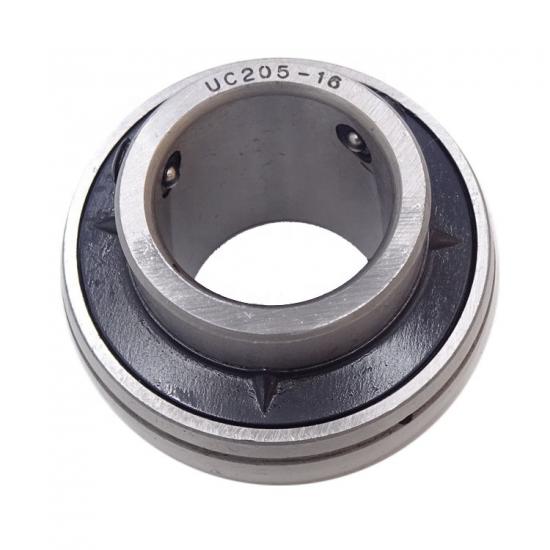

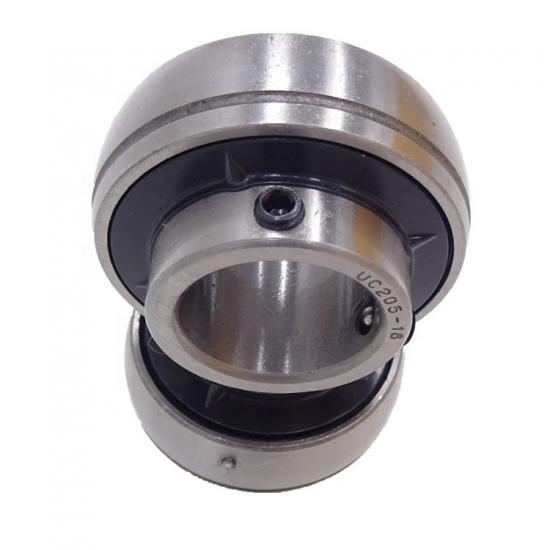

UC205-16 Insert Ball Bearing

1.0000 inner diameter*  2.0472 in Outer diameter *1.3390 Width UC205-16 insert bearings are produce with round bore ,and set screw,we have this bearings in stock now .

  • item no.:

    UC205-16
  • lead time:

    3 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou,Shanghai
  • MOQ:

    100
products details





1"  UC205-16 Mounted Bearing Description:


Round bore type

Inner Diameter: 1" inch(25.4mm)

Outer Diameter: 52mm

Inner Ring Width: 34.1mm

Outer Ring Width: 16mm

Material :Chrome steel Gcr15


Dynamic load rating Cr: 13967 N

Static load rating Cor: 7784 N


OEM Number :VS-216,INS-SC-100,GY1100KRRB,YW250-1,UC205-16,UG216NL,UC205-100D1,YAR205-100,2-1 INSERT




We can produce bearings with UC205,UC205-13,UC205-14,UC205-15,UC-205-16.

Mounted Units Distributor


related products
1Pillow Block Bearing
1"Pillow Block Bearing Housing UCP205-16 With Cast Iron

UCP205-16 with inner standard size 1 inch ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

NSK 1 inch Bearing
NSK 1 inch Insert Mounted Bearings UC205-16

Model Number:UC205-16 Bore Size:1 inch Structure:Insert ball bearings Material:AISI 52100 steel,heat treated,HRC58-64 OD:52mm Weight range:0.19kg Load type:Standard Duty Locking style:Setscrew locking

UC204-20 Insert Bearing
NSK 20mm UC204 Insert Ball Bearing

UC204-20 bearing with 20mm bore Insert Set Screw Ball Bearing With Lubricating Groove Access, pre-lubricated, Spherical Outer to Insert in Housing

INA Pillow Block Bearings
INA Pillow Block Bearings PME25-XL-N Bearing Block ME05 GRAE25-XL-NPP-B

Germany INA Housing Units PME25-XL-N with radial insert ball bearing GRAE25-XL-NPP-B with size 25*115*31mm ,the housing material is Cast iron ,and the insert bearing material is Chrome steel

Housing Units
Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08

Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing  ME08 With Size 40*145*43.8mm ,The Material Are With Cast Iron And Chrome Steel GCR15

UCP204 Bearing Housing
UCP204 Cast Iron Pillow Block Bearing Housing

UCP204 with inner standard size 20mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.
