Pillow Block Bearing

new products

UCFL211 FYH Pillow Block Bearing

FYH bearig unit uct205 with shaft size 25mm ,bolt flanged housing units ,round design ,cast iron ,2 grub scress in inner ring ,RSR seal

  • item no.:

    UCFL211
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    FYH
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details


Bearing Units UCFL211 is consist of the insert ball bearing and house. The housing are with cast iron material,and the bearing are main with Chrome steel Gcr15.  The bearing unit are with compact design ,they can alignwith easily during operation and can be conveniently mounted or dismounted. When mounted in appropriate housings to form housed bearing units, they are able tocompensate for initial errors of alignment.


We can provide different famous brand pillow block bearing housing Asahi, KOYO, NSK, NTN and more famous brand pillow  Welcome your enquiry .

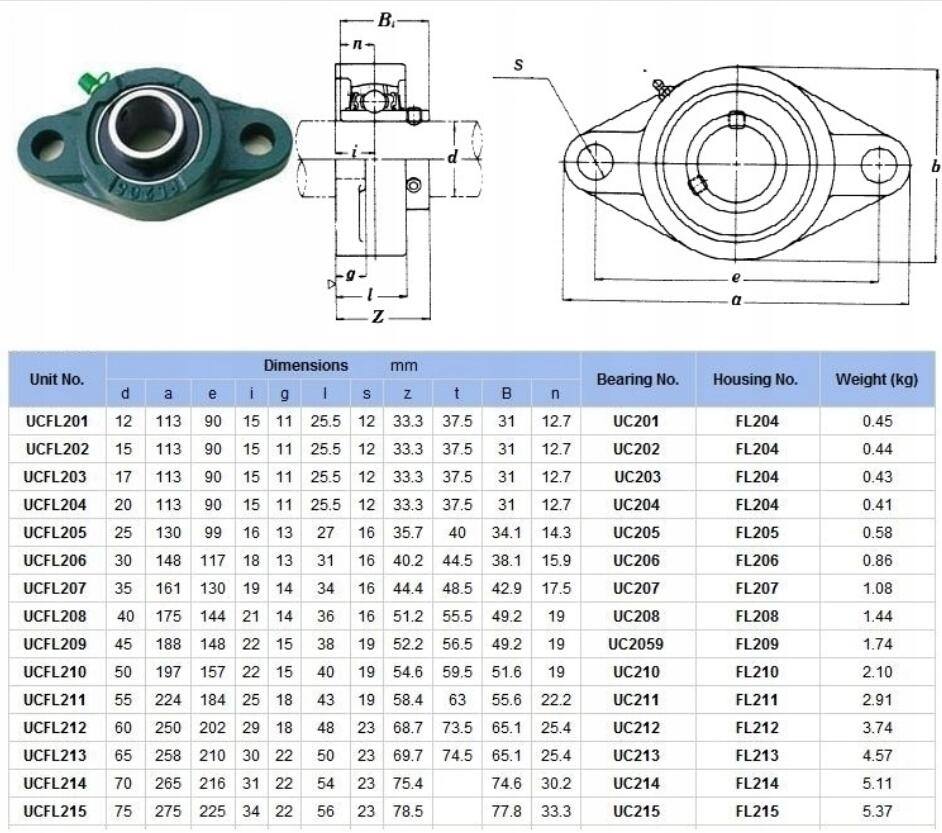

Spec Of FYH Pillow Block Bearing UCFL211:


Unit Number: UCFL 211

Brand: FYH

Size :55*224*184mm

Bearing No.: UC 211

Housing No.: FL 211

Weight (kg.): 3.289 kg

Here Is Other Bearing Number :


bearing number

High Quality Pillow Block Bearing Features:

1.Shaft fastening: with 2 grub screws, inner ring extended on both sides

2.Material: Cast Iron with AISI 52100 chrome steel

3.It is suitable for high loads and speeds, also in case of alternating direction of rotation

4.Grease: Chevron SRI-2  or  food industry FM 222  or can be as your requirement

5.Working Temperature range: -20°C to +120°C degree



We Are Professional Bearing Housing Manufacturer In China ,Below Here Are Our Housing Mounted Bearing Types:

1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


1)UCP series:

UCP201, UCP202, UCP203, UCP204, UCP205, UCP206, UCP207, UCP208, UCP209, UCP210, UCP211, UCP212, UCP213, UCP214, UCP215, UCP216, UCP217, UCP218,

UCP305, UCP306, UCP307, UCP308, UCP309, UCP310, UCP311, UCP312, UCP313, UCP314,  UCP315, UCP316, UCP317, UCP318, UCP319


2)UCF series:

UCF201, UCF202, UCF203, UCF204, UCF205, UCF206, UCF207, UCF208, UCF209, UCF210, UCF211, UCF212, UCF213, UCF214, UCF215, UCF216, UCF217, UCF218,

UCF305, UCF306, UCF307, UCF308, UCF309, UCF310, UCF311, UCF312, UCF313, UCF314,  UCF315, UCF316, UCF317, UCF318, UCF319


3)UCFL series:

UCFL201, UCFL202, UCFL203, UCFL204, UCFL205, UCFL206, UCFL207, UCFL208, UCFL209, UCFL210, UCFL211, UCFL212, UCFL213, UCFL214, UCFL215, UCFL216, UCFL217, UCFL218,

UCFL305, UCFL306, UCFL307, UCFL308, UCFL309, UCFL310, UCFL311, UCFL312, UCFL313, UCFL314, UCFL315, UCFL316, UCFL317, UCFL318, UCFL319


4)UCFC series:

UCFC201, UCFC202, UCFC203, UCFC204, UCFC205, UCFC206, UCFC207, UCFC208, UCFC209, UCFC210, UCFC211, UCFC212, UCFC213, UCFC214, UCFC215, UCFC216, UCFC217, UCFC218


5) UC series :

UC201, UC202, UC203, UC204, UC205, UC206, UC207, UC208, UC209, UC210, UC211, UC212, UC213


6) UCPA series:

UCPA201, UCPA202, UCPA203, UCPA204, UCPA205, UCPA206, UCPA207, UCPA208, UCPA209, UCPA210, UCPA211, UCPA212, UCPA213


pillow block bearings and shaft

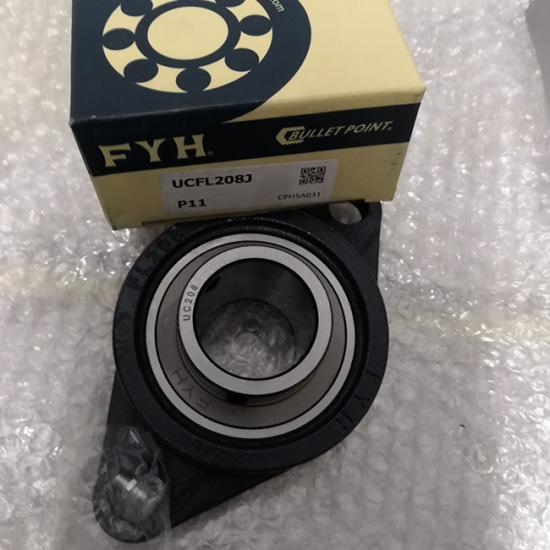

Here Is Bearing Housing Photos For Your Reference:


bearing housing photos



Use Of Pillow Block Bearing :

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

bearing mount use


We are professional bearing housing manufacturer, for more bearing such as bearing UCFL201 UCFL202 UCFL203 UCFL204 UCFL205 UCFL206 UCFL207 UCFL208 UCFL209,welcome send us enquiry feel ,we will provide best price and service for you.
