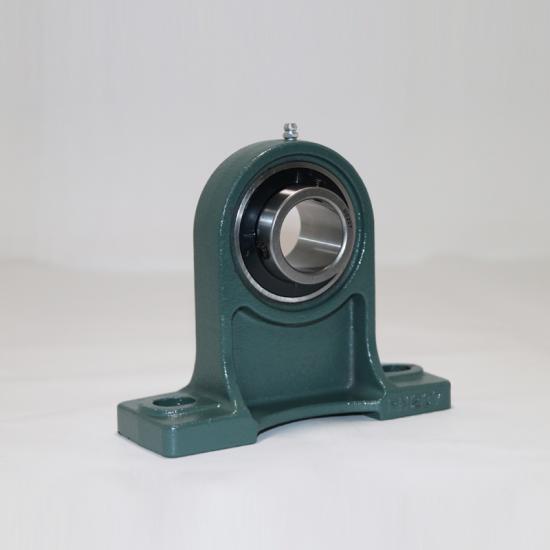

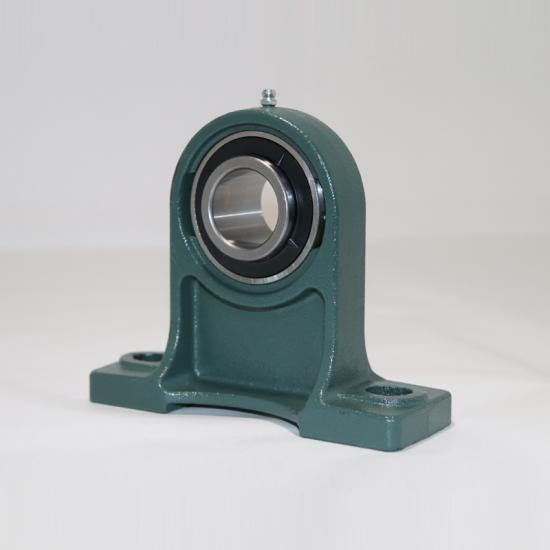

Heavy Duty Conveyors Cast Iron Block Bearing Housing UCPH208

Pillow Block Type Bearing With OEM Brand . The Model Number is UCPH208 With Material:Chrome Steel And Housing material Cast Iron HT200 Can Be Used In Conveyors

  • item no.:

    UCPH208
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    NSK
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

Pillow block bearing consist of outer spherical ball bearing and cast iron  bearing seat. The internal structure of outer spherical ball bearing  , in the outer ring, outer ring has a truncated spherical outside surface, with that surface ,this bearing can be adjust to match with different  spherical surface of the bearing.Usually these bearings have a space between the inner hole and shaft, with the top silk, eccentric sleeve or be a set of bearing inner ring is fixed on the shaft, and with the axis of rotation.


Bearing Housing UCPH208 Specification :


Product name

 UCPH208 pillow block bearing

Brand

 HGF,OEM

d(mm)

 40

H(mm)

 100

B(mm)

 49.2

Weight(kg)

 2.8

Material

 Chrome steel/Stainless steel

Precision rate

 P0 P6 P4 P5



Pillow Block Bearings With Housing Type:

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).


1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.

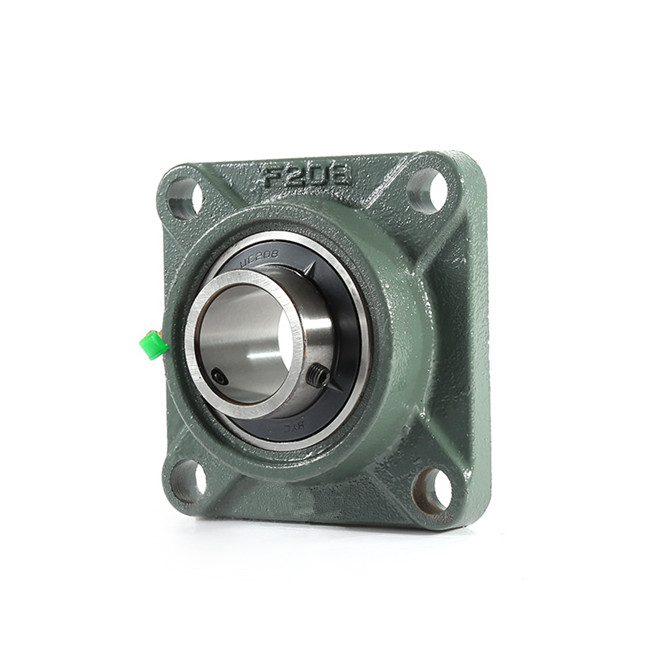

ucf bearing
ucfb bearing

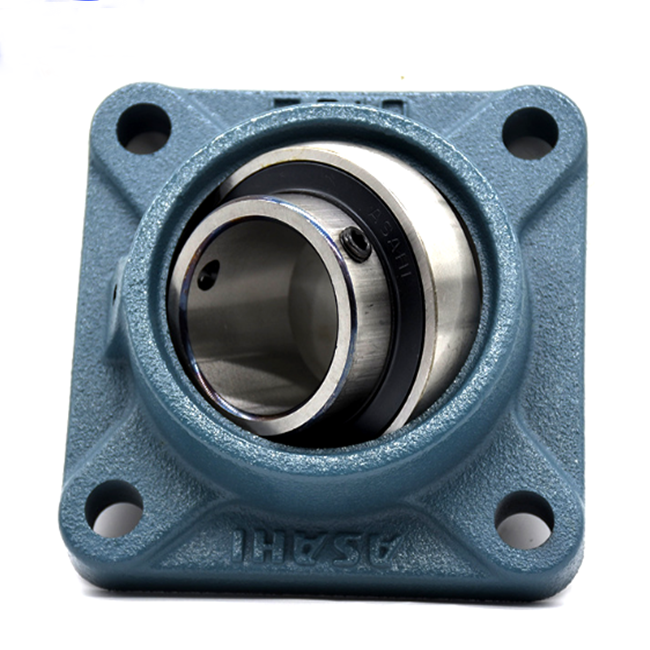

UCF BEARING

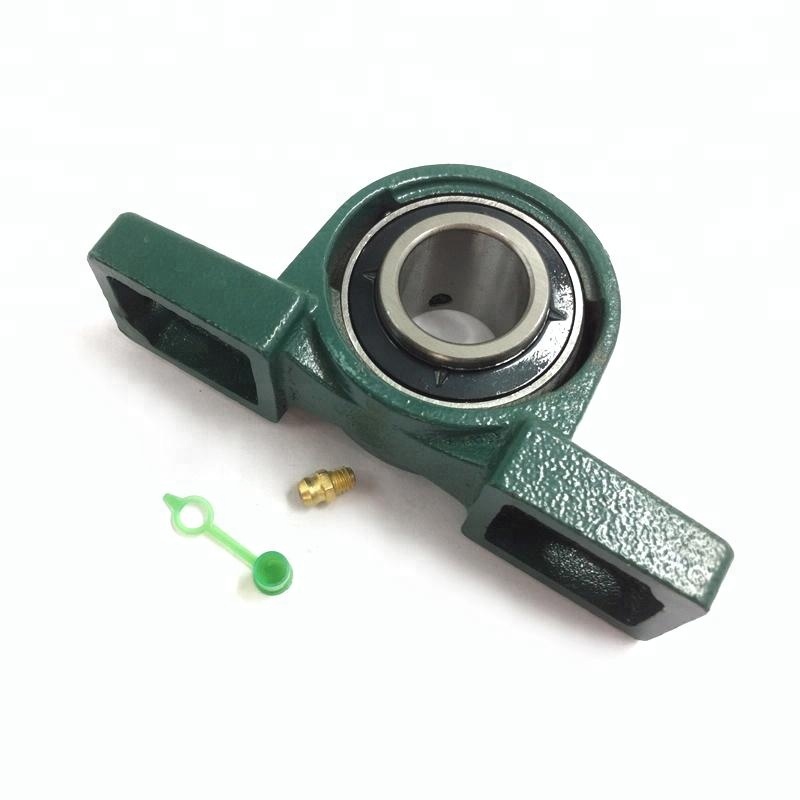

UCP BEARING

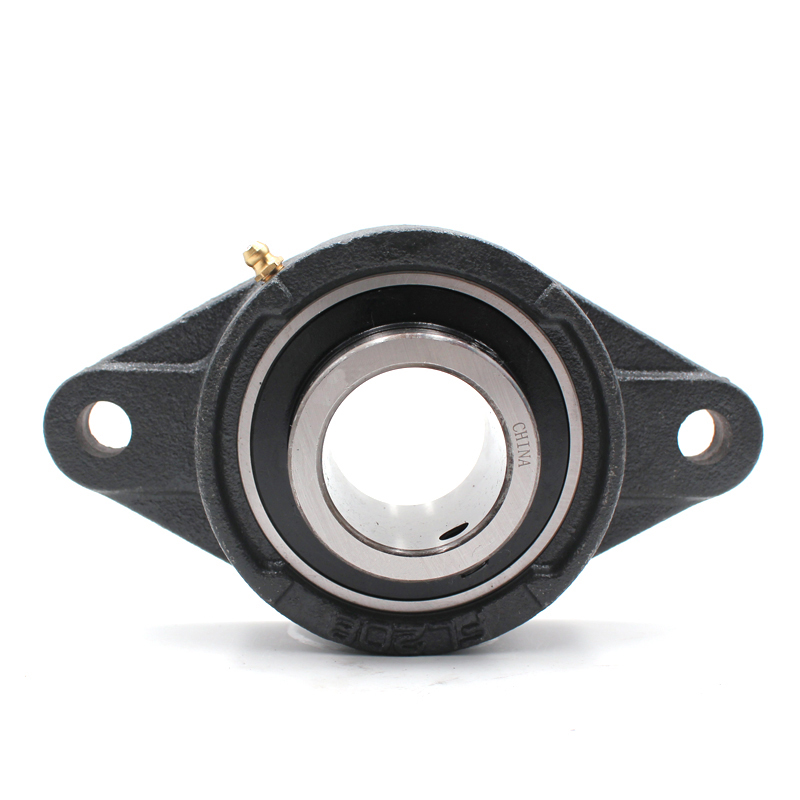

UCFL BEARING

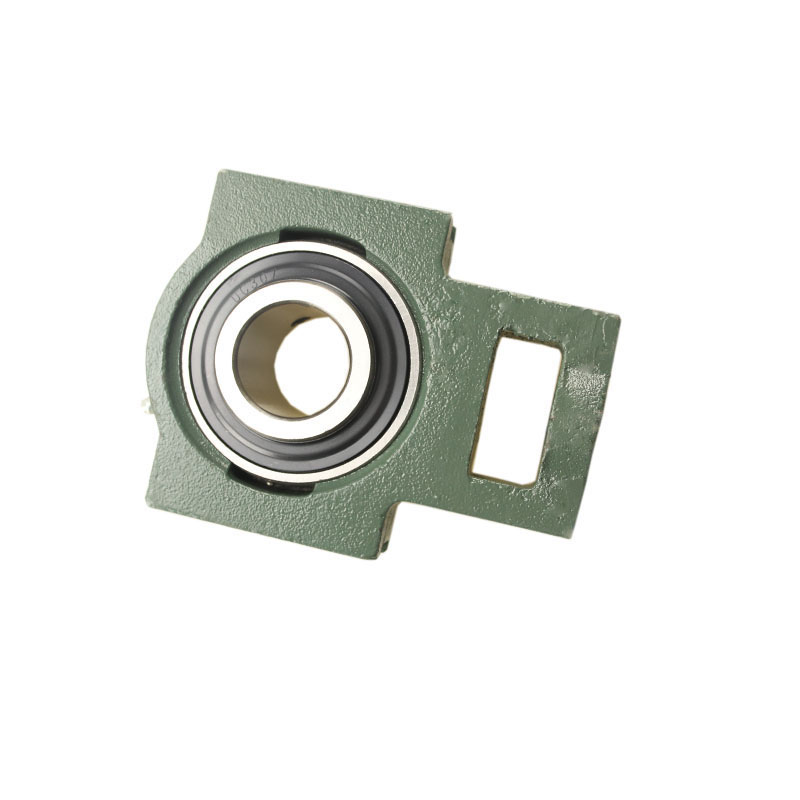

UCT BEARING


China Best Bearing With Housing Bearing Number :

New Items Longth x Width x Height (mm) weight
UCPH201 127x40x101 0.96
UCPH202 127x40x101 0.96
UCPH203 127x40x101 0.96
UCPH204 127x40x101 0.96
UCPH205 140x50x114 1.2
UCPH206 161x50x130 1.6
UCPH207 167x60x140 2.1
UCPH208 184x66x149 2.7
UCPH209 190x70x157 3.1
UCPH210 204x70x165 3.5
UCPH211 217x75x181 4.07
UCPH212 236x80x197 6.31


We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.


Pillow Block Bearing Applications:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

BEARING APPLICATION


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
