V Groove Bearing RM2zz

Chrome steel bearings RM2 W2  are with V groove ,and the  inner size  is 3/8" ,we have RM2 bearing in stock now .

  • item no.:

    RM2ZZ
  • MOQ:

    1
products details

3/8" V Groove Bearing W2 RM2 Specification :

Bearing NO.: W2 RM2 RM2ZZ RM2RS

Type: V Groove Guide Bearing

Load Rating Dynamic C: 8,260 N

Load Rating Static Co: 2,650 N

Size :9.525*30.73*11.1mm

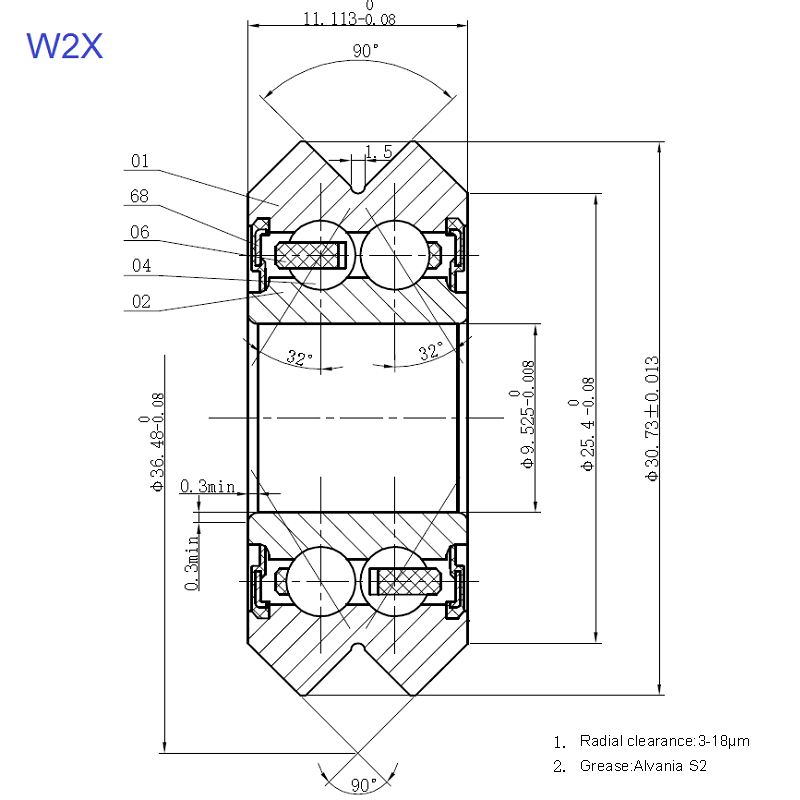

Dimensions (mm)

d

D

A

C

A1

rs

9.525 = 3/8"

30.73

18.24

11.1

12.7

0.3


V Bearings RM2 Features :


The surface of outer ring is the "W" profile formed by the two "V" with an angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a "V' profile with the angle of 90 degrees, and also the internal side face can be matched well with the cylindrical track.



RM2 BEARING

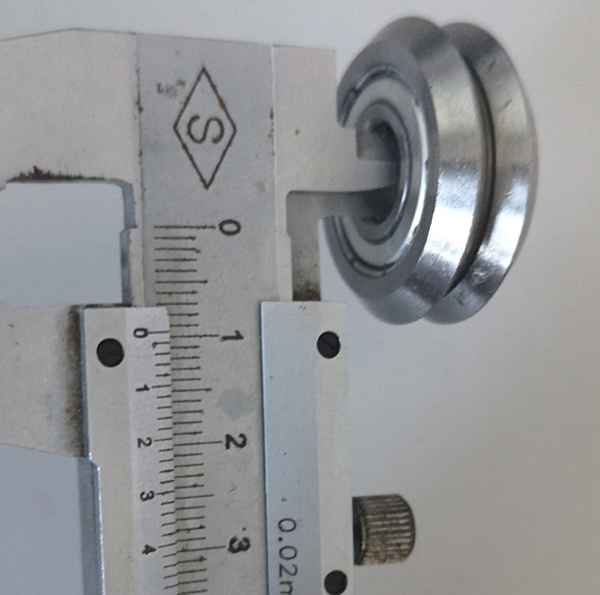

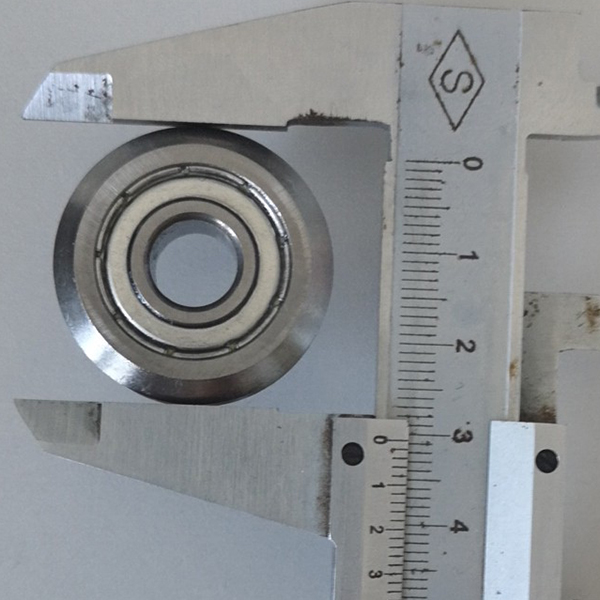

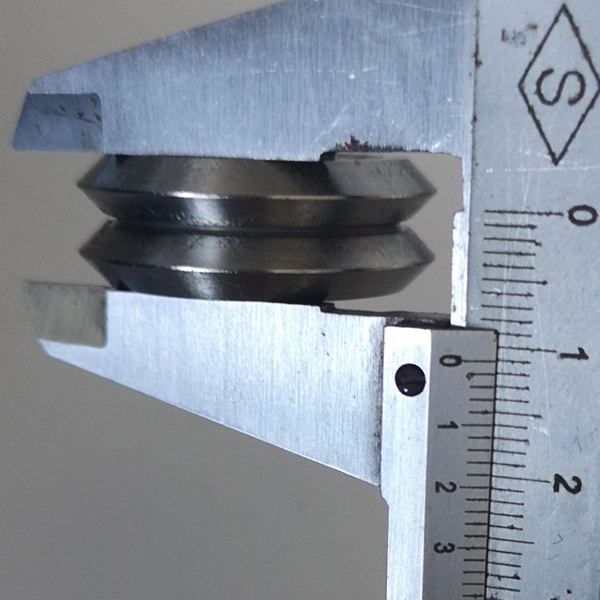

V Groove Bearing Picture :

V Groove Bearing RM2zz
3/8" V Groove Track Rollers
V Groove Ball Bearing

RM2 3/8'' Bearing Application :

Track roller Bearing W (RM, Vw) is the main component of the W-type roller guide system, widely used in industrial robots, cutting equipment, moving rails, production lines and so on.

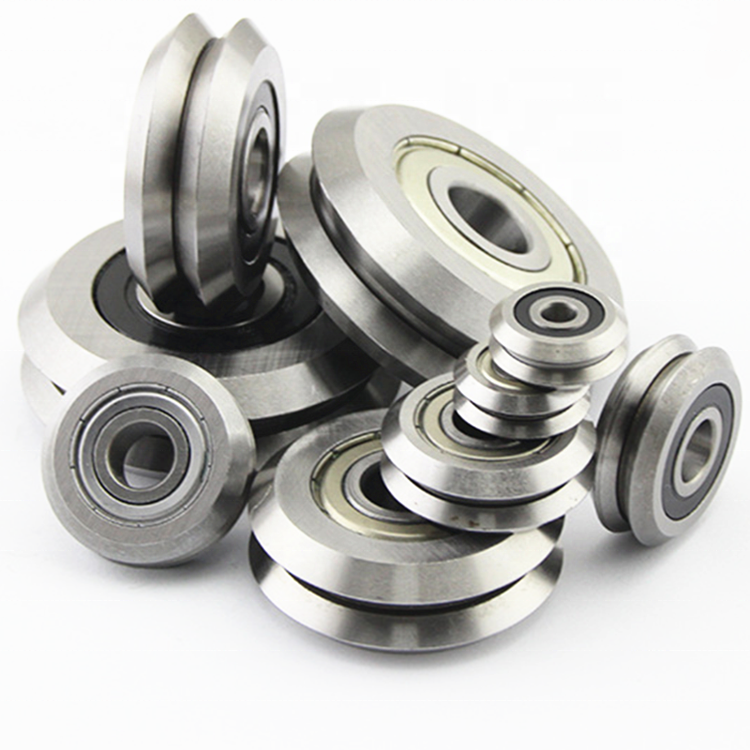

We Can Produce Other Type V Groove Ball Bearing:

Bearing No.       A1 A2 Chamfer r/min   Weight
Bore O.D. Width mm Load
mm mm mm
  D1 D B A1 A2 R/min Cw(KN) Cow(KN) Kg
W1 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
W1X 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
W2 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
W2X 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
W3 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
W3X 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
W4 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
W4X 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
RM1ZZ 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
RM1 2RS 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
RM2ZZ 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
RM2 2RS 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
RM3ZZ 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
RM3 2RS 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
RM4ZZ 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
RM4 2RS 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
W groove track roller bearings
