V Track Rollers Bearing W0 W1 W2 For Textile Machinery

new products

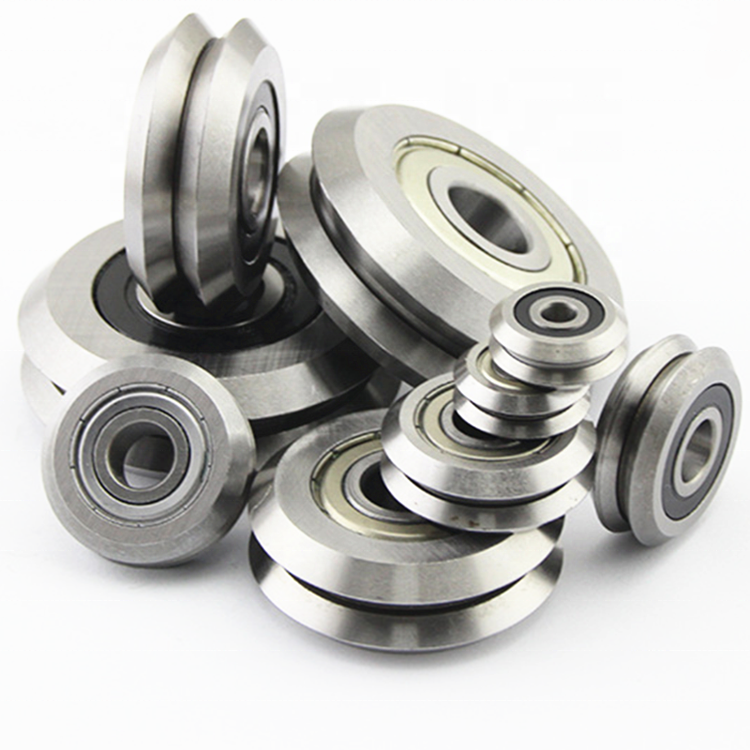

V Track Rollers Bearing W0 W1 W2 For Textile Machinery

VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: RM1) and rubber cover seal (name of X suffix, such as: RM2-2RS) two kinds If using stainless steel material, the name will be the words with the SS, such as: W3SSX

  • item no.:

    RM1 RM2 RM3 RM4
  • lead time:

    5-30 days
  • product orgin:

    China
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details
 Track roller Bearing W (RM, Vw) is the main component of the W-type roller guide system, widely used in industrial robots, cutting equipment, moving rails, production lines and so on.

● The outer ring of the roller is a W-shaped outer surface composed of two 90-degree V-shaped shapes. The inner or outer side can be used separately to fit the 90-degree inner V- or outer V-rail, or the inner side can be fitted to the cylindrical guide.

●The roller adopts the internal structure design of the double row angular contact ball bearing and the thickened outer ring, so  the roller has higher bearing capacity.


V Groove Guide Bearing Specification :

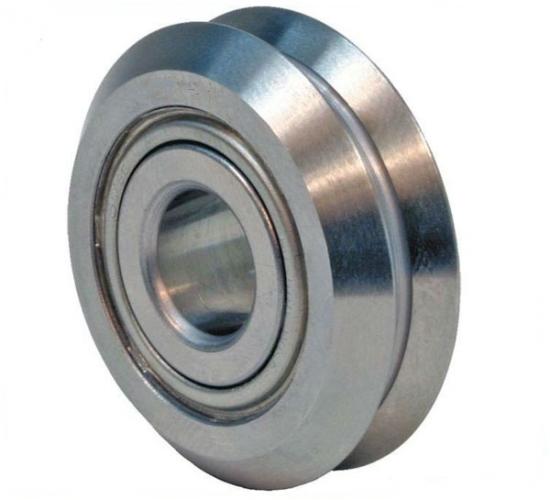

Bearing No.with metal shiels :  W1 W2 W3 W4 bearing

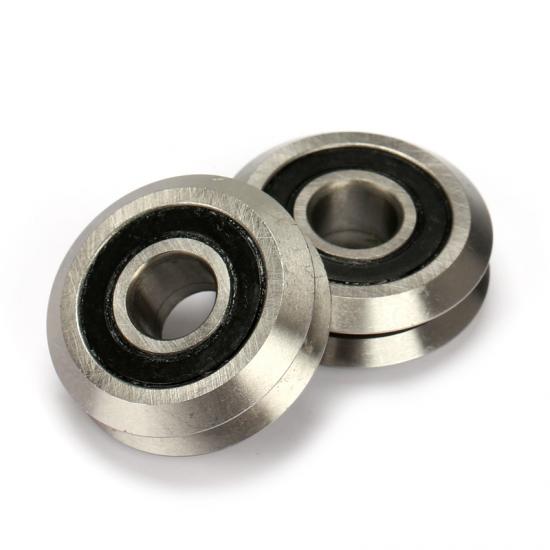

Bearing No. with rubber seals :W0X W1X  W2X  W3X W4X

Bearing with stainless steel material :W1SSX,W2SSX,W3SSX,W4SSX
Type: V Groove Guide Bearing

Material :Chrome steel Gcr15 ,Stainless steel

Bearing No.:W1 W2 Bearing  W3 Bearing  W4 Bearing
Size :

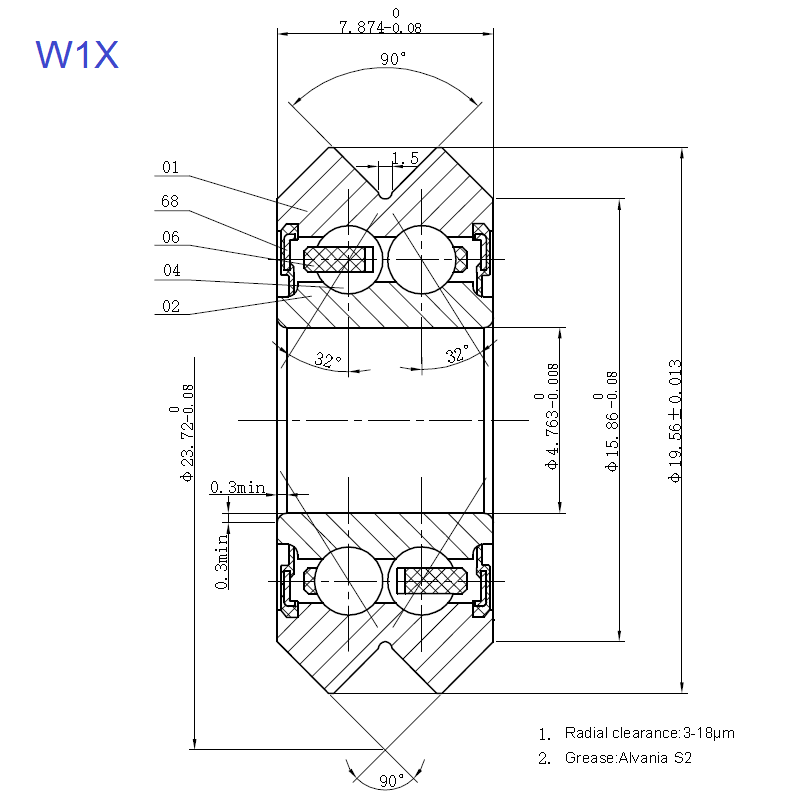

inner size 4.763 = 3/16"* outer size 19.56* height 7.87 mm

Size :

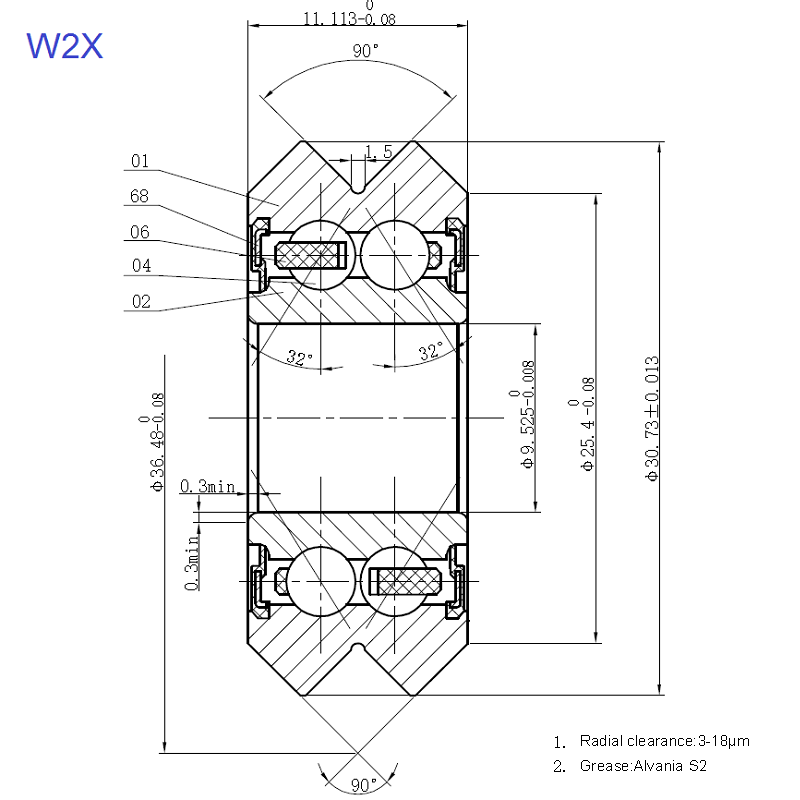

inner size9.525 = 3/8"* outer size 30.73* height 11.1 mm


Size :

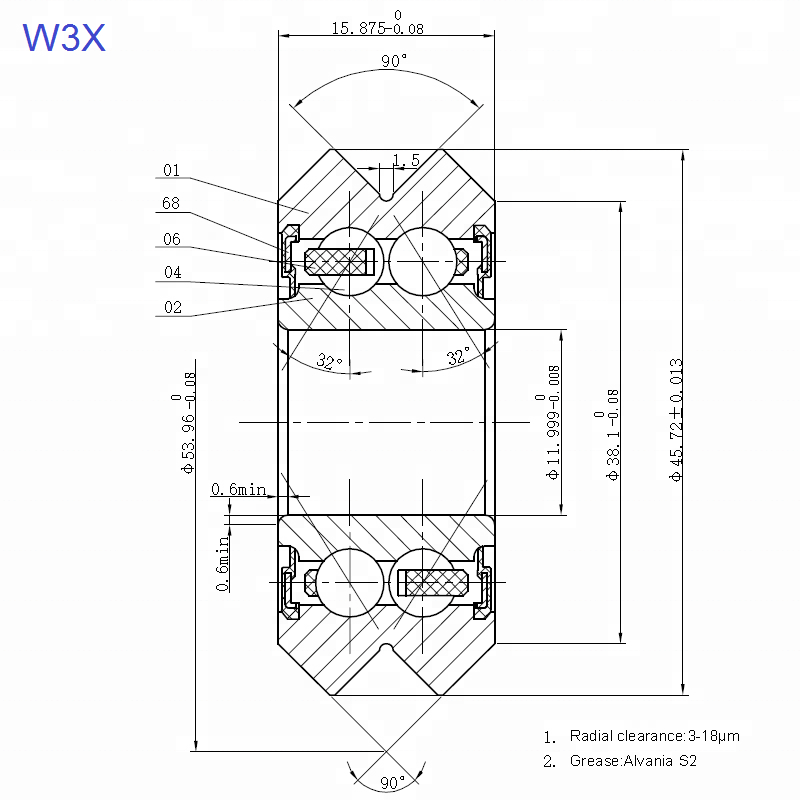

inner size12* outer size 45.72* height 15.88 mm


Size :

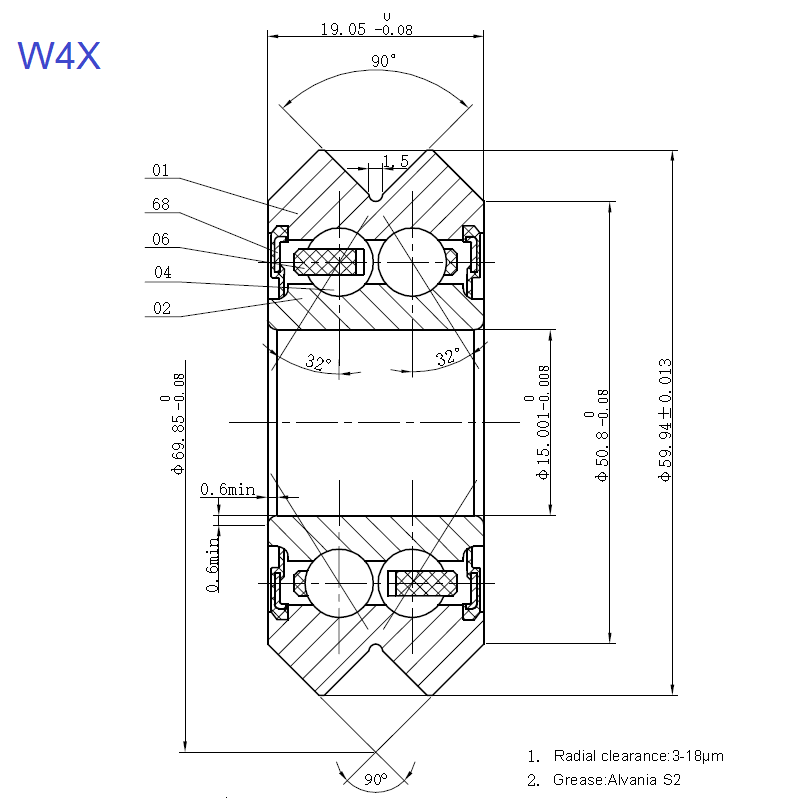

inner size15* outer size 59.94* height 19.05 mm

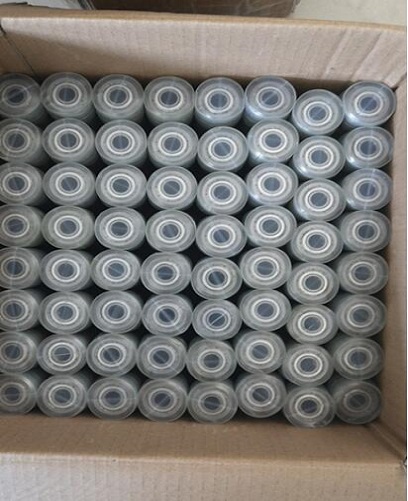

V Groove Bearing Track Packing :

Normal Packing : 10 PCS /plastic tube +standard export carton

Or as your requirements

RM2ZZ PACKING


Feature of V Groove Bearing Track Bearing :

1.Low resistance, long life and wide application

The working surface of the W (RM) series of guide rollers is finely ground and has a good roughness and an angle of 90 degrees. The W-shaped groove of the roller is parallel to the mounting plane of the inner ring. When working, the force between the roller and the guide rail is stable, and the friction resistance is small.

2. Easy to install

After the eccentric sleeve and the concentric sleeve are arranged on the guide roller, the installation is convenient, and the eccentricity of the eccentric roller can be adjusted to obtain a suitable preload.


Track Roller Bearing Catalogues:

  Bearing No. Dimensions (mm) Basic Load Ratings Mass
g
d D B A1 A2 r Cr Cor
min. Dynamic
(kN)
Static
(kN)
W1 RM1 ZZ 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 12
W1X RM1 2RS 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 12
W2 RM2 ZZ 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 40
W2X RM2 2RS 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 40
W3 RM3 ZZ 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 136
W3X RM3 2RS 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 136
W4 RM4 ZZ 15 59.94 19.05 25.4 34.93 1 14.8 8.2 285
W4X RM4 2RS 15 59.94 19.05 25.4 34.93 1 14.8 8.2 285


V groove truck roller bearing
