LR 50/8 NPPU Track Roller Bearings

new products

LR 50/8 NPPU Track Roller Bearings

8MM Bore; 24MM Roller Diameter; 11MM Roller Width; Crowned Roller Surface Profile; Sealed Enclosure; Ball Bearing-Double Row; Relubricatable LR 50/8 NPPU bearings are produce with Chrome steel Gcr15 material ,we have bearing with 563 PCS in stock ,for more informations pls contact with us now.

  • item no.:

    LR 50/8 NPPU
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

LR 50/8 NPPU Guide Roller Track Roller Bearing Introduction :


Bore diameter:0.315 Inch | 8 mm

Outer diameter: 0.945 Inch | 24 mm

Width: 0.433 Inch | 11 mm

Weight: 0.027 kg

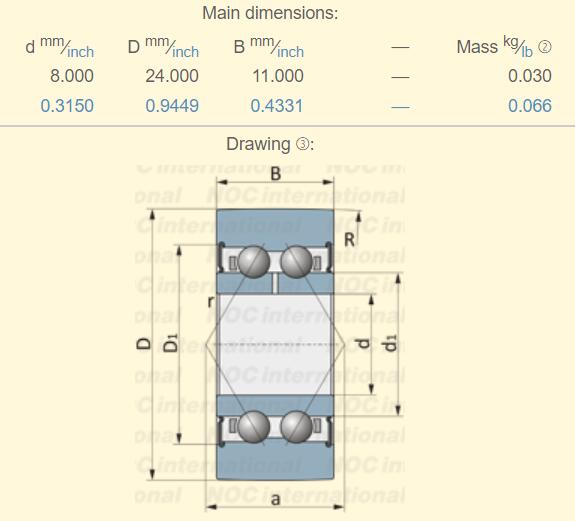

LR 50/8 NPPU Bearings Dimension

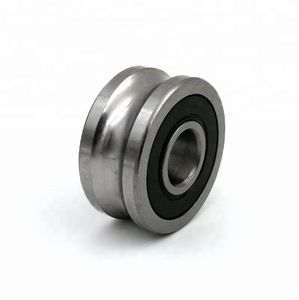

Track Rollers Bearing Picture :





We can produce other track roller for you ,below here is some bearing number for your reference :


Bearing Model  Inside Dia.(mm) Outside Dia.(mm) Thickness(mm)     Weight(KG)
LR50/5-2RSR 5 17 7 0.01
LR50/6-2RSR 6 19 9 0.02
LR50/7-2RSR 7 22 10 0.02
LR50/8-2RSR 8 24 11 0.03
LR5000-2RS 10 28 12 0.03
LR5001-2RS 12 30 12 0.03
LR5002-2RS 15 35 13 0.05
LR5003-2RS 17 40 14 0.07
LR5004-2RS 20 47 16 0.12
LR5005-2RS 25 52 16 0.15
LR5006-2RS 30 62 19 0.25
LR5007-2RS 35 68 20 0.30
