UCT204 20mm Cast Iron Take Up Bearing Unit With Set Screw Locking

new products

UCT204 20mm Cast Iron Take Up Bearing Unit With Set Screw Locking

UCT204 Cast Iron Bearing With Bearing Material Chrome Steel,The Inner Size Is 20 mm And Will Packed With Chevron SRI-2 And The Weight Is 0.73 kg

  • item no.:

    UCT204
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    ASAHI
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

 20mm Cast Iron Take Up Bearing Unit With Set Screw Locking UCT204 Introduction :

Inside Diameter (mm): 20
a (mm): 94
e (mm): 89
i (mm): 16
Bearing No.: UC 204
Housing No.: T204
Ring Material: Chrome Steel
Rolling Element Material: Chrome Steel
Cage Material: Sheet Steel
Housing Material: Cast Iron
Product weight: 0.73 Kg


MKL Cast Iron Bearing Features:

Housing: Gray Cast Iron HT200

Bearing Insert:  Chrome Steel

Bearing Seal: Standard Nitrile Rubber protected with Slinger

Slinger: Sheet Steel

Grease Nipple:  Carbon Steel - Clear Zinc Plated

Set Screw: Carbon Steel - Oxided Black

Grease: Chevron SRI-2

Working Temperature range: -20°C to +90°C  ( -4°F  to  + 248°F )

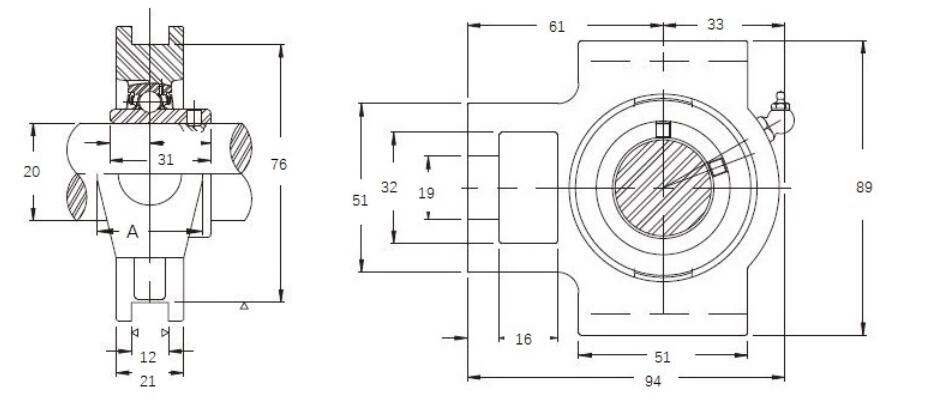

UCT200 Series Take Up Bearing Unit Number :

Unit No. Shaft Dimensions (mm)            Weight
  d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B s kg
 UCT201 12 16 10 51 32 19 51 12 76 89 94 32 21 61 31.0 12.7 0.77
 UCT202 15 16 10 51 32 19 51 12 76 89 94 32 21 61 31.0 12.7 0.76
 UCT203 17 16 10 51 32 19 51 12 76 89 94 32 21 61 31.0 12.7 0.75
 UCT204  20 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 0.73
 UCT205 25 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 0.80
 UCT206 30 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.22
 UCT207 35 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.57
 UCT208 40 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 2.31
 UCT209 45 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 2.34
 UCT210 50 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 2.47
 UCT211 55 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 3.74
 UCT212 60 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 4.58

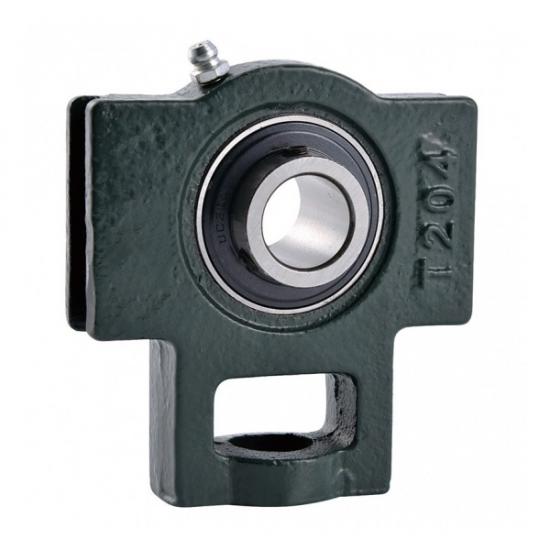

take up bearing unit
uct204 20mm bearing


We Can Produce Many High Precision Bearing House:

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

Bearing Block Types:

1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


bearing house manufacturer

We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.

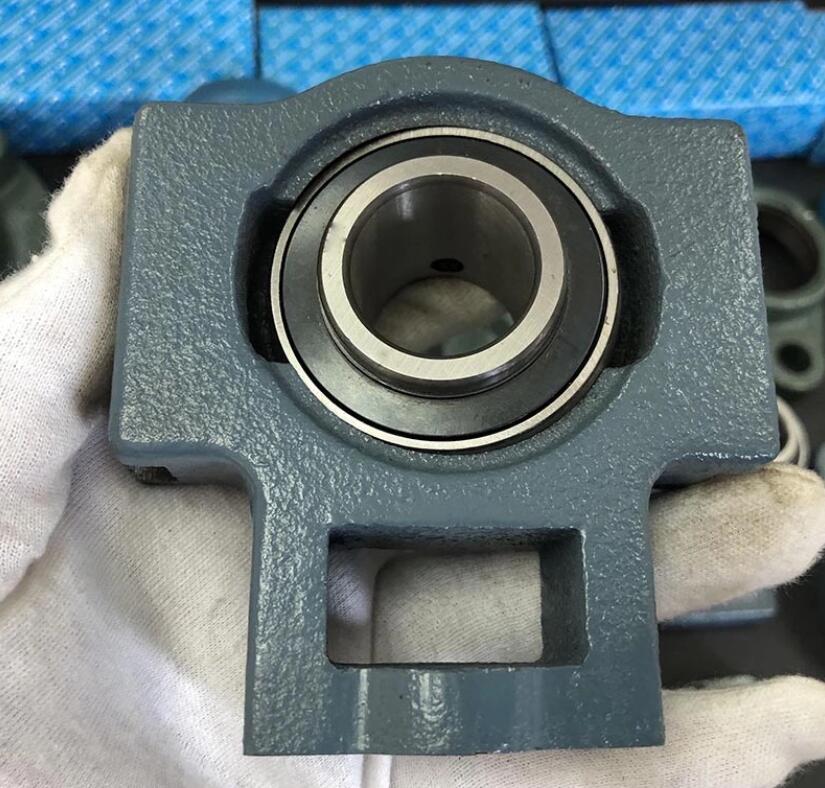

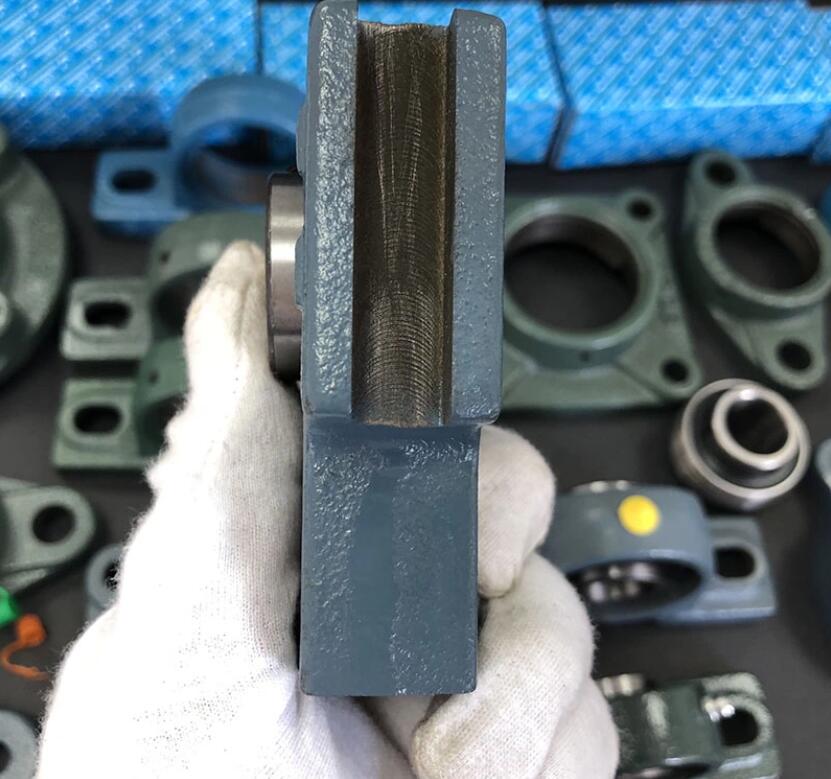

bearing housing photos


MKL Pillow Block Bearing Can Be Widely Used In:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

pillow block bearing application


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
