UC201-8 1/2" Bore Insert Bearings

new products

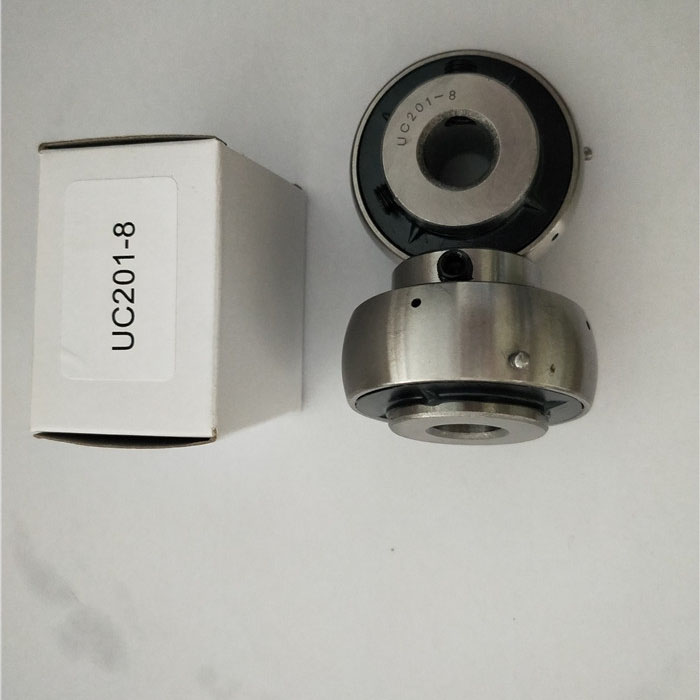

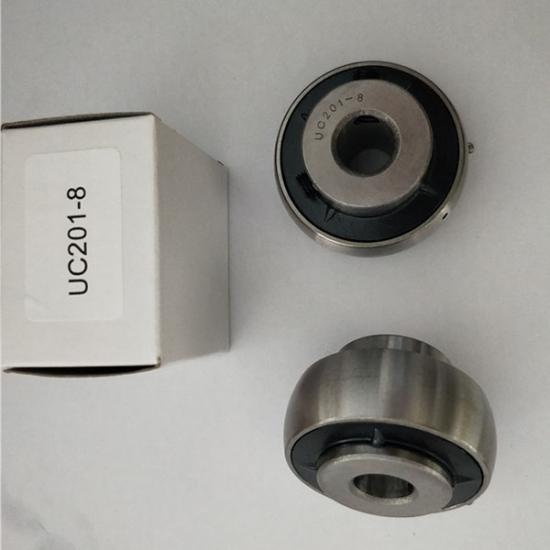

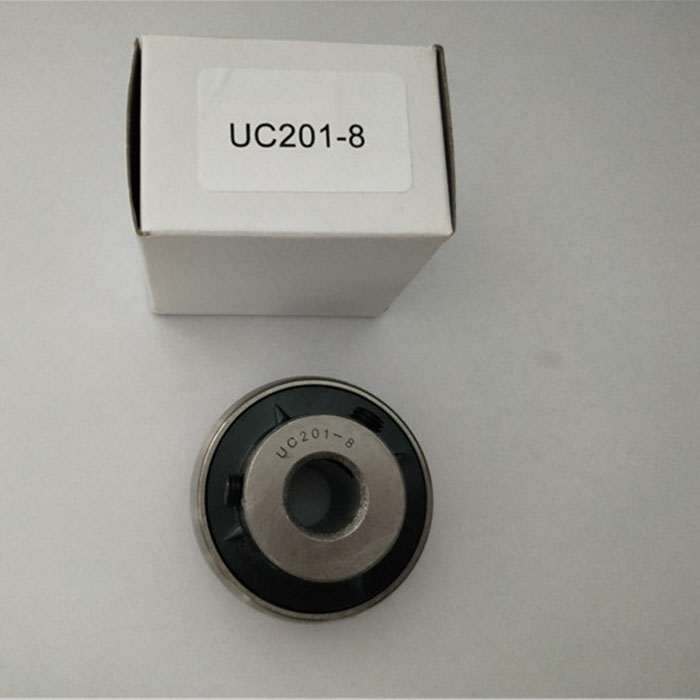

UC201-8 1/2" Bore Insert Bearings

1/2"*47*31mm UC201-8 insert ball bearings with Screw Locking Bearing Insert are produce with Chrome steel Gcr15 ,we can provide free sample for you to check quality before order.

  • item no.:

    UC201-8
  • lead time:

    3 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou,Shanghai
  • MOQ:

    100
products details


UC201-8 Insert Ball Bearings Description:

Material : Chrome steel Gcr15

Bore diameter :1/2" inner diameter = 0.500 inch=12.7mm

Outer diameter: 47mm

Inner ring height: 31mm

Outer ring height: 17mm

Dynamic load rating Cr: 56937 N

Static load rating Cor: 29358 N

OEM Number:

UC201-8

GY1008KRRB

VS208

UG2B08NL

UC201-008D1

YAR203-008

2-008 SM

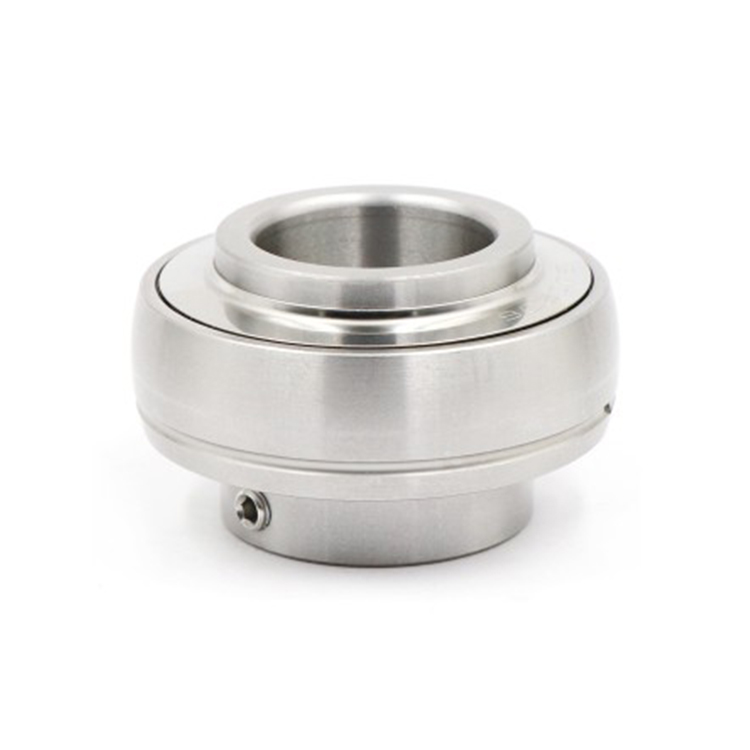

We Also can Produce With SUC201-8 Stainless Insert Bearing.

SUC201-8 Bearing
