High Temperature Bearing
home

High Temperature Bearing

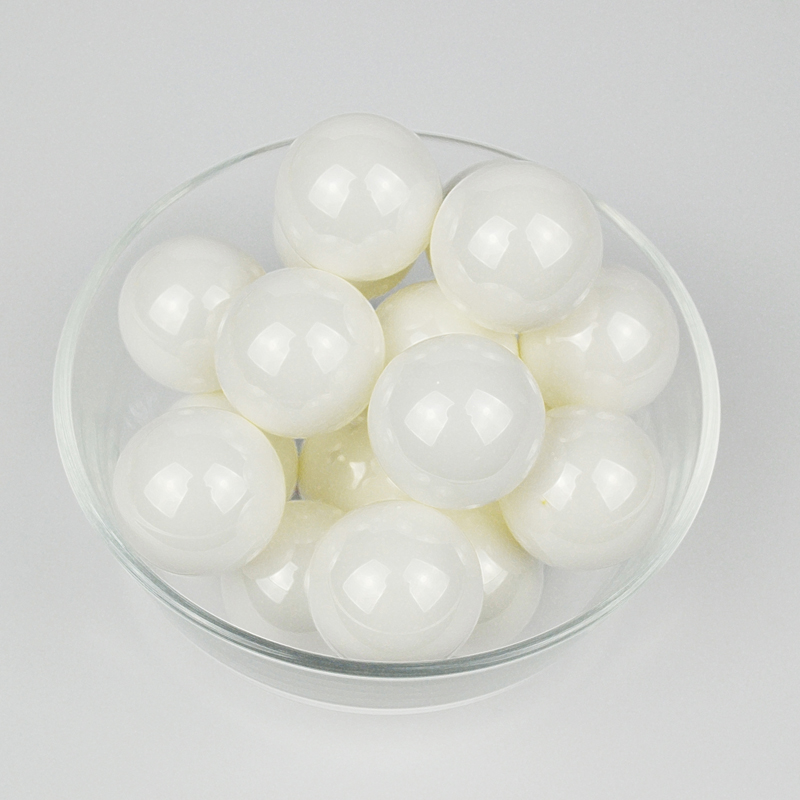

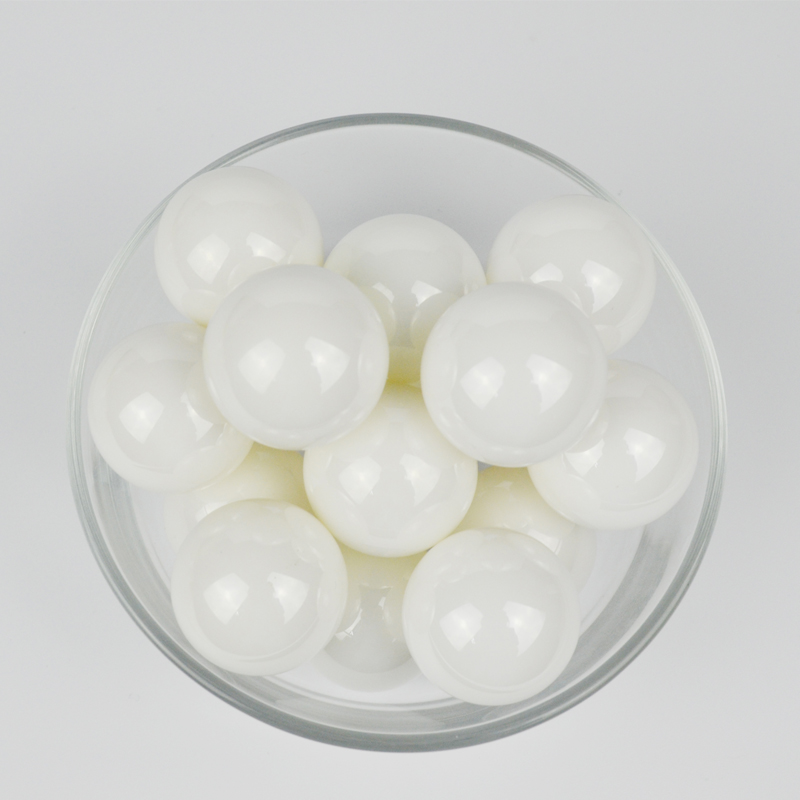

White Ball Ceramic Zirconia Oxide ZrO2

new products

White Ball Ceramic Zirconia Oxide ZrO2

ceramic balls with material ceramic ZRO2 can use for bearings and we have precision such as G5 G10 G20 G50

  • item no.:

    5/32' 3.969mm 1/16'
  • lead time:

    7 days after confirm order
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • color:

    black white
  • MOQ:

    1
products details

China Wholesale Small White Ceramic Balls Specfication :

Product Name
Precision Ceramic balls
Material
Zirconia Oxide
Size
1mm - 30mm
Grade
G3- G20mm
Surface Roughness
Ra0.05
Torlerance
+/- 0.001mm
Lead time
10days
Shipping
Air Express (DHL/UPS/TNT/ FedEx)

ball ceramic
loose ceramic ball bearings


Standard Sizes List Of Ceramic Balls

Inch Size
MM Size
Inch Size
MM Size
Inch Size
MM Size
Inch Size
MM Size
1/16
1.588
5/16
7.938
9/16
14.288
15/16
23.812
3/32
2.381
11/32
8.731
19/32
15.081
1
25.4
1/8
3.175
3/8
9.525
5/8
15.875
17/16
26.988
5/32
3.969
13/32
10.318
21/32
16.668
9/8
28.575
3/16
4.762
7/16
11.1125
11/16
17.462
19/16
30.162
7/32
5.556
29/64
11.509
23/32
18.256
5/4
31.75
15/64
5.953
15/32
11.906
3/4
19.05
21/16
33.338
1/4
6.35
31/64
12.303
25/32
19.844
11/8
34.925
17/64
6.747
1/2
12.7
13/16
20.638
23/16
36.512
9/32
7.144
17/32
13.494
7/8
22.225
3/2
38.1

Grades of Precision for Ceramic Bearing Balls:

Grades
Diameter Variation
Spherical Deviation
Diameter Variation of Batch
Surface
Roughness(Ra)
G5
0.13
0.13
0.25
0.014
G10
0.25
0.25
0.5
0.020
G16
0.4
0.4
0.8
0.025
G20
0.5
0.5
1
0.032
G28
0.7
0.7
1.4
0.050
G40
1
1
2
0.080
G60
1.5
1.2
3
0.1
G100
2.5
2.5
5
0.125



Properties of Best Ceramic Balls Materials:


Item
Units
Si3N4
ZrO2
GCr15
9Cr18
Color
-
Black
White
Grey
Grey
Density
g/cm3
≥3.20
5.95-6.05
7.85
7.85
Hardness (HV)
Gpa
16
12
7
7
Flexural Strength
Mpa
>720
900
-
-
Fracture Toughness
Mpa.m1/2
6.2
7
20
25
Elasticity Modulus
Gpa
300
210
208
200
Coefficient of Thermal Expansion
10-6/℃
3.0-3.2
10.3
12.5
17
Thermal Conductivity
w/m.k
15-20
2.2
40
40
Volume Resistivity
Ω.cm
>1014
1012
0.1-1
0.1-1
Max. Operating Temp.
(No load)
1200
850
300
150


Application of Ceramic Balls :

Ceramic ball can be used in all bearings with special requirement, metering ball , valve ball, track ball, and precision grinding ball; it can be used in fields requiring chemical resistance, high temperature, electronic insulation, magnetic insulation, non-lubrication. It is an idea substitute for steel ball in chemical corrosion application.


Material: Zirconia, Alumina, Si3N4

Size Range: 1mm - 30mm.

Grade: G3 - G20



silicon nitride bearings

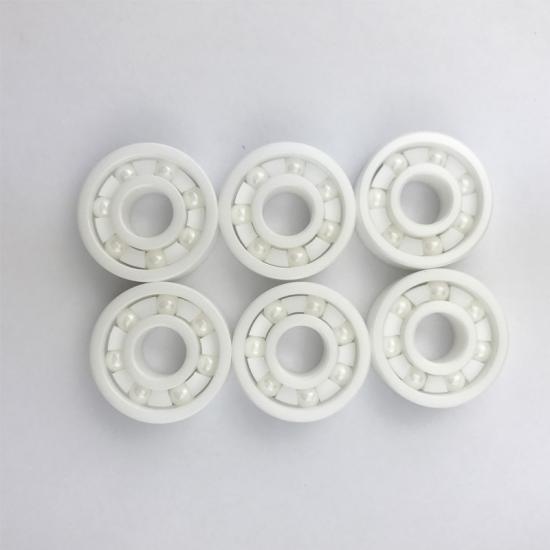

full ceramic skate bearings
hybrid ceramic bearing


related products
Waffle Roasting Machine Bearing
6205 Waffle Roasting Machine Bearing With 500 °C

6205ZZ bearing size 25*52*30mm ,with ceramic balls and high temp alloy steel material,and we packed with Japan grease DOWCORNING grease can used in high temp area such as Waffle Roasting Machinery .

6203 High Temperature Bearing
6203 High Temperature Bearing 250 Degree

6203 high temperature bearings mainly refer to the common bearing structure, using high temperature resistant materials, such as high temperature grease; and the bearing clearance is much larger than ordinary bearings , so it is usually not suitable for high speed operation, it is a high temperature low speed bearing. High temperature bearings are widely used in high temperature operation machinery such as metallurgy, kiln, glass, blast furnace, painting equipment.

Bearing Temperature
6316 Ball Bearing Temperature 500 °C With DOW CORNING Grease

6316 Ball Bearing size is  80*170*39mm,we use high quality material alloy and Ceramic and packed with JAPAN brand grease DOW CORNING can work at temperature moer than 500 ° C。

Full Ceramic Bearing R188
High Temperature Full Ceramic Balls Bearing R188

600 °C R188 Zro2 full balls ceramic bearing with size 6.35*12.7mm *3.18mm ,this bearing are produce with full balls ,and  with material ceramic ZrO2 and PTFE cage,which can working at temperature at 600 degree .

High Temperature Ceramic Bearings
6302 High Temperature Ceramic Silicon Nitride Bearings

6302 full silicon nitride balls ceramic bearing with size 15*42*13mm ,this bearing are produce with full balls without any cage and with material ceramic ZrO2 and PTFE cage,which can working at temperature at 600 degree .

High Heat Bearings
608 High Temperature Ceramic Bearings With PEEK Seals

608 silicon nitrideballs ceramic bearing with size 8*22*7mm ,this bearing are produce with ceramic Si3N4 and PEEK Seals which can working at temperature at 800 degree .
