6302 High Temperature Ceramic Silicon Nitride Bearings

new products

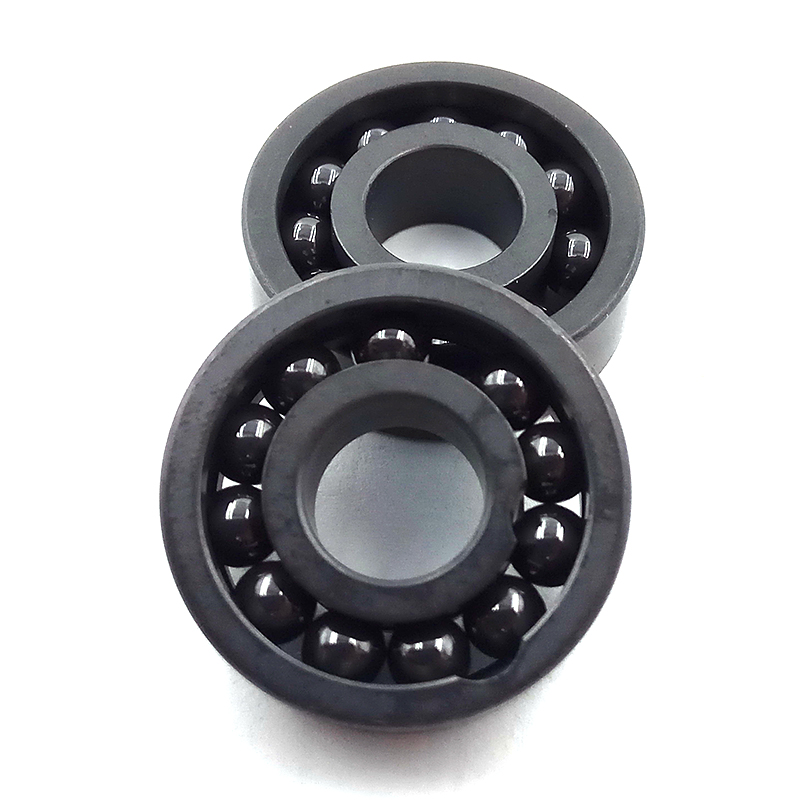

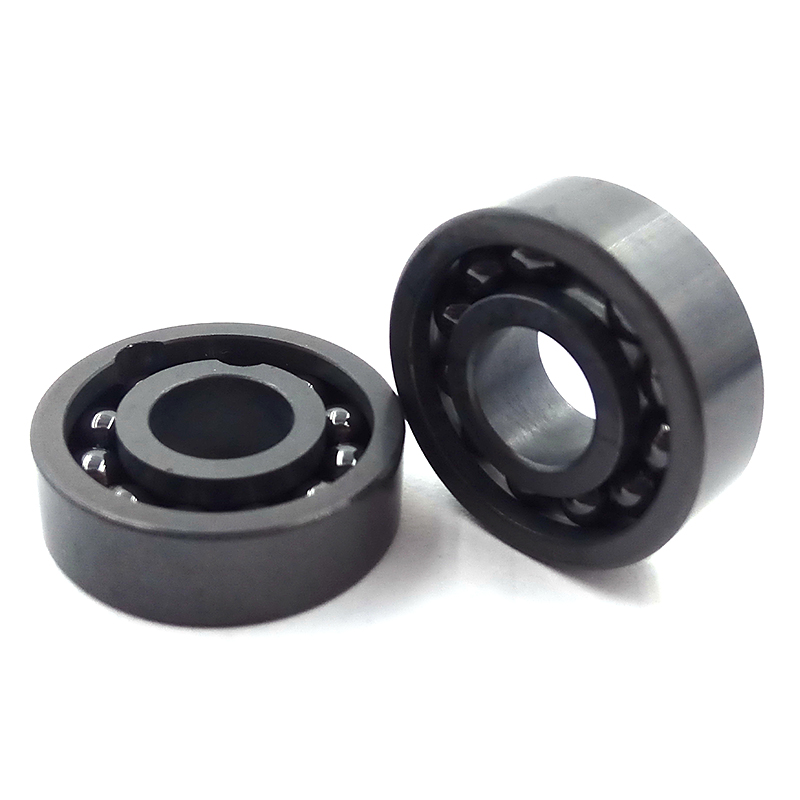

6302 High Temperature Ceramic Silicon Nitride Bearings

6302 full silicon nitride balls ceramic bearing with size 15*42*13mm ,this bearing are produce with full balls without any cage and with material ceramic ZrO2 and PTFE cage,which can working at temperature at 600 degree .

  • item no.:

    6302
  • lead time:

    7 days after confirm order
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • color:

    black
  • MOQ:

    1
products details

6302 Full Balls Silicon Nitride Bearings Specfication :

Bearing number 6302
Size (mm) 15*42*13
Material  Ceramic Silicon Nitride
Feature With full balls ,without cage
Working temperature  800 degree

Full Balls Silicon Nitride Bearings Can Working At Environment With 800 Degree.

 BLACK BEARING silicon nitride ceramic ball bearings

 si3n4 Bearings With Ceramic Material Have Below Features:

1.Can working at high temperature 800 degree ~1300 degree

with low coefficient of friction ceramic bearing have the ability to withstand much higher speed without exceeding too high temparature than steel bearings

2.Anti coorrosion

ceramic resists acids alkali blood salt and water ,so it will not corrod or rust

3 .No grease required

Ceramic balls require less lubrication and have a greater harness than steel balls which will contribute to increase bearing life .

4. Highest spin time

Because the ceramic has low coeffient of friction ,it is good material for any application seeking to have a high RPM'S


ZZ BEARINGS Are Professional Bearing Manufacturer In China, We Can Produce Full Ceramic Bearing And Hybid Ceramic Bearing Work At High Temperature .


1) Full ceramic bearings with ZrO2/Si3N4/SiC material ---non-magnetism,electrical insulation,wear resistant,anti corrosive.

2) Hybrid ceramic bearings (Stainless steel ring with  hybrid balls or Chrome steel rings with  hybrid balls ) ---high speed,self-lubricated.

3) Precision ceramic balls (ZrO2/Si3N4/SiC/Al2O3) ---vacuum,high and low temp,high precision ball screw set,valve balls for acid,alkali and salt.

Bearing type Full or hybrid ceramic bearing
Bearing model 608,R188 ,MR83 ,6000,6001 ,6000SERIES,6200 SERIES
bearing material Si3N4,ZrO2,stainless steel ,chrome steel
Bearing cage  Si3N4,ZrO2,PTFE,Nylon


ceramic high temperature bearing type



Full Balls Bearing Application :


cearmic bearing can be working at any extree environment which require non-corrosize ,non-conductive or non-magnetic or high temperature area.


CERAMIC BEARING APPLICATION

 Ceramic Bearing Packing :

We often packing ceramic bearing with pp bag +white box /pc ,if you have nay requirements just tell me ,we can do customzied packing .

ceramic bearing packing
