LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
206KRR6 bearing is kind of Agriculture bearing with hex bore ,two lip seals ,produced with Chrome steel Gcr15 and the size are 1" *2.44"*0 .94" *0 .63"
item no.:
206KRR6lead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:

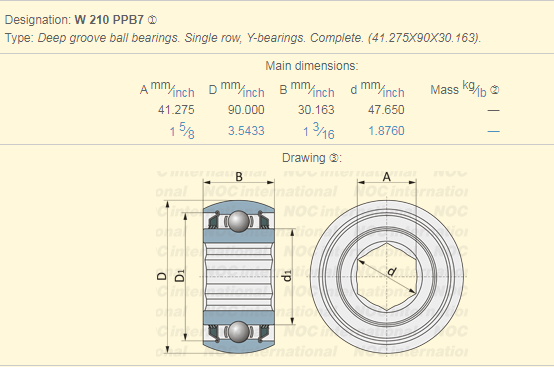

100W210PPB7 Bearing Dimension :
DIMENSIONS:
BORE: 1-5/8" Hex
O.D. 3.5433" Rounded (90mm)
IR Width: 1.188"
OR Width: 1.188"
Weight :0.794 kgs
Material :Chrome steel Gcr15
Agricultural machinery requires better seals for contaminated conditions, provisions for misalignment,and economical mountings for shafts and housings.
ZZ BEARINGs can offer ag bearings for disc harrows,planters, mowers, rakes, all types of balers, tillag, seeding and forage,harvester equipment, combines,cotton pickers/stripers, and other agricultural equipment like silo unloaders and grain elevators.
Below here is farm machinery parts bearing numbers for your reference :
| Bearing Number | HEX Shaft Size | Bore Diameter | Outside Diameter | Inner Width | Outer Width | Weight |
| mm | Kg | |||||
| 202KRR3 | 9/16 | 16.46 | 35 | 11 | 13 | 0.054 |
| 204KRR2 | 11/16 | 20.22 | 47 | 14 | 20.96 | 0.145 |
| 205KRR2 | 7/8 | 25.65 | 52 | 15 | 25.4 | 0.2 |
| 205KRRB2 | 7/8 | 25.65 | 52 | 15 | 25.4 | 0.2 |
| 205PPB13 | 7/8 | 25.65 | 52 | 15 | 25.4 | 0.2 |
| 206KPP3 | 1 | 29.31 | 62 | 16 | 24 | 0.345 |
| 206KPPB3 | 1 | 29.31 | 62 | 18 | 24 | 0.345 |
| 206KRR6 | 1 | 29.31 | 62 | 16 | 24 | 0.341 |
| 206KRRB6 | 1 | 29.31 | 62 | 18 | 24 | 0.341 |
| 207KPP3 | 1 1/4 | 36.4 | 72 | 17 | 37.7 | 0.454 |
| 207KPPB3 | 1 1/4 | 36.4 | 72 | 17 | 25 | 0.395 |
| 207KRRB9 | 1 1/8 | 32.97 | 72 | 17 | 37.7 | 0.454 |
| 207KRRB12 | 1 1/8 | 32.97 | 72 | 17 | 25 | 0.395 |
| 207KRR17 | 1 1/4 | 36.65 | 72 | 17 | 25 | 0.395 |
| 207KRRB17 | 1 1/4 | 36.65 | 72 | 17 | 25 | 0.395 |
| W208PPB16 | 1 1/4 | 36.65 | 80 | 18 | 36.53 | 0.658 |
| W208KRRB6 | 1 3/8 | 40.3 | 80 | 21 | 36.53 | |
| W208KRR8 | 1 1/4 | 36.65 | 80 | 18 | 36.53 | 0.658 |
| 209KRRB2 | 1 1/2 | 43.99 | 85 | 19 | 30 | 0.576 |
| W210PPB7 | 1 5/8 | 47.65 | 90 | 30.18 | 30.18 | 0.794 |
| G206KPP4 | 1 | 29.26 | 62 | 18 | 24 | 0.281 |
| G206KPPB4 | 1 | 29.26 | 62 | 18 | 24 | 0.277 |
| G206KRRB6 | 1 | 29.26 | 62 | 18 | 24 | 0.268 |
| G207KPPB2 | 1 1/8 | 32.97 | 72 | 19 | 37.7 | 0.454 |
| GW208KRRB5 | 1 1/4 | 36.65 | 80 | 21 | 36.51 | 0.635 |
| GW208PPB22 | 1 1/4 | 36.75 | 80 | 21 | 36.51 | 0.681 |
| GC1200KPPB2 | 1 3/4 | 51.31 | 100 | 25 | 57.15 | 1.521 |
We can produce different type of Ag Bearing :
Round bore and spherical O.D
Square bore and spherical O.D
Round bore and cylindrical O.D
Square bore and cylindrical O.D
Flanged disc units-round bore
Flanged disc units-square bore
Round Bore Agricultural Bearings:
Hex Bore Agricultural Bearing
Square Bore Agricultural Bearing
202KRR3 Agricultural Hexagonal Bearing with bore 9/16" are produce with Chrome steel.
Hex Bore Agricultural Machinery Bearing 205KRRB2 are with bore size 7/8" ,and this bearing can be used for John Deere Farm Machinery.
PEER Agricultural Bearing 204KRRB2 with Hex Bore 11/16" are produce with Chrome steel material and widely used for PEER SEED machinery
NTN Bearing 2AH07-1.1/8 is same as bearing 207KRRB9 with hex bore ,and these bearings are widely used for Agricultural machiery parts such as John Deere ,Case-IH.
Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.
Square hole Farm Machinery ball bearing W208PPB9 are with 1 inch square bore size ,and this bearings are know as DS208TT 9,16S2-208E3,2AS08-1 1/8,AS4508BE,PDNF240/8.
