Hex Bore Agricultural Bearings
home

Agricultural Machinery Bearing

Hex Bore Agricultural Bearings

NTN Hex Hole Agricultural Bearings 206KRR6

new products

NTN Hex Hole Agricultural Bearings 206KRR6

206KRR6 bearing is kind of Agriculture bearing with hex bore ,two lip seals ,produced with Chrome steel Gcr15 and the size are 1" *2.44"*0 .94" *0 .63"

  • item no.:

    206KRR6
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details
Bearings 206KRR6 Introduction :

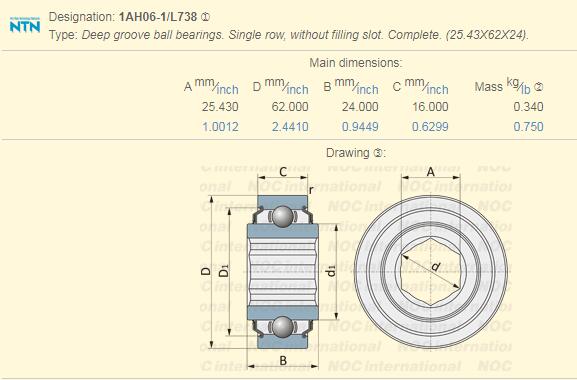

206KRR6 bearing drawing




DIMENSIONS:

BORE: 1" Hex bore

O.D. 2.44" Flat

Inner Ring Width:0 .94"

Outer Ring Width: 0.63

Material : Chrome Steel Gcr15


Other OEM NO.:


FAFNIR: 206KRR6

BCA: HPC100GP

Link-Belt: 16KB206N

NTN: 1AH06-1

John Deer: JD9338

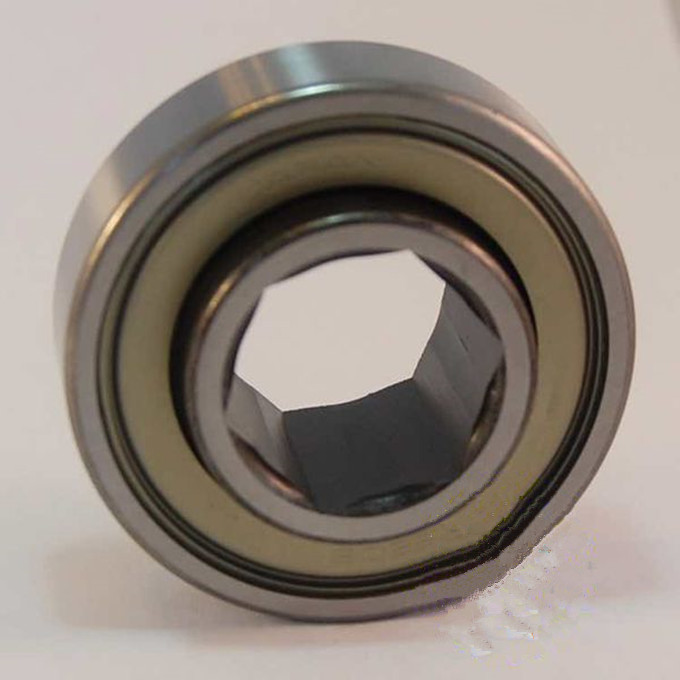

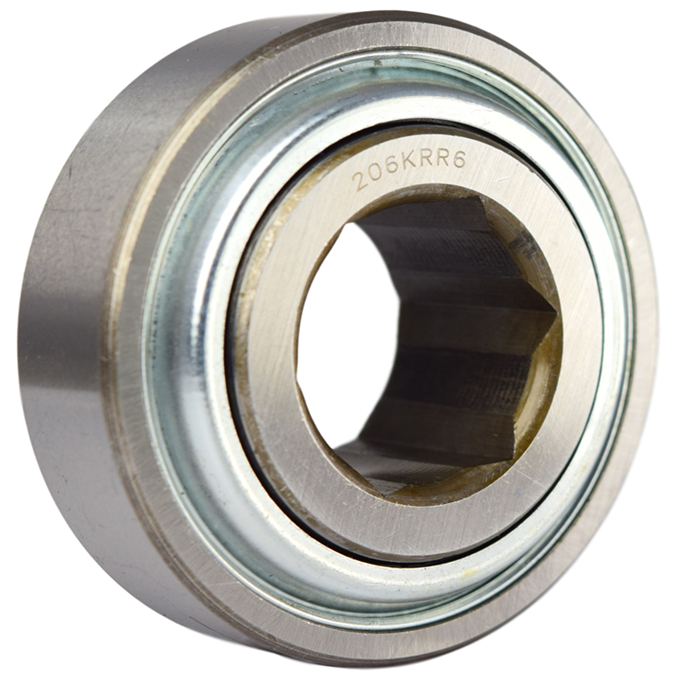

Bearings 206KRR6 Picture:

Bearings 206KRR6
NTN Hex Hole Bearing




ZZ BEARING is a agricultural machine factory, farm machinery parts,we can produce other farm machinery bearing:

Bearing Number HEX Shaft Size Bore Diameter Outside Diameter Inner Width Outer Width Weight
mm Kg
202KRR3 9/16 16.46 35 11 13 0.054
204KRR2 11/16 20.22 47 14 20.96 0.145
205KRR2 7/8 25.65 52 15 25.4 0.2
205KRRB2 7/8 25.65 52 15 25.4 0.2
205PPB13 7/8 25.65 52 15 25.4 0.2
206KPP3 1 29.31 62 16 24 0.345
206KPPB3 1 29.31 62 18 24 0.345
206KRR6 1 29.31 62 16 24 0.341
206KRRB6 1 29.31 62 18 24 0.341
207KPP3 1 1/4 36.4 72 17 37.7 0.454
207KPPB3 1 1/4 36.4 72 17 25 0.395
207KRRB9 1 1/8 32.97 72 17 37.7 0.454
207KRRB12 1 1/8 32.97 72 17 25 0.395
207KRR17 1 1/4 36.65 72 17 25 0.395
207KRRB17 1 1/4 36.65 72 17 25 0.395
W208PPB16 1 1/4 36.65 80 18 36.53 0.658
W208KRRB6 1 3/8 40.3 80 21 36.53
W208KRR8 1 1/4 36.65 80 18 36.53 0.658
209KRRB2 1 1/2 43.99 85 19 30 0.576
W210PPB7 1 5/8 47.65 90 30.18 30.18 0.794
G206KPP4 1 29.26 62 18 24 0.281
G206KPPB4 1 29.26 62 18 24 0.277
G206KRRB6 1 29.26 62 18 24 0.268
G207KPPB2 1 1/8 32.97 72 19 37.7 0.454
GW208KRRB5 1 1/4 36.65 80 21 36.51 0.635
GW208PPB22 1 1/4 36.75 80 21 36.51 0.681
GC1200KPPB2 1 3/4 51.31 100 25 57.15 1.521


related products
Hexagonal Bearing
9/16" Agricultural Hexagonal Bearing 202KRR3

202KRR3 Agricultural Hexagonal Bearing with bore 9/16" are produce with Chrome steel.

Farm Bearing 205KRRB2
7/8" Hex Bore Farm Bearing 205KRRB2

Hex Bore Agricultural Machinery Bearing 205KRRB2 are with bore size  7/8" ,and this bearing can be used for John Deere Farm Machinery.

Peer Seeder Bearing
11/16" Hex Bore PEER Seeder Bearing 204KRRB2

PEER Agricultural Bearing 204KRRB2 with Hex Bore 11/16" are produce with Chrome steel material and widely used for PEER SEED machinery

NTN Hex Bore Bearing
1-1/8" NTN Hex Bore Bearing 2AH07-1.1/8

NTN Bearing 2AH07-1.1/8 is same as bearing 207KRRB9 with hex bore ,and these bearings are widely used for Agricultural machiery parts such as John Deere ,Case-IH.

Hex Bore Ag Bearing
11/16" Hex Bore Ag Bearing 204KRR2

Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.

1 Square Bore Bearing
1" Square Bore Farm Bearings W208PPB9

Square hole Farm Machinery ball bearing W208PPB9 are with 1 inch square bore size ,and this bearings are know as DS208TT 9,16S2-208E3,2AS08-1 1/8,AS4508BE,PDNF240/8.
