TK Bearing Housing

new products

TK6205-133 Conveyor Roller Bearing Housing

TK6205-133 bearing housing for tube 133 mm.

  • item no.:

    TK6205-133
  • lead time:

    10 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

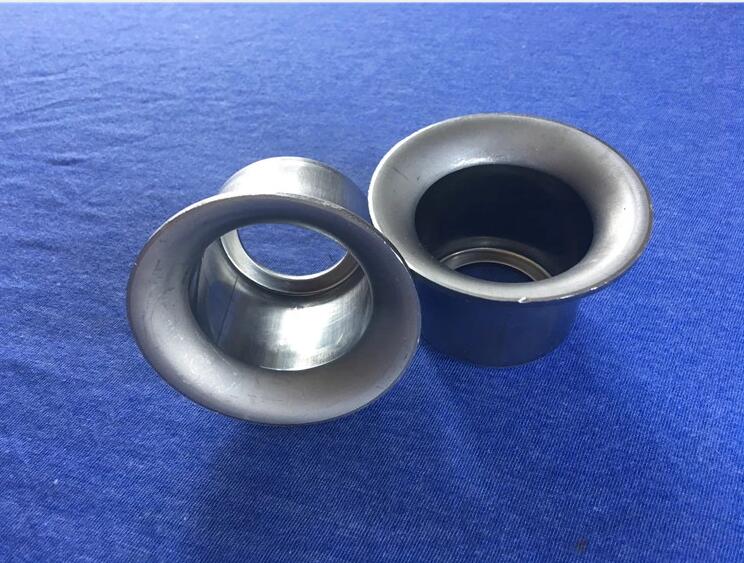

TK6205-133 Conveyor Bearing Housing Description :


Materials :

Bearing Housing: Carbon steel SPHC

Sealing Ring: Nylon PA6

Labyrinth Seal: POM

Outer Cap: SPCC

Dust Cover: Nylon PA6



1. Type: TK

2. Bearing No: TK6205-133

3. Flange: 128mm

4. Bearing seat dia: 52mm

5. Caliber: 52.1mm

6. Hole: 30mm

7. Deep dia: 53mm

8. Height: 49mm

9. Thickness : 4mm



We Can Produce Below Conveyor Roller Bearing:



Roller Model: TK, TKII, DTII, TD75

Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,

6309, 6310.etc.


For Shaft: 20mm.25mm.30mm.35mm.40mm.45mm.50mm etc.


Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,

194, 219,etc.

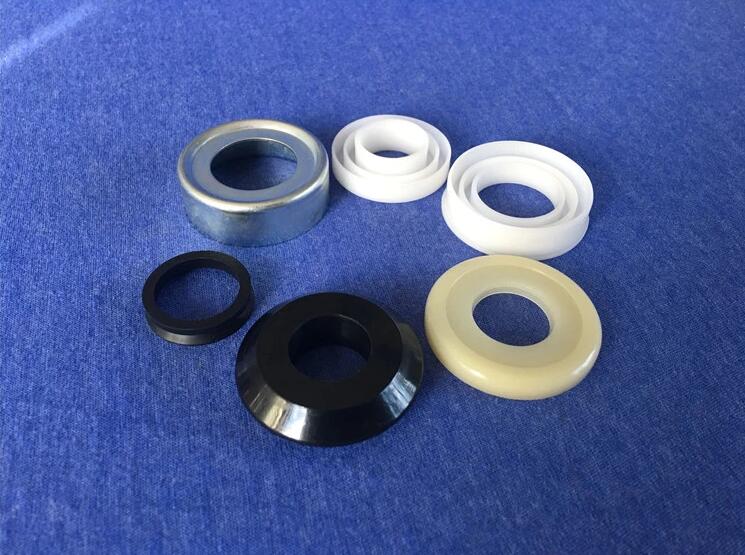

How to assemble Conveyor Roller Bearing:



Protective cover

Metal cover

Male labyrinth seal

Femal labyrinth seal

Bearing

Inner seal

Bearing end cap


 TK6204-108 bearing housing assemble


TKII Bearing Housing Catalogue :

TKII bearing housing


 Belt Conveyor Roller Bearing Housing
