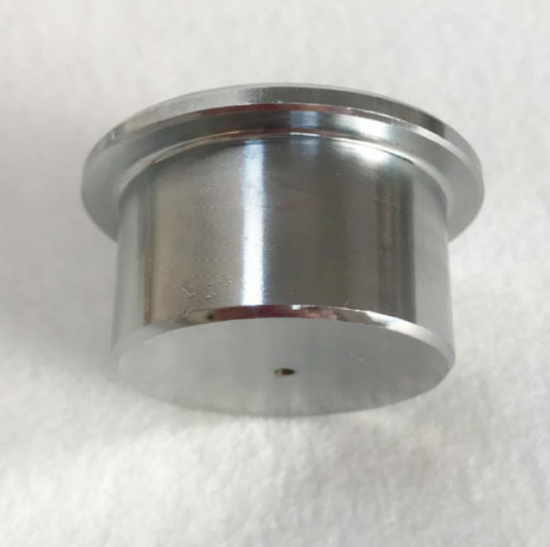

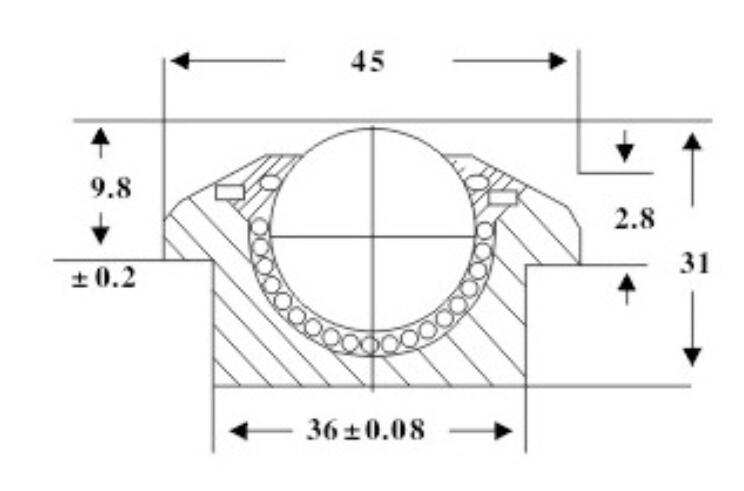

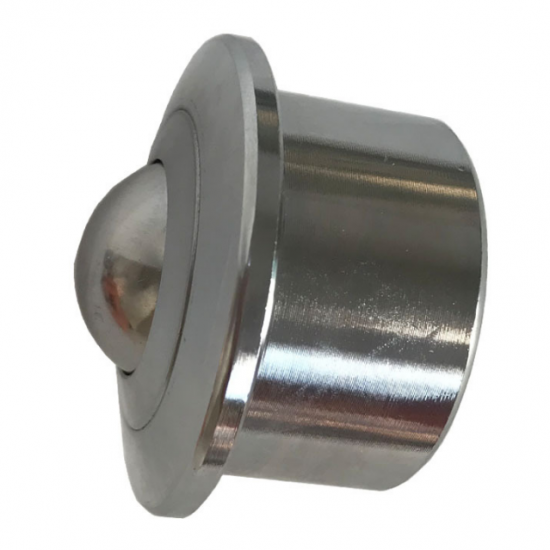

SP22B Heavy Steel Ball Transfer Unit

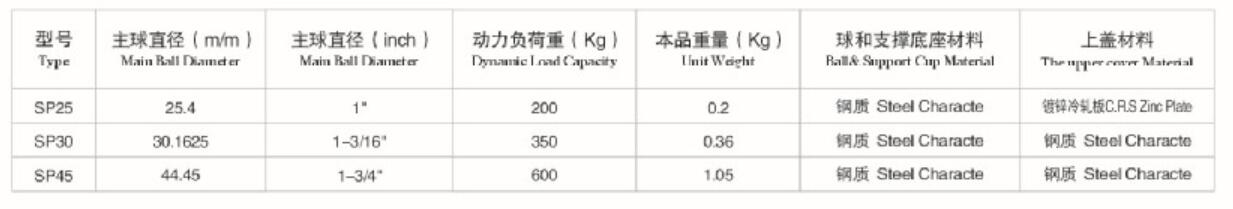

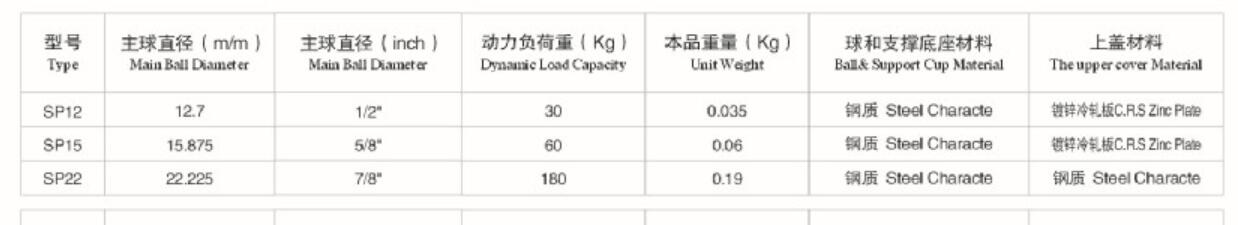

SP22 Ball Transfer Unit Specification :

we can produce ball transfer unit with A B C D SS type :

A means all the main rolling balls and small bearing balls are made of carbon steel

B means : all the main rolling balls and small bearing balls are made of Chrome steel

C means :all the main rolling balls and small bearing balls are made of SUS420

D means :all the main rolling balls are made of nylon and hte small bearings balls are made of the SUS420

SS means the main rolling balss and the outer bady are made of the SUS420

Some SP series Heavy Duty Ball Transfer No.:

Ball Transfer Material: stainless steel, plastic, nylon, carbon steel, etc.

Housing: galvanized steel, stainless steel, nylon, carbon steel hardened, galvanized steel

Ball / Ball: Carbon steel, galvanized steel, steel, plastic, nylon, steel ball bearings

Ball Transfer Static load :1-480kg

Ball Transfer Dynamic load :1-300kg

Application；

Due to the flexible rolling of the universal ball, the work board, material box and other objects running on it can slide very flexibly, thereby greatly reducing the labor intensity of the workers. The universal ball can be set arbitrarily according to different load-bearing requirements. Distribution density can also choose different load.

Universal balls are widely used in transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

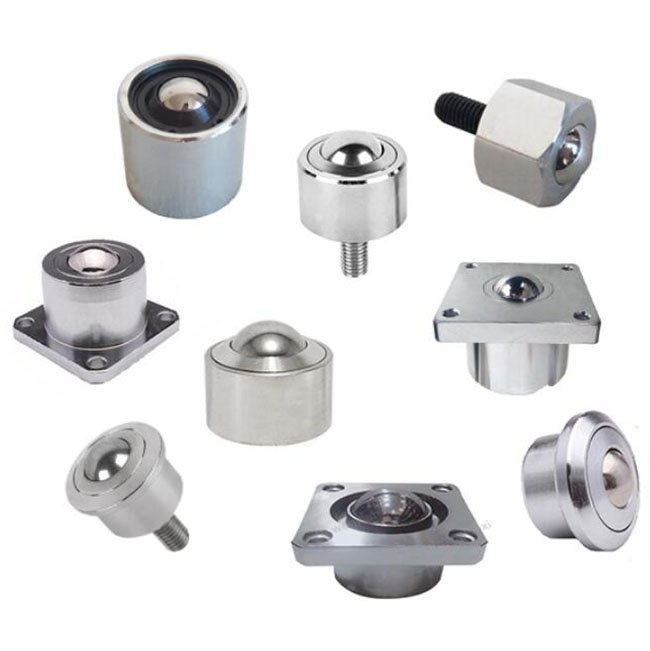

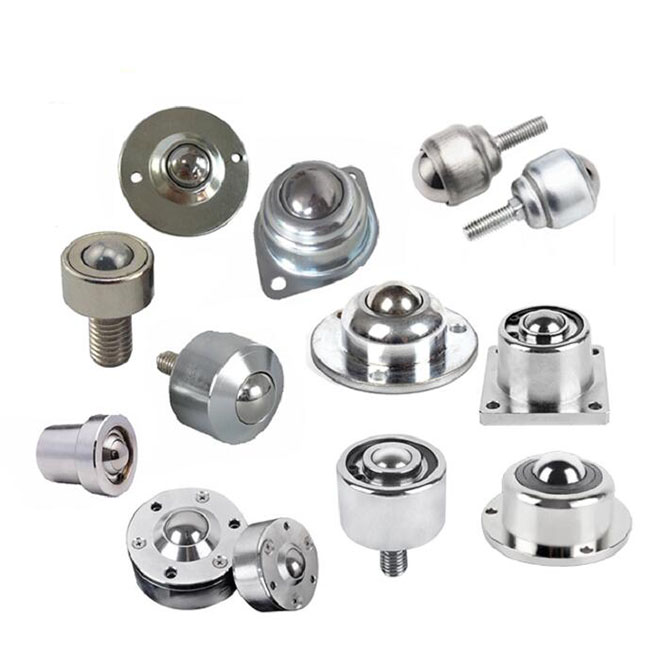

Ball Transfer Unit Type:

CY-Series:  CY-15A,CY-19A,CY-25A,CY-30Y,CY-38A

                    CY-8H,CY-15H, CY-22H,CY-25T,CY-30H,

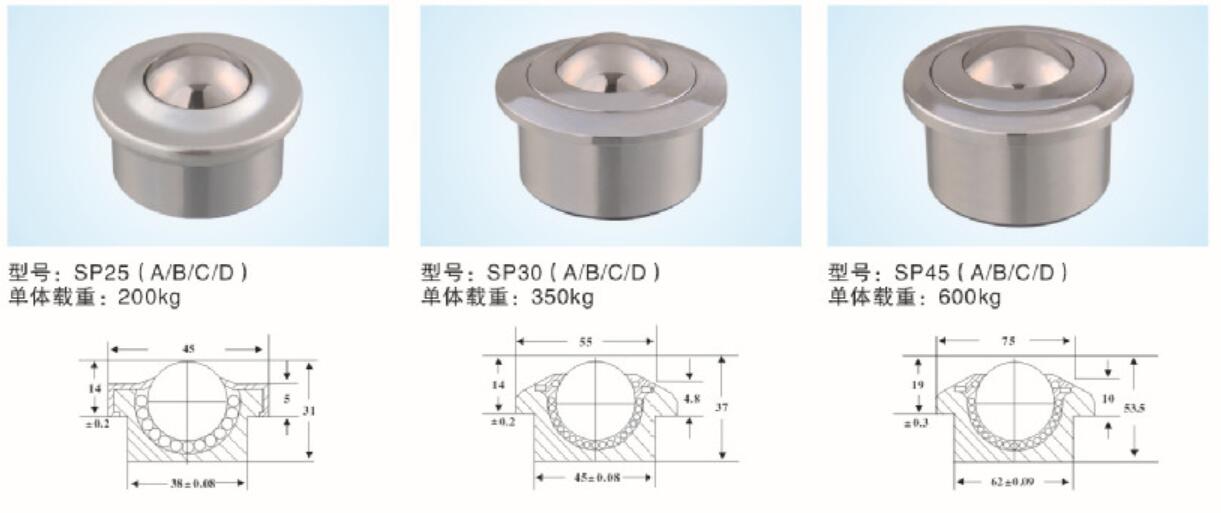

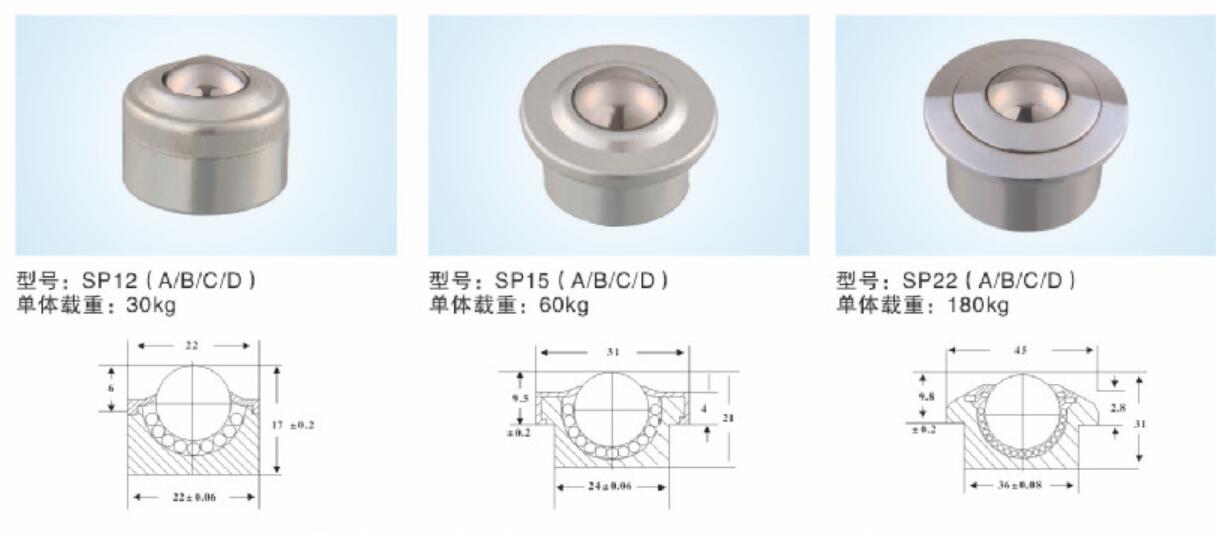

SP-Series: SP-8,SP-12,SP-15,SP-22,SP-25,SP-30,SP-30,SP-38,SP-45,SP-60,SP-76

SP-FL Series: SP8-FL,SP15-FL,SP22-FL,SP-25-FL,SP30-FL

KSM-FL Series:KSM12-FL,KSM15-FL, KSM22-FL,KSM25-FL,KSM30-FL

IA Series: IA-19,IA-25,IA-38

IS Series: IS-25,IS-38,IS-51

SD Series: SD-12,SD-25,SD-30,SD-38,SD-51

SI Series:SI-12,SI-25,SI-30,SD-38,SD-51

IK Series:IK-19B,IK-22B,IK-25B,IK-38B,IK-51B,         IK-19N,IK-22N,IK-25N-IK-38N-IK-51N

UK Series:UK-12,UK-25,UK-38,UK-51                       UK-19T,UK-30T,UK-38T,UK-45T,UK-50T
