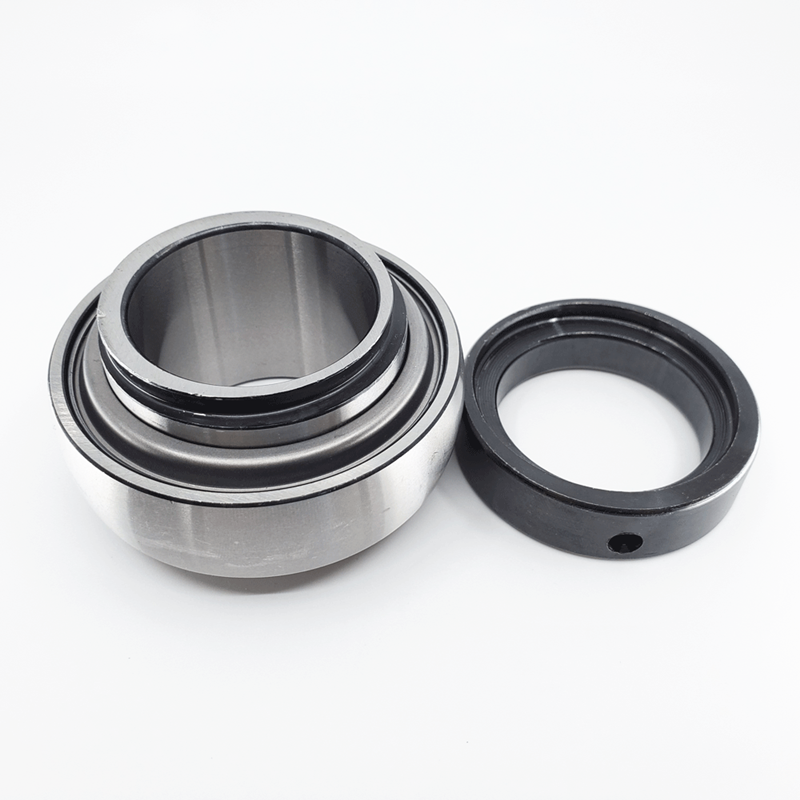

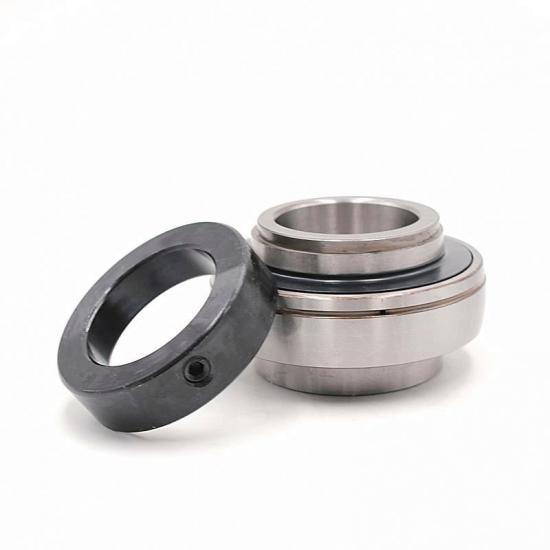

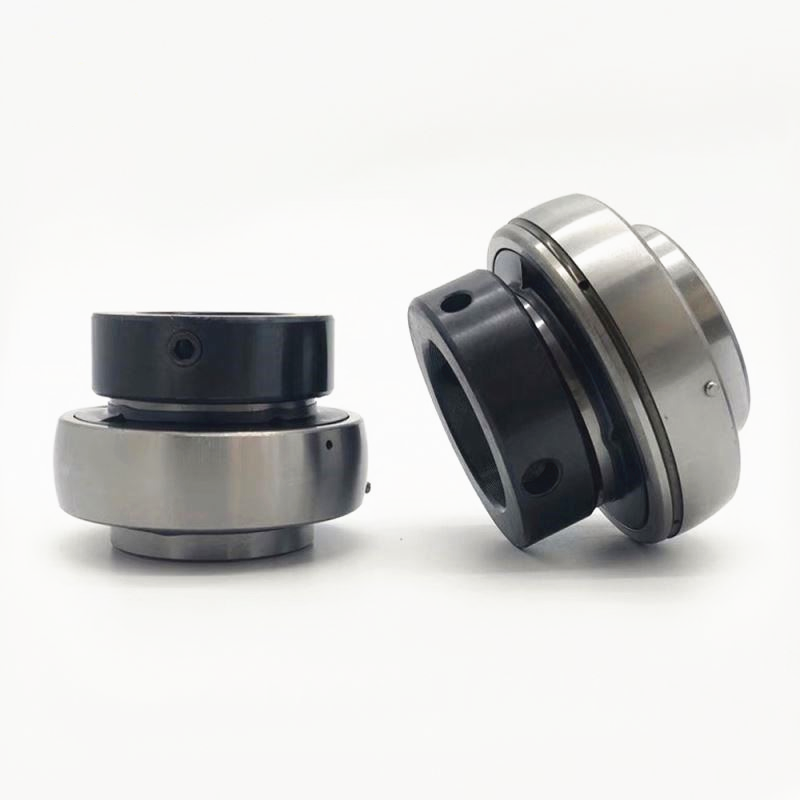

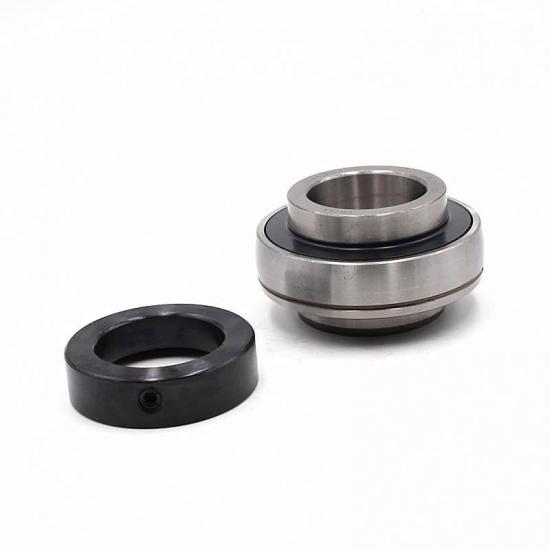

1215KRR Eccentric Locking Collar Ball Bearings

2.9375 in ID, 130 mm OD, 2.9375 in Width 1215KRR Round Bore Bearing ,we have this bearings in stock ,free sample can be provide in advance .

item no.:
39602/F29
lead time:
7days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

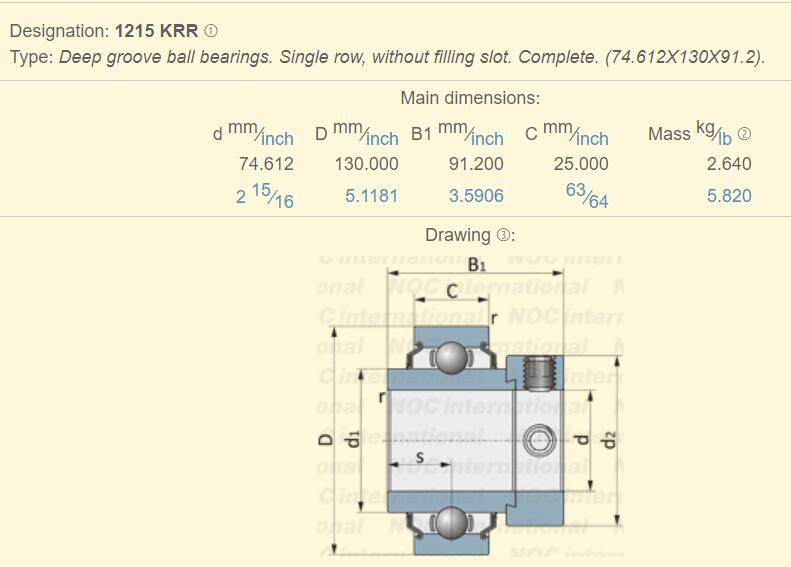

1215 KRR Agricultural Machinery Bearing Specification:

Bearing No.:1215 KRR, 1215-KRR, 1215KRR, 1215KRR.

Bore Type :Round

Series KRR

Overall Width:2.9375 in

Outer Ring Width: 0.9843 in

Bore Diameter :2.9375 in:

Inner Ring Width 2.9375 in

Snap Ring Included Without Snap Ring

1215 KRR Bearing

We can produce other Agricultural Machinery Bearing:

1215 KRR Agricultural Machinery Bearing

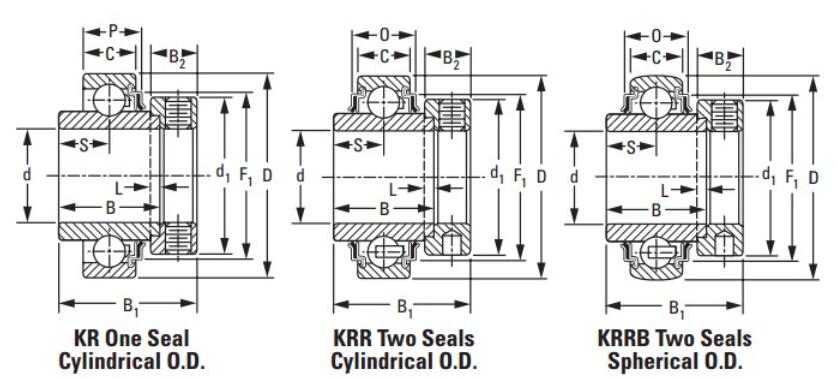

Bearing No.		Shaft Dia	O.D.	Ring Widths		Brg.Weight.
Cylindrical O.D	Spherical O.D.	d	D	inner B	Outer C
		in.	MM	MM	MM	kg
1108 KRR	1108 KRRB	1.50	80	42.86	18	0.789
1109 KRR	1109 KRRB	1.56	80	42.86	18	0.739
1110 KRR	1110 KRRB	1.63	85	42.86	19	0.898
1111 KRR	1111 KRRB	1.69	85	42.86	19	0.848
1112 KRR	1112 KRRB	1.75	85	42.86	19	0.825
1114 KRR	1114 KRRB	1.88	90	49.21	20	1.057
1115 KRR	1115 KRRB	1.94	90	49.21	20	1.000
1202 KRR	1202 KRRB	2.13	100	55.56	21	1.356
1203 KRR	1203 KRRB	2.19	100	55.56	21	1.306
1204 KRR	1204 KRRB	2.25	110	61.91	22	1.715
1207 KRR	1207 KRRB	2.44	110	61.91	22	1.565
1215 KRR	1215 KRRB	2.94	130	74.61	25	2.640
1200 KRR	1200 KRRB	2.00	100	55.56	21	1.520

hot tags :

1215KRR Insert Bearing Agricultural Insert Bearing Ball Insert Bearing Ball Bearing Housed Units 1215KRR 1215KRR Agricultural Machinery Bearing

previous :
207KRRAH03 Special Agricultural Bearings
next :
39602/F29 Square Bore Agricultural Bearing

related products

Agricultural Machinery Bearing Square Bore GW208PP17

Round Bore Agricultural Machinery Bearing W214PPB9

round bore agricultural bearing W214PPB9 with size 70.256 x 125 x 44.45 / 28mm ,are made with Chrome steel material .

Hexagon Bore Agricultural Bearing GB208KRRH

GB208KRRH Bearing with hex bore inner ,the bearings are widely used in agricultural implements and conveyors machinery . With hex bore ,the bearing can mounting easily .

1.50" Round Bore Agricultural Bearings W208PP10

Agricultural Machinery Bearing W208PP10 With Material Chrome Steel And The Inner Size Is 1.5 Inch ,Outer Size Is 80mm And The Height Is 1.688 Inch

1.1250" Square Bore Farm Implement Bearing GW208PPB8

Agricultural Machinery Bearing GW208PPB8 With Material Chrome Steel And Standard Dimensions Are, Bore size:1.1250 in*Outside diameter:3.1496 in Overall width:1.4375 in

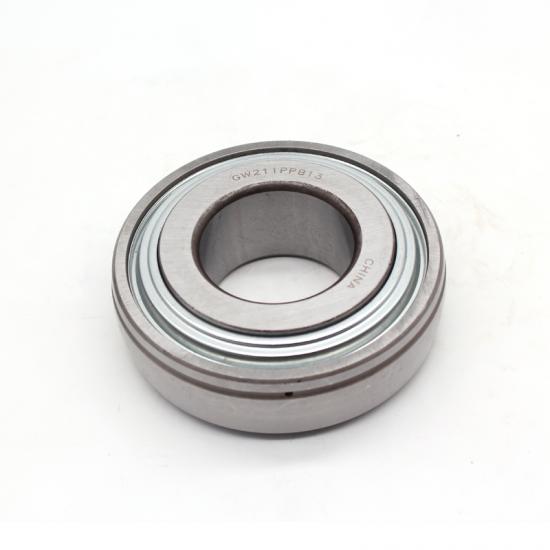

King Kutter Disc Harrow Bearing GW211PPB13
