LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
6x12x4.5mm SF6-12 thrust ball bearings are produced with stainless steel 304 material ,we have bearing in stock ,free sample can provide for you in advance .
item no.:
SF6-12lead time:
7 daysproduct orgin:
China ,Shanghaishipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIpayment:
30% TT in advance ,70% TT after finish producMOQ:
1000Stainless steel thrust bearing is composed of 2 thrust washers and 1 cage. The thrust washer and balls are made of stainless steel material. The cage material can be stainless steel, nylon or brass.
Small Stainless Thrust Ball Bearing SF6-12 Specification :
| Product Name |
Small Stainless Thrust Ball Bearing SF6-12 |
| Model No | SF6-12M |
| Dimension(mm) |
6x12x4.5mm |
| Material | 304 Stainless steel |
| Packing | 1/pc plastic bag + single color box + carton |

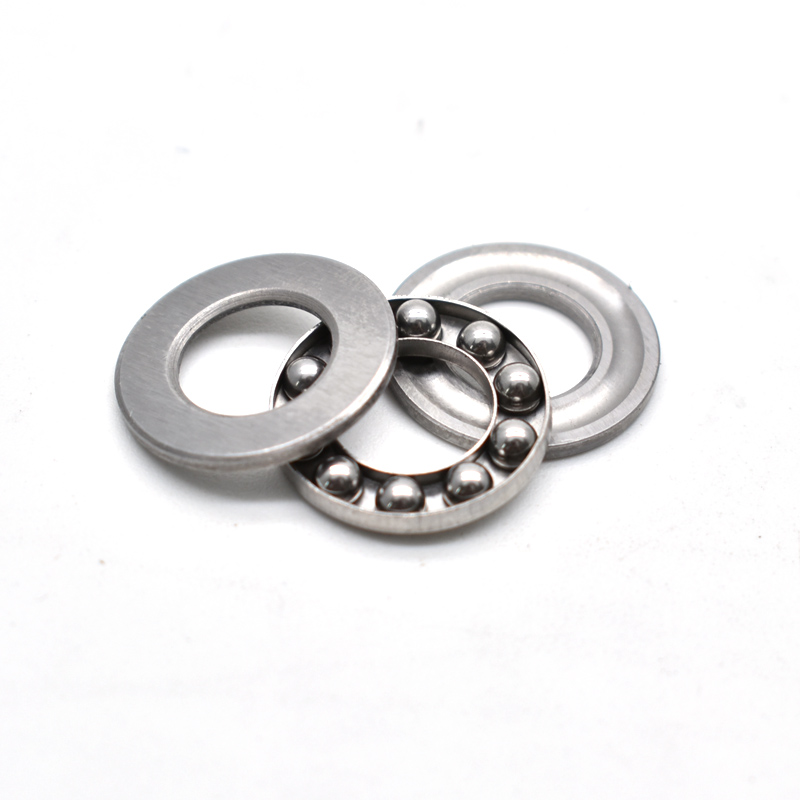

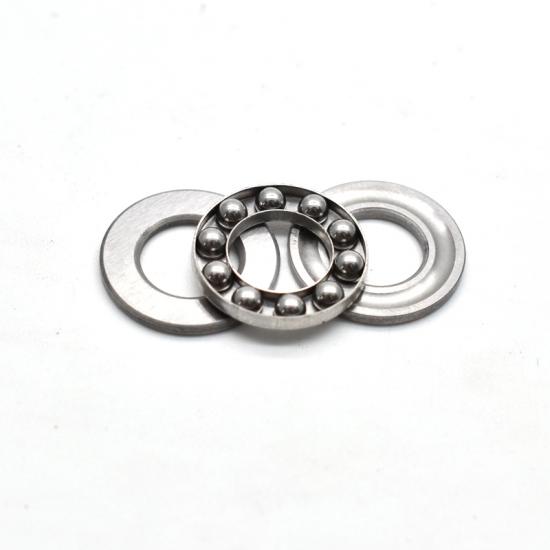

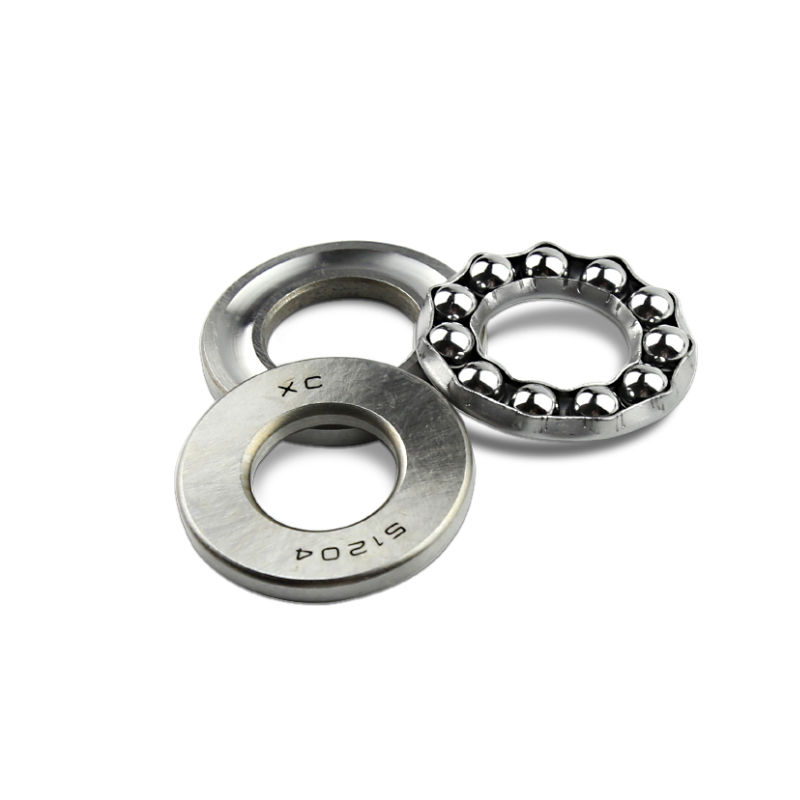

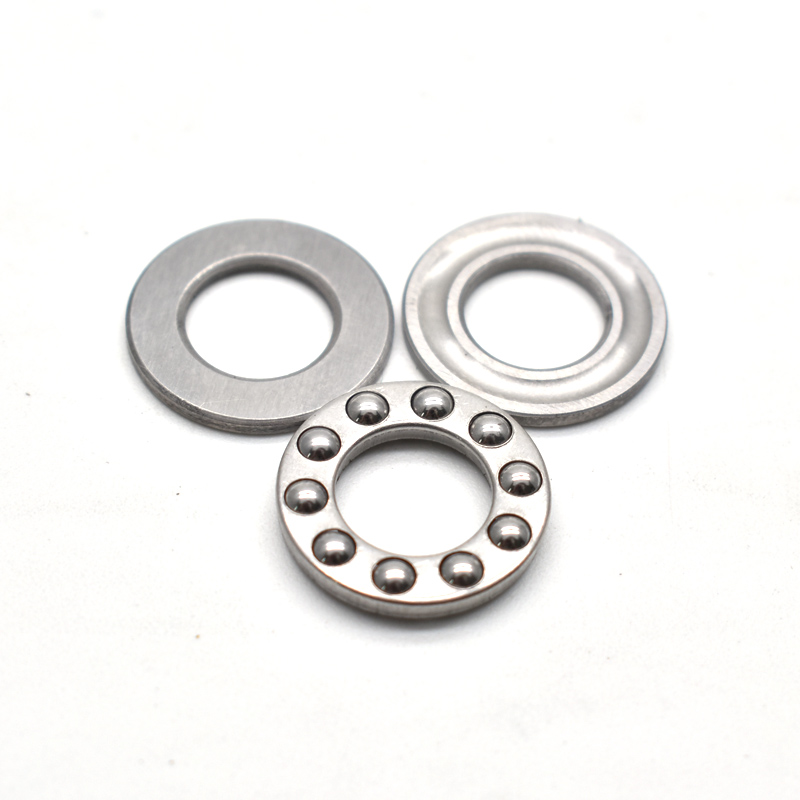

304 Stainless Steel Small Miniature Thrust Bearing Pictures
 |
 |
 |

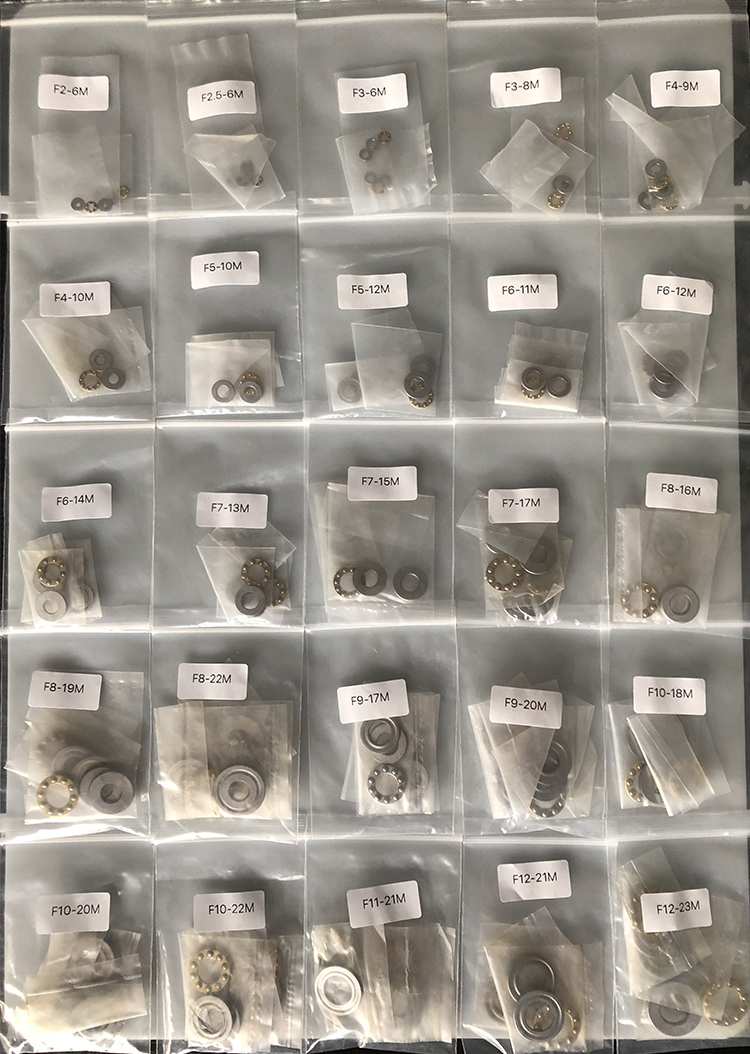

We can Produce differet type of Stainless Steel Thrust Ball Bearing for you .
| Bearings No. | d (mm) | D (mm) | H (mm) | W (KG) |
| F2.5-6 | 2.5 | 6 | 3 | 0.0007 |
| F3-8 | 3 | 8 | 3.5 | 0.001 |
| F4-9 | 4 | 9 | 4 | 0.0012 |
| F4-10 | 4 | 10 | 4 | 0.0016 |
| F5-10 | 5 | 10 | 4 | 0.0015 |
| F5-11 | 5 | 11 | 4.5 | 0.0021 |
| F5-12 | 5 | 12 | 4 | 0.0022 |
| F6-11 | 6 | 11 | 4.5 | 0.002 |
| F6-12 | 6 | 12 | 4.5 | 0.0024 |
| F6-14 | 6 | 14 | 5 | 0.0036 |
| F7-13 | 7 | 13 | 4.5 | 0.0025 |
| F7-15 | 7 | 15 | 5 | 0.004 |
| F7-17 | 7 | 17 | 6 | 0.006 |
| F8-16 | 8 | 16 | 5 | 0.004 |
| F8-19 | 8 | 19 | 7 | 0.009 |
| F9-17 | 9 | 17 | 5 | 0.0045 |
| F9-20 | 9 | 20 | 7 | 0.0089 |
| F10-18 | 10 | 18 | 5.5 | 0.006 |
| F12-21 | 12 | 21 | 5 | 0.006 |
| F12-23 | 12 | 12 | 7.5 | 0.013 |
