Thrust Ball Bearing
home

Ball Bearing

Thrust Ball Bearing

F Series 3 Piece Thrust Ball Bearing

new products

F Series 3 Piece Thrust Ball Bearing

6.1x12x4.8mm SF6-12 thrust bearings are produce with stainlee steel material ,the dimension is produced accoring to customer's requirements ,we can provide free sample for  you before order .

  • item no.:

    SF6-12
  • lead time:

    7 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    30% TT in advance ,70% TT after finish produc
  • MOQ:

    1000
products details

Stainless Thrust Ball Bearing SF6-12 Specification :


Dimension :


Inner diameter : 6.1mm

Outer diameter :12mm

Height :4.8mm

Material :stainless steel 304

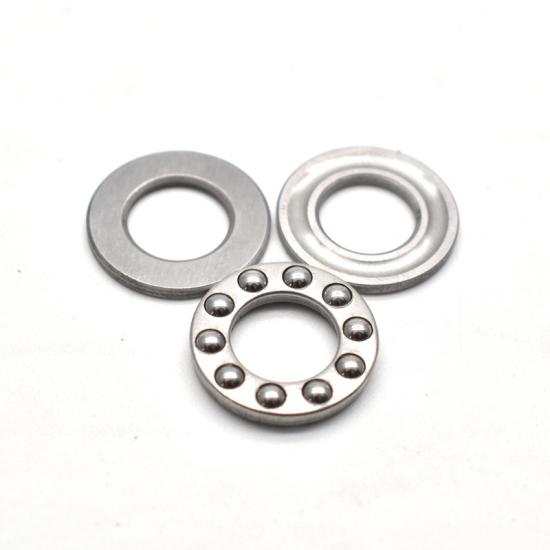

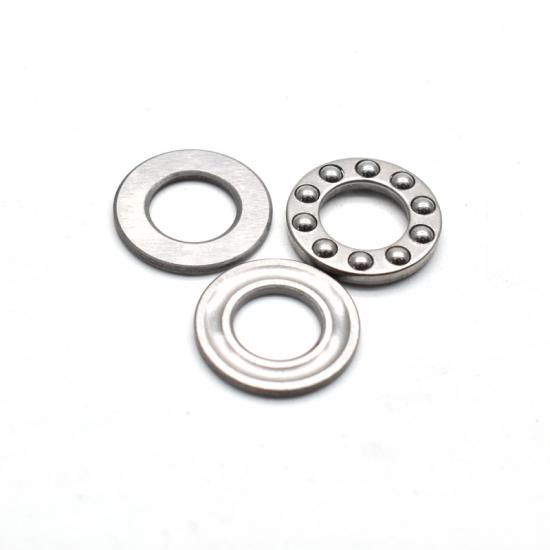

Stainless steel thrust bearing is composed of 2 thrust washers and 1 cage. The thrust washer and balls are made of stainless steel material. The cage material can be stainless steel, nylon or brass.

 thrust ball bearings
Axial Ball Thrust Bearing
Three-Piece Thrust Bearings


Three-Piece Thrust Bearings Application :

They are used in a variety of light duty higher speed axial load applications. These include pumps, valves, machine spindles, rotary tables, and drilling heads to name a few.

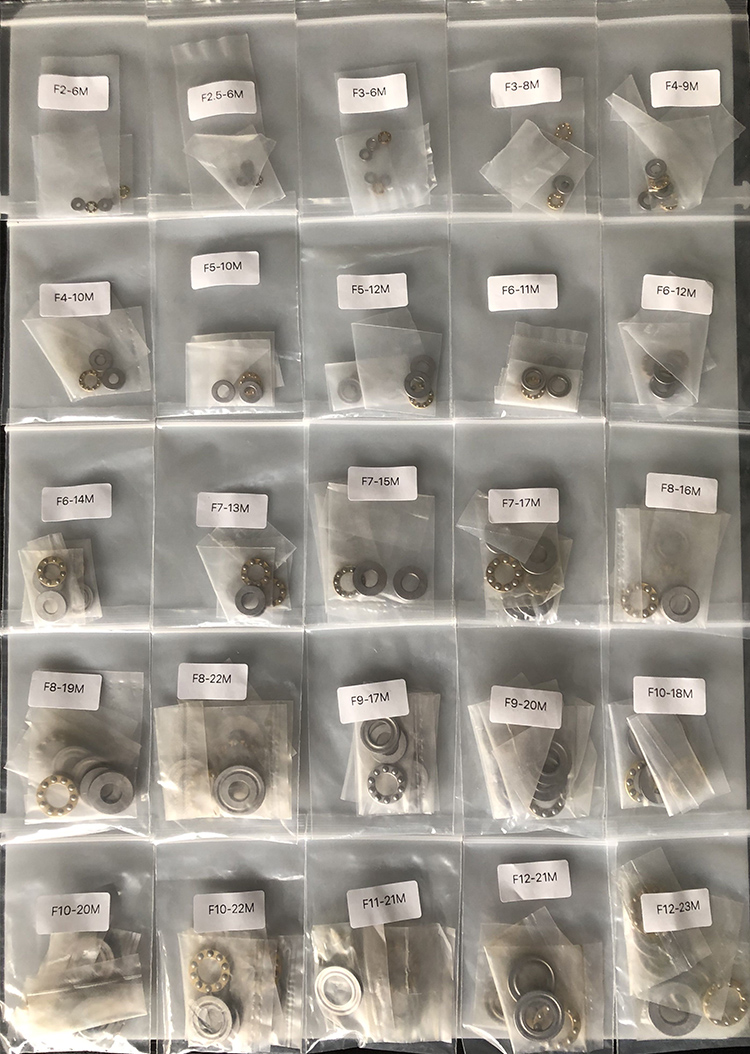

ZZ BEARINGS can produce other Stainless steel thrust bearings:

ModelNo.(steel cage) ModelNo.(brass cage) d (mm) D (mm) H (mm) W (KG)
F2.5-6 F2.5-6M 2.5 6 3 0.0007
F3-8 F3-8M 3 8 3.5 0.001
F4-9 F4-9M 4 9 4 0.0012
F4-10 F4-10M 4 10 4 0.0016
F5-10 F5-10M 5 10 4 0.0015
F5-11 F5-11M 5 11 4.5 0.0021
F5-12 F5-12M 5 12 4 0.0022
F6-11 F6-11M 6 11 4.5 0.002
F6-12 F6-12M 6 12 4.5 0.0024
F6-14 F6-14M 6 14 5 0.0036
F7-13 F7-13M 7 13 4.5 0.0025
F7-15 F7-15M 7 15 5 0.004
F7-17 F7-17M 7 17 6 0.006
F8-16 F8-16M 8 16 5 0.004
F8-19 F8-19M 8 19 7 0.009
F9-17 F9-17M 9 17 5 0.0045
F9-20 F9-20M 9 20 7 0.0089
F10-18 F10-18M 10 18 5.5 0.006
F12-21 F12-21M 12 21 5 0.006
F12-23 F12-23M 12 12 7.5 0.013
  2805 11.1 22.2 6.35 0.01

stainless steel thrust bearing



related products
SF6-12 Bearing
SF6-12 304 Stainless Steel Thrust Ball Bearing

6x12x4.5mm SF6-12 thrust ball bearings are produced with stainless steel 304 material ,we have bearing in stock ,free sample can provide for you in advance .

S51106 Bearings
S51106 Thrust Ball Bearings

30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you .

 8*22*7*9 mm Bearing
608Z Extended Inner Ring Bearing

8*22*7*9mm 608zz extended race bearing with build in space,we are produce with Chrome steel ,free sample can be provide before order .

CF5 Bearing
CF5 Cam Follower Bearing

CF5 Bolt type roller needle roller bearing are produced with Chrome steel ,we can provide sample for you test before order.

Sliding Window Bearing
608 Window Sliding Bearing Sets

We can produce window sliding sets with customized serivce ,free sample can provide for you test .

Silicon Carbide Ball Bearings
6201 Silicon Carbide Bearings

silicon carbide bearing offers the best heat and corrosion resistance of all the ceramic materials. Silicon Carbide is best used under low loads and in highly corrosive environments. and with  full complement types, silicon carbide bearing  can be used up to 1200°C working tempearture.
