Long Type Linear Ball Bearing LM6LUU

new products

Long Type Linear Ball Bearing LM6LUU

LM6LUU Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement

  • item no.:

    LM6LUU
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    20% TT in advance
  • MOQ:

    100
products details

High Precision Linear Bearing LM6LUU Introduction :

Type  Linear Ball Bearing
Number  LM6LUU
Inner Diameter  d:6mm
Outer Diameter D:12mm
Bore  35mm
Weight 0.016
Material  GCR-15 Chrome steel

Linear Bearing structure: With outer cylinder, retainer, balls, side seals;

Raw material Introduction : GCr15 bearing steel cylinder, G10 class precision ball, PA66 plastic retainer;

Cylinder metal body is heat treated and hardened to enhance to the rigidity and working life;

Both the inner bore and outer cylinder surface are ground several procedures to guarantee the precision;

Completely washed by the super sonic washing machine, pre-lubricated;

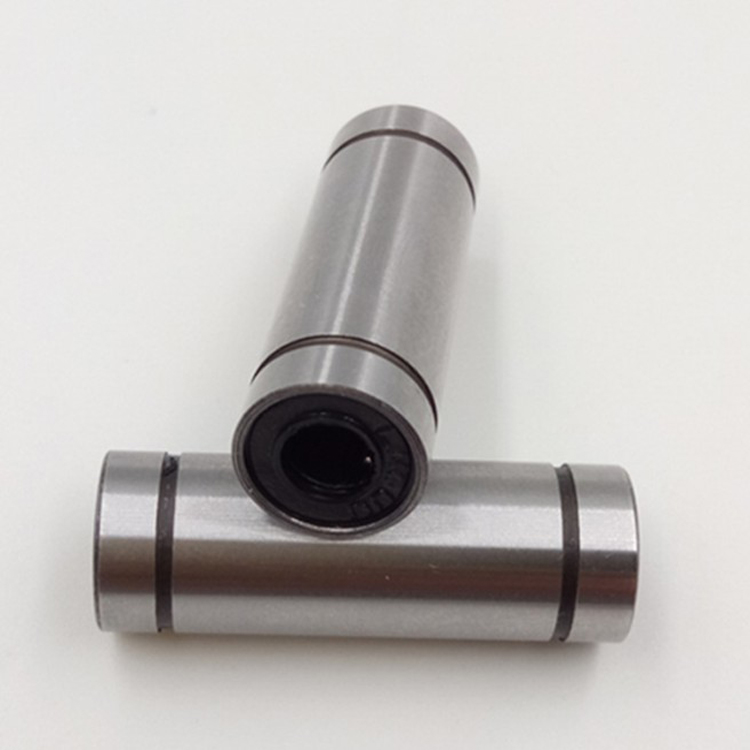

China Linear Bushing Ball Bearing Picture:

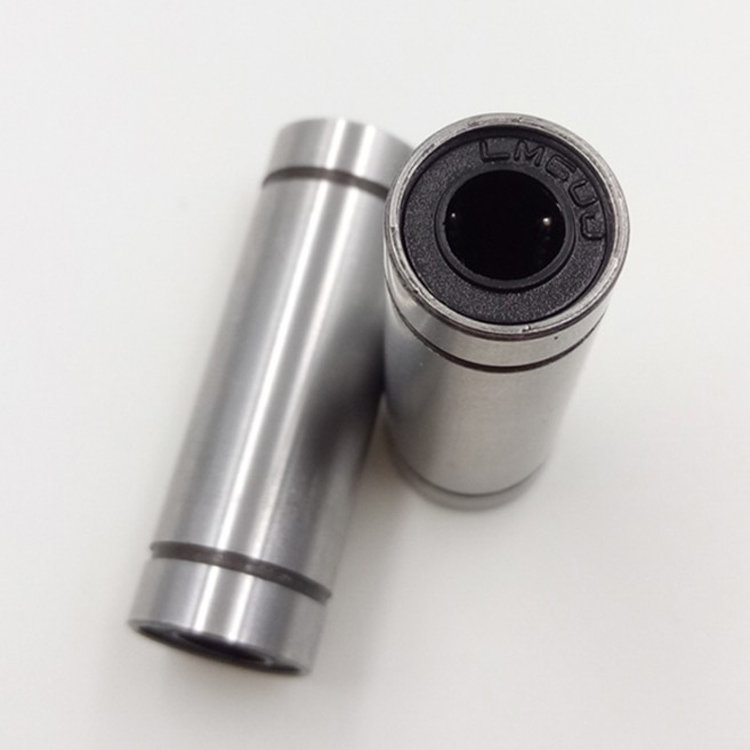

Bearing LM4LUU

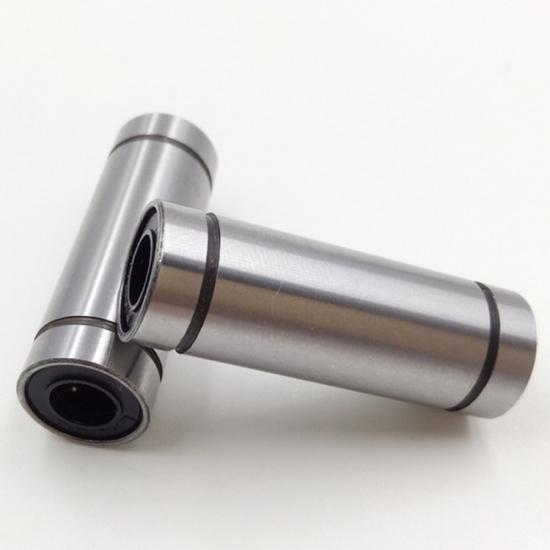

Linear Bearings Cheap


Features of Linear Bushing Bearing:


Linear bearing often used with quenching line transmission shaft, a systerm for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.



Linear Bearing Type  :

"LM"   metric standard type linear bearing

"LME"  inch standard type linear bearing


"UU"   rubber seals on the both sides of the long type linear bearing

"OP" open type linear bearing

"AJ" adjustment type linear bearing


*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)

*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type

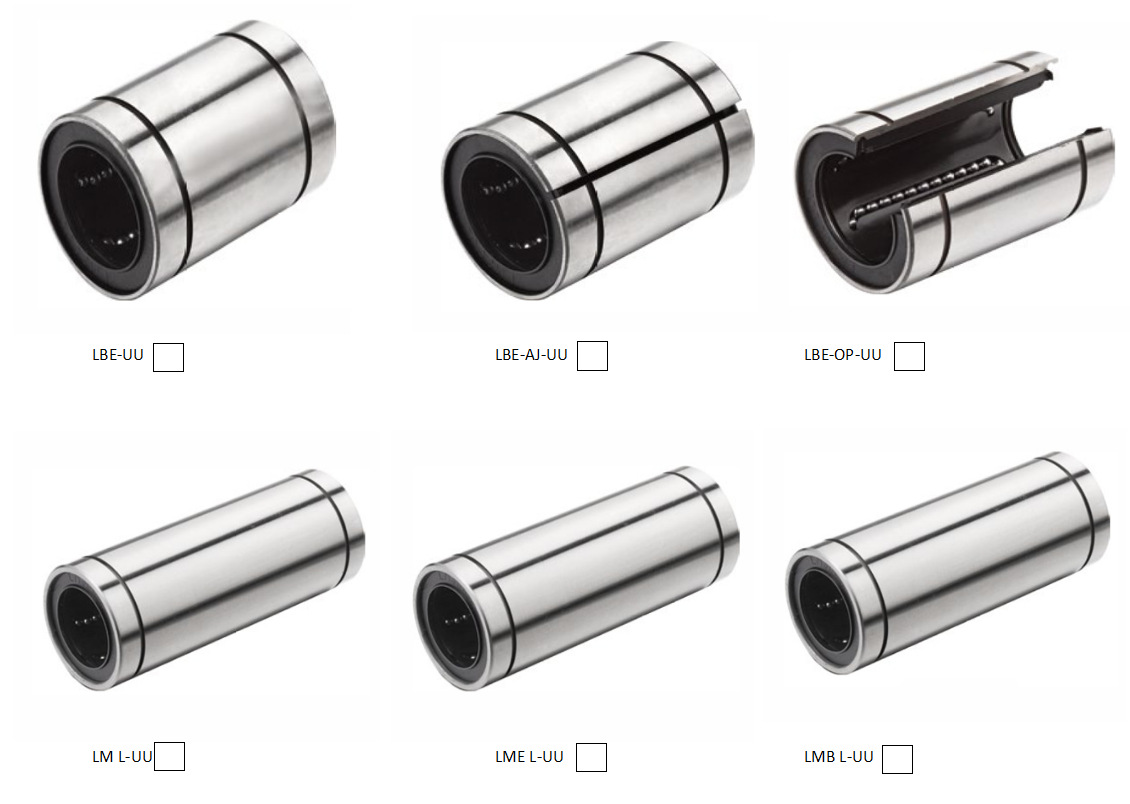

Linear-motion Bearing type
Linear-motion Bearing


Below Here Are Some Linear Bearing For Your Reference

LM 6LUU, LM 8LUU, LM 10LUU, LM 12LUU, LM 13LUU, LM 16LUU,

LM 20LUU, LM 25LUU, LM 30LUU, LM 35LUU, LM 40LUU,

LM 50LUU, LM 60LUU

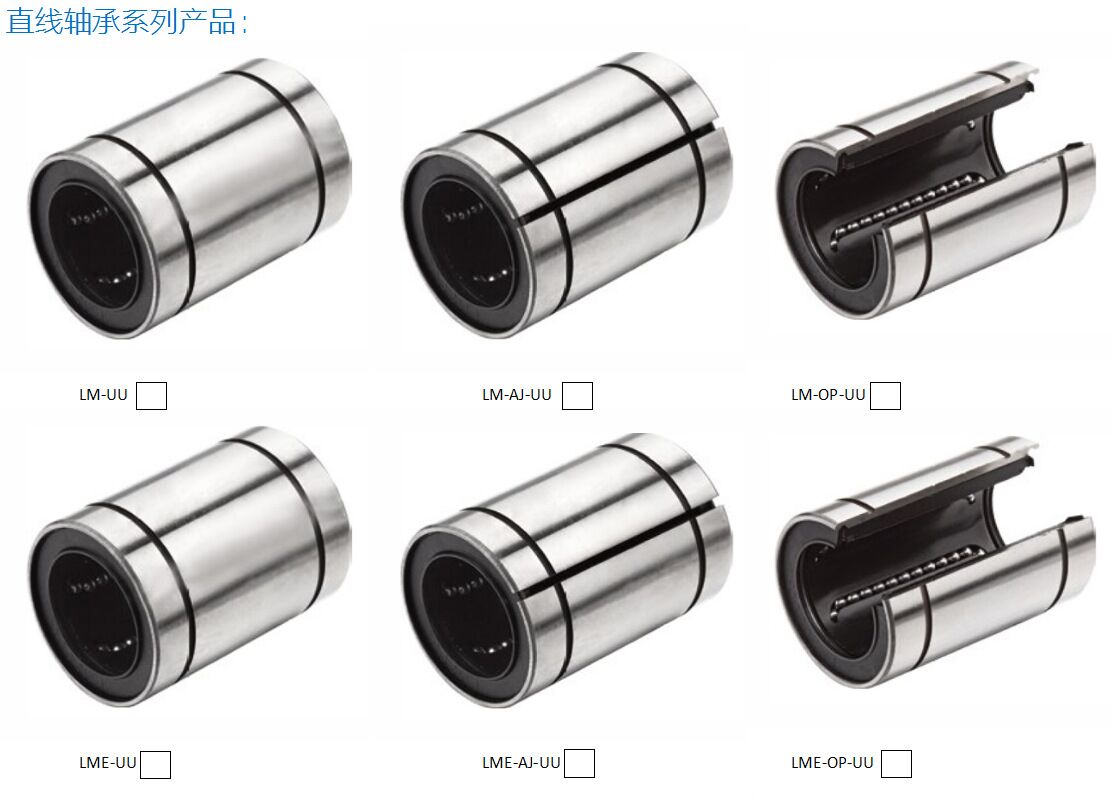

linear motion bearing types

Application of High Quality Linear Bearing:
    Linear bearings are more and more widely used in precision equipment such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, machine tools, CNC machine tools, automobiles and digital 3D coordinate measuring equipment Or in the special machinery industry.


We Are Linear Bearing Manufacturers,Working With Us Have Below Advantages :

1,Low MOQ: Can meet your small order request.

2,OEM accepted: Can make products as per your design.what you need to do is sending us your drawings

3,Good service: Treat every client as friend.

4,Good quality: Have strict quality inspection system. Good reputation in the market.


Mark:if you need the matched Linear motion slide units,please feel free to contact us
