Linear Slide Bearings LM16UU

new products

Linear Slide Bearings LM16UU

China cheap 8mm linear bearing LM8UU with material Chrome steel GCr15 can use for 8mm linear shaft.

  • item no.:

    LM16UU
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    20% TT in advance
  • MOQ:

    100
products details

High Precision Linear Bearing LM16UU Introduction :

Type  Linear Ball Bearing
Number  LM16UU
Inner Diameter  d:16mm
Outer Diameter D:28mm
Bore  37mm
Weight 0.069
Material  GCR-15 Chrome steel

Linear Bearing structure: With outer cylinder, retainer, balls, side seals;

Raw material Introduction : GCr15 bearing steel cylinder, G10 class precision ball, PA66 plastic retainer;

Cylinder metal body is heat treated and hardened to enhance to the rigidity and working life;

Both the inner bore and outer cylinder surface are ground several procedures to guarantee the precision;

Completely washed by the super sonic washing machine, pre-lubricated;

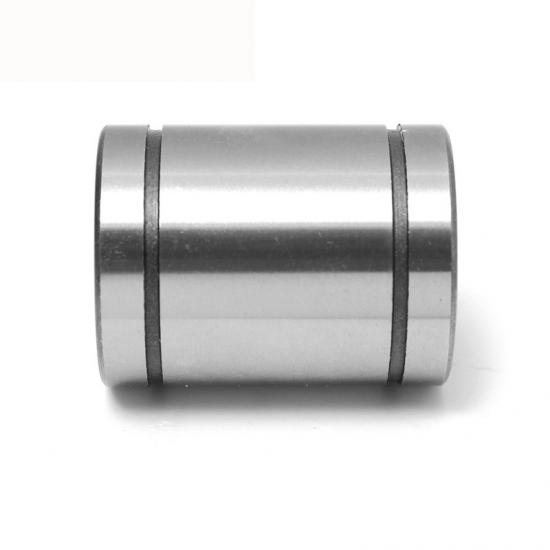

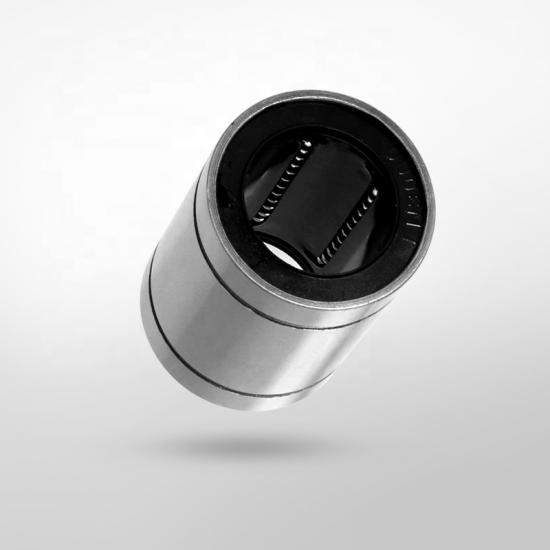

China Linear Bushing Ball Bearing Picture:


linear ball bearing
linear bearing lm25uu


Features of Linear Bushing Bearing:


high precision and rigidity,

low friction, ease of assembly and replacement, good interchangeability;

Good quality at affordable rates, price is competitive;



Linear Bearing Type  :

"LM"   metric standard type linear bearing

"LME"  inch standard type linear bearing


"UU"   rubber seals on the both sides of the long type linear bearing

"OP" open type linear bearing

"AJ" adjustment type linear bearing


*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)

*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type

Linear-motion Bearing type
Linear-motion Bearing


Below Here Are Some Linear Bearing For Your Reference

Model Inner size(mm) Outer size(mm) Length(mm) Weight(kg/pc)
LM6UU 6 12 19 0.007
LM8UU 8 15 24 0.015
LM10UU 10 19 29 0.03
LM12UU 12 21 30 0.032
LM13UU 13 23 32 0.043
LM16UU 16 28 37 0.069
LM20UU 20 32 42 0.087
LM25UU 25 40 59 0.22
LM30UU 30 45 64 0.25
LM35UU 35 52 70 0.39
LM40UU 40 60 80 0.585
LM50UU 50 75 100 1.58
LM60UU 60 90 110 1.86
LM80UU 80 120 140 4.42


Application of High Quality Linear Bearing:
    Linear bearings are more and more widely used in precision equipment such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, machine tools, CNC machine tools, automobiles and digital 3D coordinate measuring equipment Or in the special machinery industry.


We Are Linear Bearing Manufacturers,Working With Us Have Below Advantages :

1,Low MOQ: Can meet your small order request.

2,OEM accepted: Can make products as per your design.what you need to do is sending us your drawings

3,Good service: Treat every client as friend.

4,Good quality: Have strict quality inspection system. Good reputation in the market.


Mark:if you need the matched Linear motion slide units,please feel free to contact us
