Forklift Mast Bearings
home

Auto Bearing

Forklift Mast Bearings

Forklift Mast Guide Bearing MG307 2RS

new products

Forklift Mast Guide Bearing MG307 2RS

Bearing MG307 2RS with size 35*108*25mm are produce with high quality chrome steel can used for forklift.

  • item no.:

    MG307 2RS
  • lead time:

    15 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    30% TT in advance ,the 70% against copy of BL
  • MOQ:

    100
products details

Forklift Bearings MG307 2RS Introduction :

Material :Chrome steel GCr15

Dimension : 35*108*25mm

Cr:15.94 KN

Cor:7.88 KN

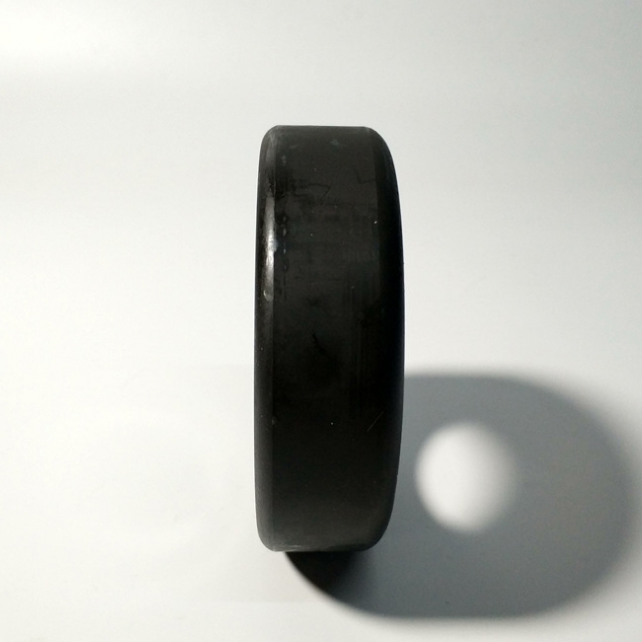

China High Quality MG307 2RS Forklift Mast Roller Picture :

Mast Roller Bearings

Mast Guide Bearing MG307 2RS



Mast Roller Bearing Features:

1. Forklift bearing is used to guide for linear movement of forklift truck’s mast.

2. It is a core part of the mast and has a role of guide and retain movable fork carriage to mast.

3. It is designed to special bearing for withstand repeated extreme impacts and heavy radial load in harsh environments.

4. Special designed thicker outer ring, closed-die forged materials and bearing-exclusive case hardening heat treatment makes more impact resistance and durability.



Bearing Application :

Bearings are very important accessories on forklifts. Forklifts are widely used in factory warehouses, stations, airports, mechanized loading and unloading, stacking and short-distance transportation play an important role.

forklift bearing


We Can Produce Other Bearing For Forklift :

forklift mast bearing

Part number d D b B R Cr. Cor. Weight
  mm mm mm mm mm dynamic static lbs.
MG205-1E 12.6 57 20.5 26.95 1 16100 11000 0.75
MG205-2E 13 52 18 24 2 16100 11000 0.75
MG305-7E 17 72.8 33.6 25 3 27000 18800 1.45
MG305DDTY 25 62 19.5 18 3 43690 45620 0.75
MG205FF 25 65 15 21 6 14020 7880 0.75
MG205FFX 25 67 15 26 4.5 14020 7880 0.85
MG305DDY 25 71 17 21 2 22390 11490 0.9
MG305DDH 25 72 28 28 2 61240 65950 1.45
MG305DD 25 76.2 17 25.4 8.38 20510 11120 1.25
MG305DDB 25 76.2 17 25.4 8.38 20510 11120 1.25



related products
Forklift Mast Wheels
Forklift Mast Bearings MG20A1-1

Forklift  Bearings MG20A1-1 with dimensions 20*65*20mm is one row forlift mast roller can widely use in forklift trucks.

Forklift Chain Sheave
Forklift Chain Pulley CG25A1-1

Bearing CG25A1-1 with size 25*160*40mm ,can use for Forklift Chain Sheave .

Roller Chain Bearing
Chain Roller Bearing CG35B1-1

Bearing CG35B1-1 with size 35*115*45mm ,can use for Forklift Chain Sheave .

MRS901 Bearing
MRS901 Forklift Mast Bearing

30*70*22mm MG30A2-14 Forklift Spare Parts Forklift Mast Bearing MRS901,are produce with Chrome steel ,we have bearings in stock now .

980811 Bearing

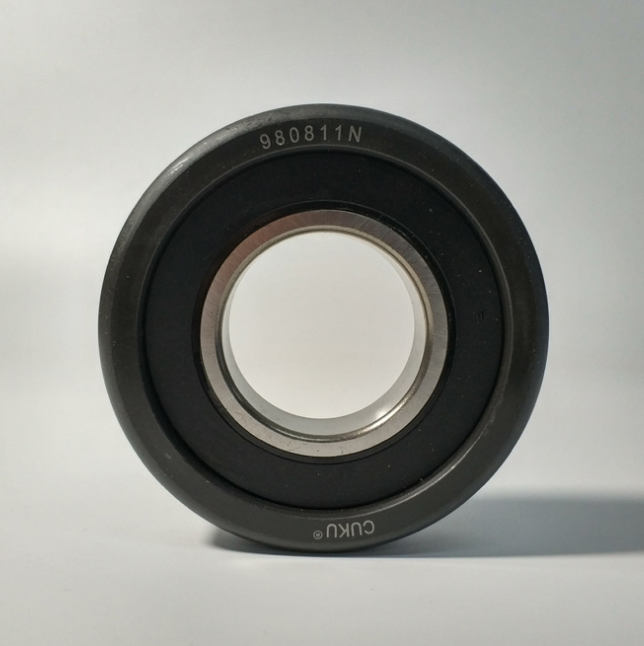

Forklift Mast Bearing 980811
