LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
Bearing CG25A1-1 with size 25*160*40mm ,can use for Forklift Chain Sheave .
item no.:
CG25A1-1lead time:
15 DAYSproduct orgin:
Chinashipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIpayment:
30% TT in advance ,the 70% against copy of BLMOQ:
100Bearing CG25A1-1 Introduction :
Material :Chrome steel GCr15
Dimension : 25*160*40mm
Cr:44.93KN
Cor:27.22 KN

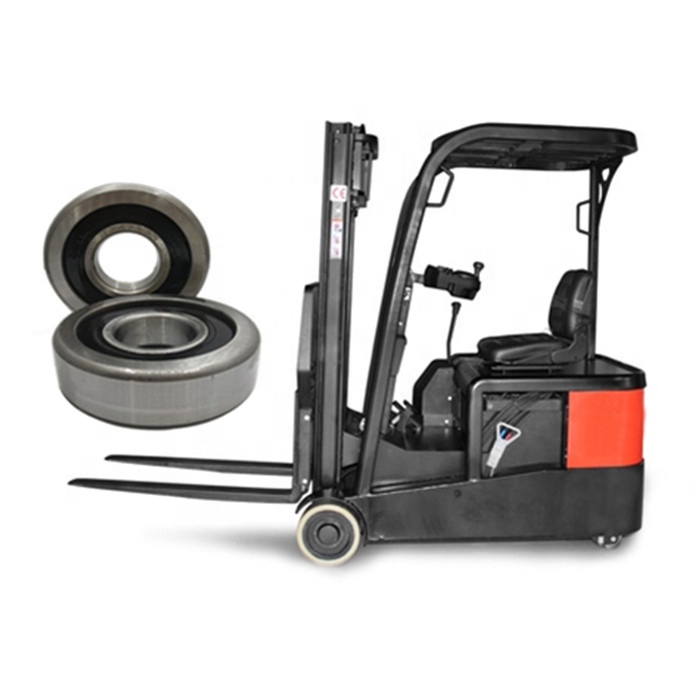

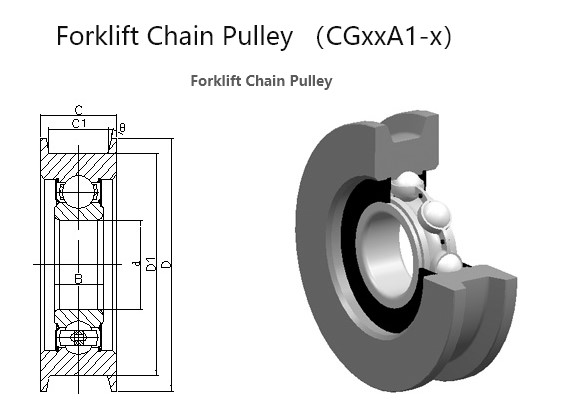

Forklift Chain Pulley Picture :
 |
 |
Bearing Features:
1. Forklift bearing is used to guide for linear movement of forklift truck’s mast.
2. It is a core part of the mast and has a role of guide and retain movable fork carriage to mast.
3. It is designed to special bearing for withstand repeated extreme impacts and heavy radial load in harsh environments.
4. Special designed thicker outer ring, closed-die forged materials and bearing-exclusive case hardening heat treatment makes more impact resistance and durability.
Bearing Application :
Bearings are very important accessories on forklifts. Forklifts are widely used in factory warehouses, stations, airports, mechanized loading and unloading, stacking and short-distance transportation play an important role.
We Can Produce Other Bearing For Forklift :
|
Bearing No. |
Size(mm) |
Rated load(KN) |
Reference model |
|
|
d*D/D1*C/C1*B |
Cr |
Cor |
||
|
CG25A1-1 |
25*160/140*40/24*30 |
44.93 |
27.22 |
|
|
CG30A1-1 |
30*94/80*31/20*19 |
27.0 |
15.19 |
|
|
CG30A1-6 |
30*127/120*32/20*19 |
27.0 |
15.19 |
|
|
CG30A1-7 |
30*105/85*30/20*19 |
27.0 |
15.19 |
|
|
CG30A1-9 |
30*82/70*30/22*16 |
19.46 |
11.31 |
780206V |
|
CG30A1-12 |
30*87/75*34/22*26 |
27.0 |
15.19 |
780606K |
|
CG35A1-2 |
35*105/90*30/21*21 |
33.36 |
19.21 |
|
|
CG35A1-10 |
35*109/90*30/20*21 |
33.36 |
19.21 |
|
|
CG35A1-16 |
35*90/80*29/21*21 |
33.36 |
19.21 |
|
|
CG35A1-35 |
35*97/81.6*30/20*21 |
33.36 |
19.21 |
|
|
CG35A1-38 |
35*97/83*30/21*21 |
33.36 |
19.21 |
|
|
CG35A1-41 |
35*119/101.75*38.3/28.6*21 |
33.36 |
19.21 |
|
|
CG40A1-5 |
40*113/95*32/21*23 |
40.75 |
24.01 |
780708K1 |
|
CG40A1-6 |
40*118/100*37/27*23 |
40.75 |
24.01 |
|
|
CG40A1-7 |
40*118/100*37/28*23 |
40.75 |
24.01 |
|
|
CG40A1-8 |
40*123/105*42/31*19 |
25.6 |
18.1 |
|
|
CG40A1-9 |
40*131/113*48/36*25 |
35.07 |
23.18 |
|
|
CG40A1-10 |
40*134/115*39/29*27 |
50.39 |
37.97 |
780408 |
|
CG40A1-11 |
40*134/115*43/32*27 |
50.39 |
37.97 |
780408H |
