6006 High Temp Full Complement Bearing

new products

6006 High Temp Full Complement Bearing

Silicon Carbide Full Complement Ball Bearing offers the best heat and corrosion resistance of all the ceramic materials. Silicon Carbide is best used under low loads and in highly corrosive environments. and with  full complement types, silicon carbide bearing  can be used up to 1200°C working tempearture.

  • item no.:

    6006
  • lead time:

    7 days after confirm order
  • product orgin:

    China
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • color:

    black
  • MOQ:

    50
products details

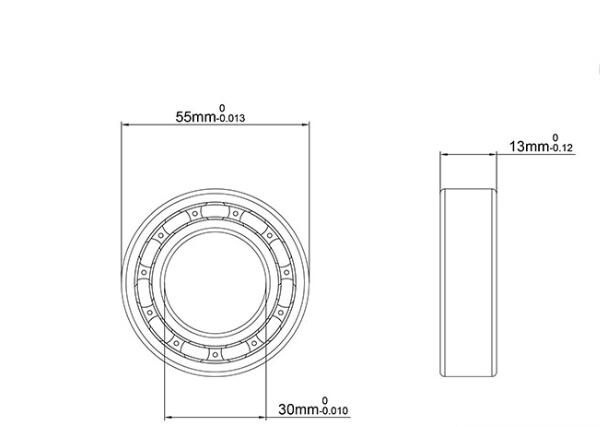

6006 Full Complement Bearing Specification :


6006 bearing

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open,ZZ,RS
Part Number 6006
Bore Dia (d) 30 mm
Outer Dia (D) 55mm
Width (B) 13mm
Ring Material Silicon Carbide Ceramic
Ball Material Silicon Carbide Ceramic
Cage Material Full balls without cage
Seals Material PTFE
Dynamic radial (Newtons) 1360
Static radial (Newtons) 610
Max Speed (X1000 RPM) 16.2
Lubrication Without
Shaft Mount Type Press Fit
Temperature Range -80° to 1200 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 to 0.0005"
Weight (g) 14.8

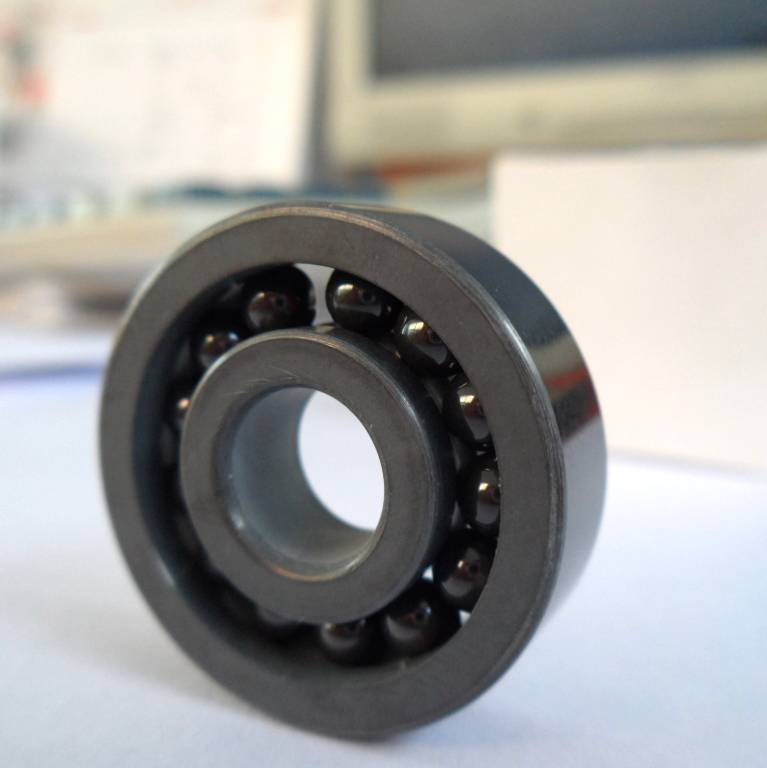

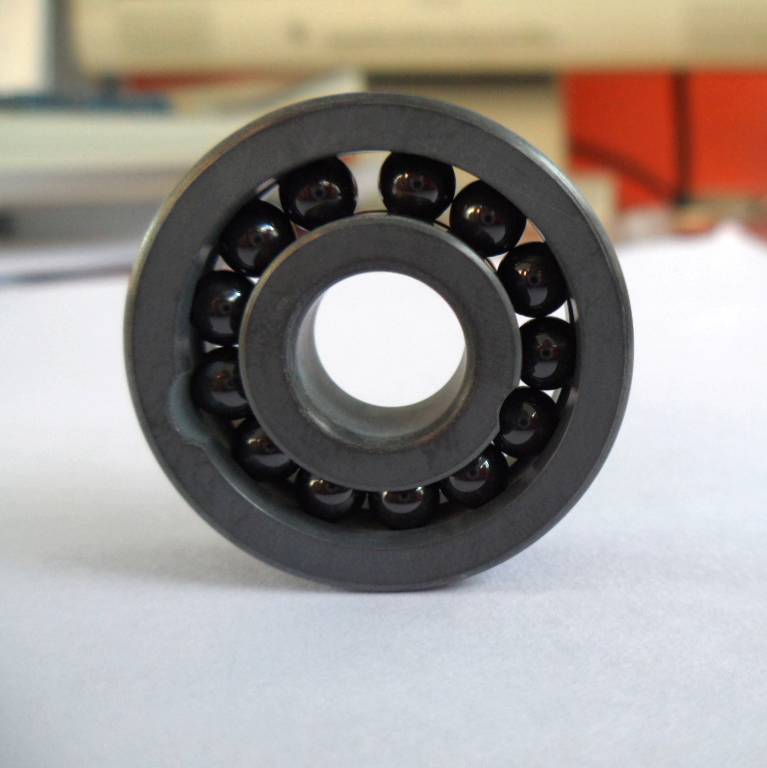

Full Complement Ceramic Bearing Pictures :



6201 SIC Bearing


SIC Full Complement Ball Bearing Features :

1).High speed bearings:12000rpm--75000rpm

2).High temperature-resistant bearing:100°C--800°C.It can been applied in kiln,plastic,steel and other equipments that can bear high temperature

3).Corrosion-resistant bearings

4).Electric-insulated bearings

5).Vacuum bearings:self-lubricating without



Ceramic SIC Bearing Application :

Full ceramic sic bearing could be used in following industries: chemical, semi-conductor, valve & pump, food, electronic, medical, vacuum, refining, insulation, etc.

Note:

Full ceramic bearing is not suitable for heavy loading, impact loading and variable loading application.

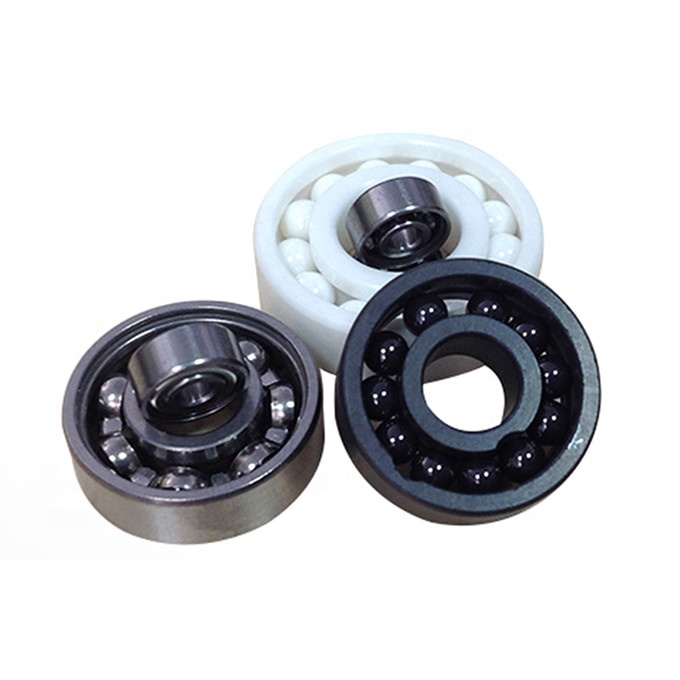

We Can Produce Other Ceramic Material For Full Complement Ball Bearing:

Material: ZrO2, Si3N4, SiC and Al2O3, etc.

1.ZrO2 Full Ceramic Bearing

Zirconium oxide ceramic bearing(ZrO2):the rings and balls are all zirconium oxide ceramics with cages made by PTFE,nylon strengthened by glass fibles.


2. Si3N4 Full Ceramic Bearing

Full ceramic bearing made with Si3N4 have some better performance than Zr02, the rings and balls made by full ceramic material: Si3N4, as a standard constructure, the cage made by PTFE, generally we also made the cage with GFRPA66-25, PEEK, PI, Phonemic Textiles Tube, etc.


Compared with the material of ZrO2, the Si3N4 ceramic bearings could endure heavier load and could be used in higher temperature environment.

Full Complement Ball Bearing


related products
Waffle Roasting Machine Bearing
6205 Waffle Roasting Machine Bearing With 500 °C

6205ZZ bearing size 25*52*30mm ,with ceramic balls and high temp alloy steel material,and we packed with Japan grease DOWCORNING grease can used in high temp area such as Waffle Roasting Machinery .

6203 High Temperature Bearing
6203 High Temperature Bearing 250 Degree

6203 high temperature bearings mainly refer to the common bearing structure, using high temperature resistant materials, such as high temperature grease; and the bearing clearance is much larger than ordinary bearings , so it is usually not suitable for high speed operation, it is a high temperature low speed bearing. High temperature bearings are widely used in high temperature operation machinery such as metallurgy, kiln, glass, blast furnace, painting equipment.

Bearing Temperature
6316 Ball Bearing Temperature 500 °C With DOW CORNING Grease

6316 Ball Bearing size is  80*170*39mm,we use high quality material alloy and Ceramic and packed with JAPAN brand grease DOW CORNING can work at temperature moer than 500 ° C。

Full Ceramic Bearing R188
High Temperature Full Ceramic Balls Bearing R188

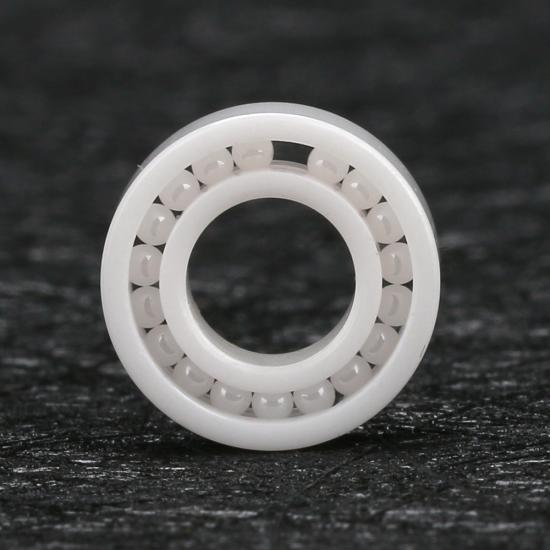

600 °C R188 Zro2 full balls ceramic bearing with size 6.35*12.7mm *3.18mm ,this bearing are produce with full balls ,and  with material ceramic ZrO2 and PTFE cage,which can working at temperature at 600 degree .
