LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more

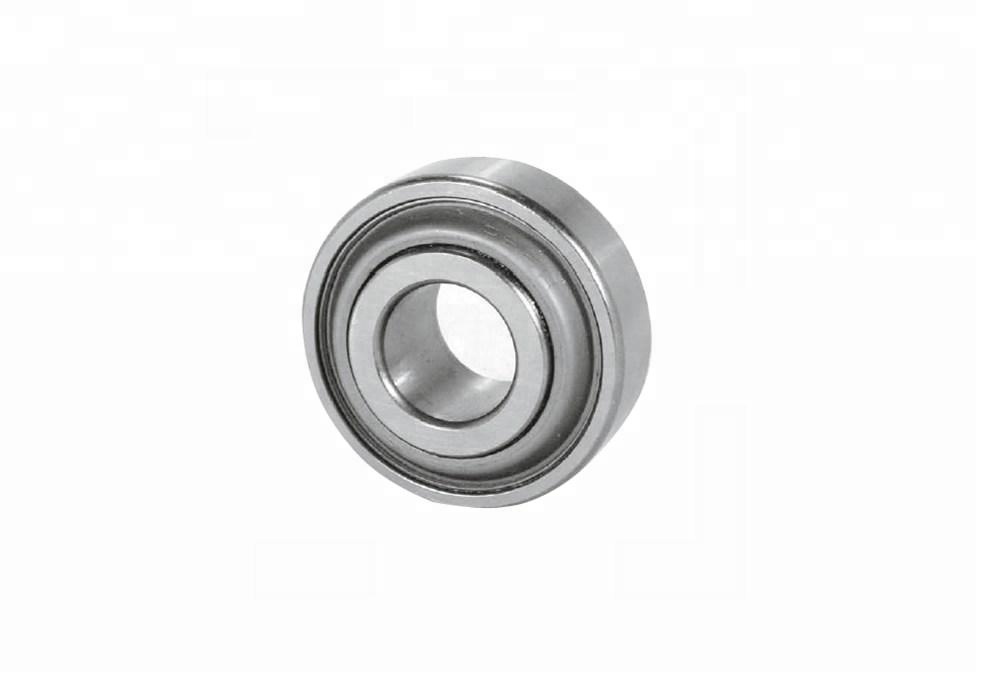

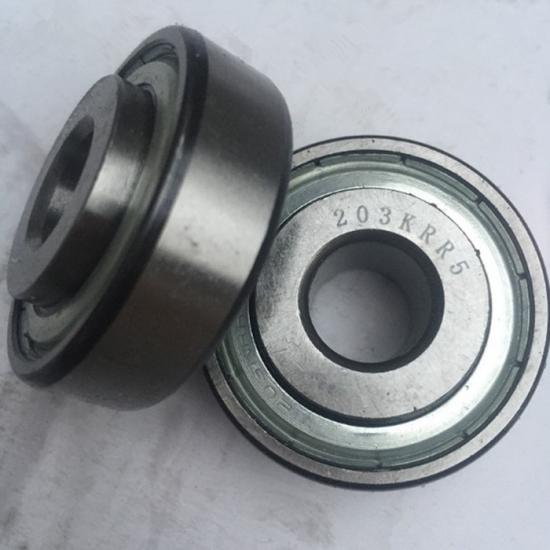

203KRR5 agbearing with round bore and the size 0.515" x 40mm x 12mm x 0.72" and this bearings are produce with Chrome steel material .
item no.:
203KRR5lead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:
100203KRR2 Bearing Introduction :

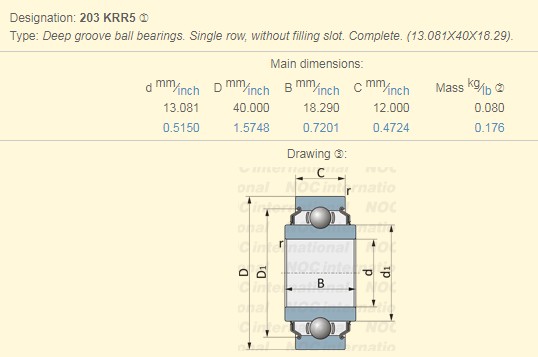

DIMENSIONS:
BORE: .515" Round
O.D. 1.57" Flat
IR Width: .72"
OR Width: .472"
Material :Chrome steel Gcr15
 |
 |
203KRR5 Bearing also known as:
FAFNIR: 203KRR5
BCA: 203RRAR8
IHC: 611928R91
Tye: 522-20SP
AC: 562134
Round Bore Bearing 203KRR5 can be used in Disc opener for bridger planter. Press wheel for Tye grain drill. Also fits IHC Windrower, AC, JD, Case and other applications.
We can produce other round bore high quality ag bearing .
| Bearing No. | Dimensions(mm) | |||
| d | D | B | C | |
| 203KRR2 | 16.256 | 40 | 18.29 | 12 |
| 203KRR5 | 13.081 | 40 | 18.29 | 12 |
| 203KRR7 | 17 | 40 | 16.61 | 12 |
| 204KRNP6 | 15.57 | 45.22 | 28.57 | 15.49 |
| 205KRR6 | 13.08 | 52 | 34.92 | 15 |
| 205KRR7 | 12.7 | 52 | 38.1 | 15 |
| 206KRR8 | 30 | 62 | 24 | 16 |
| 207KRR | 35 | 72 | 25 | 17 |
| 207KRR14 | 31.826 | 72 | 25 | 17 |
| 207KYY | 35 | 72 | 25 | 17 |
| 205KR4 | 25.413 | 52 | 25.4 | 15 |
| 206KR4 | 30 | 62 | 24 | 16 |
| 205PP9 | 19.05 | 52 | 34.92 | 15 |
| 205PP10 | 15.875 | 52 | 34.92 | 15 |
| 205PP11 | 25.4 | 52 | 30.15 | 15 |
| 205PP12 | 15.875 | 52 | 38.1 | 15 |
| 206KRR13 | 19.05 | 62 | 24 | 16 |
| W208PP10 | 38.113 | 80 | 42.86 | 21 |
| 208KRR2 | 40 | 80 | 27 | 21 |
| 209KRR3 | 45 | 85 | 27 | 21 |
| 210KRR | 50 | 90 | 30 | 20 |
| 212KRR | 60 | 110 | 36 | 22 |
| GW210PP9 | 49.4 | 90 | 36.53 | 23 |
| GW216PP5 | 63.88 | 140 | 63.5 | 30 |
202NPP9 with size 0.505" x 1.5" x 0.4331" are made with Chrome steel material .
203KRR2 bearing with round bore and the size is0.6400 in ID, 40 mm OD, 0.7200 in Width and this bearings are produce with Chrome steel material .
203JD bearing is one of radial insert bearing ,these bearings are produce with material Chrome steel Gcr15 ,and can widely use for agricultural parts such for John Deere 7300 Planter Wheel.
Farming Planter Bearing 204RY2 with round bore and it is belong to single row deep groove ball bearing and these bearings are produce with Chrome steel Gcr15 and the dimension is 16.027 x 45.225 x 18.669 / 15.494 mm.
20X47X17.7mm 204 KRR bearings are produce with Chrome steel Gcr15 ,we have this bearings in stock now ,free sample can be provide for you test first .
13.081*40*12mm Q203PPAH05 Bearing can used for Seeding Machine .
