LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more

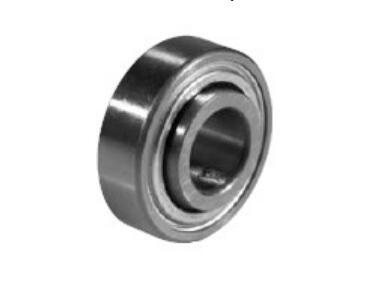

203JD bearing is one of radial insert bearing ,these bearings are produce with material Chrome steel Gcr15 ,and can widely use for agricultural parts such for John Deere 7300 Planter Wheel.
item no.:
203JDlead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:
100Ag Bearing 203JD Introduction :
Material :Chrome steel

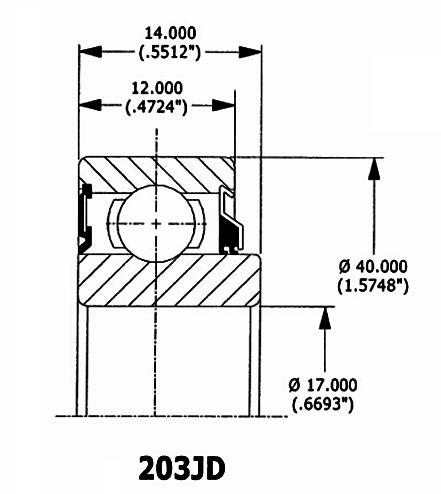

Dimensions :
BORE: .669" Round (17mm)
O.D. 1.574" Flat（40mm）
IR Width:0 .55"(14mm)
OR Width:0 .472"(12mm)
Other OEM Number :
FAFNIR: 203K
FAFNIR: 203KYP2
BCA: 5X0366LUL
IHC: ST620
IHC: 1969300C & 80437C91
John Deere: AA34132 & AA35638
203JD Farm Bearings Application :
Can be fits with John Deere 7300 Planter Wheel & IHC Model 296 & 386 Planter Disc Opener
ZZ BEARING is Ag bearing manufacturer in China ,we can produce different bearings :
| Bearing No. | Type | d | D | Be | Bi | Wt. kg |
| mm | mm | mm | mm | approx. | ||
| 203-KRR-AH05 | 4 | 13 | 40 | 12 | 18.3 | 0.09 |
| 203KRR5 | 1 | 13.081 | 40 | 12 | 18.288 | 0.1 |
| 202-KRR | 4 | 15 | 35 | 11 | 14.4 | 0.05 |
| 203KR2 | 3 | 15.883 | 40 | 12 | 14 | 0.082 |
| 203-KRR-AH02 | 4 | 16.2 | 40 | 12 | 18.3 | 0.07 |
| 203KRR2 | 1 | 16.26 | 40 | 12 | 18.288 | 0.073 |
| BB203KRR2* | 1 | 16.26 | 40 | 12 | 18.288 | 0.073 |
| BB203KRR2FD^ | 4 | 16.26 | 40 | 12 | 18.288 | 0.077 |
| 203KRR7 | 1 | 17 | 40 | 12 | 16.612 | 0.082 |
| 203-KRR | 4 | 17 | 40 | 12 | 18.3 | 0.07 |
| 204KR2 | 3 | 19.063 | 45.225 | 15.494 | 15.494 | 0.107 |
| 202NPP9 (202FFH8) | 12.827 | 38.1 | 11 | 11 | 0.064 | |
| 202RRE | 15 | 35 | 11 | 22.352 | 0.061 | |
| CF5202-2RST-8 | 12.7 | 38.2 | 15.9 | 15.9 | 0.078 | |
| 203JD | 17 | 40 | 12 | 14 | ||
| 203KRR3 | 15.951 | 50.8 | 15 | 15 | ||
| 203KRR6 | 16.256 | 47 | 12 | 18.288 | 0.13 | |
| 203NPP9 | 15.9 | 40 | 12.95 | 12.95 | ||
| 5203KYY2 | 16.256 | 40 | 39.12 | 44.12 | ||
| 204JY3 | 16.053 | 45.225 | 15.494 | 18.669 | 0.118 | |
| 204RY2 | 16.027 | 45.225 | 15.494 | 18.669 | 0.118 | |
| 204KRD4 | 16 | 47 | 14 | 17.5 | 0.135 | |
| 204RR6 | 19.063 | 45.225 | 15.49 | 15.49 | ||
| 204RR7 | 19.18 | 45.225 | 15.49 | 15.49 | ||
| 204RR8 | 16.03 | 45.225 | 15.49 | 15.49 | ||
| 204KRR14 | 1 | 16.027 | 47 | 15 | 18.288 | 0.142 |
| Z9504-2RST | 19.05 | 45.225 | 15.494 | 15.494 | 0.12 | |
| 205KRP2 | 19.202 | 52 | 15 | 21.107 | ||
| 205KR3 | 19.08 | 52 | 17.78 | 16.26 | ||
| 205KRR6 | 13.081 | 52 | 15 | 34.925 | ||
| 205KRR7 | 13 | 52 | 15 | 38.1 | 0.504 | |
| 205KP6 | 4 | 19.202 | 52 | 17.78 | 23.393 | |
| 205KP8 | 19.2 | 52 | 15 | 18.288 | ||
| 205KYY3 | 19.202 | 63.5 | 25.4 | 26.975 | ||
| 205PP8 | 12.964 | 52 | 15 | 34.925 | ||
| 205PP9 | 19.202 | 52 | 15 | 34.925 | ||
| 205PP10 | 16 | 52 | 15 | 34.925 | ||
| 205PP12 | 16.129 | 52 | 15 | 38.1 | ||
| 206KPP16 | 19.177 | 62 | 16 | 24 | ||
| SL 5316 2T | 16 | 53.086 | 18.288 | 19.4 |
202NPP9 with size 0.505" x 1.5" x 0.4331" are made with Chrome steel material .
203KRR2 bearing with round bore and the size is0.6400 in ID, 40 mm OD, 0.7200 in Width and this bearings are produce with Chrome steel material .
203KRR5 agbearing with round bore and the size 0.515" x 40mm x 12mm x 0.72" and this bearings are produce with Chrome steel material .
Farming Planter Bearing 204RY2 with round bore and it is belong to single row deep groove ball bearing and these bearings are produce with Chrome steel Gcr15 and the dimension is 16.027 x 45.225 x 18.669 / 15.494 mm.
20X47X17.7mm 204 KRR bearings are produce with Chrome steel Gcr15 ,we have this bearings in stock now ,free sample can be provide for you test first .
13.081*40*12mm Q203PPAH05 Bearing can used for Seeding Machine .
