Non-standard Bearing
home

Non-standard Bearing

U Groove Bearing

new products

U Groove Bearing

Special ball bearings S628 with material stainless steel and U groove outer ring ,with this design this bearings can work well in different guide track.

  • item no.:

    U-628
  • lead time:

    7-30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • payment:

    30% TT in advance ,70% TT finish production
  • MOQ:

    1000
products details


U Groove Special Bearing Introduction :

Bearing No:  S628ZZ

Type: Deep Groove U groove

Dimension: inner diameter 8mm *Outer diameter* 31.4mm* Width 9.6mm

Material: Chrome steel GCr15

Weight: 0.029kg

Grade: ABEC-1

Seals Type: ZZ

Grease: 30% ~ 40% MULTEMP SRL

Temperature: -40℃ to + 110℃

Bearing Capacity: 3520N

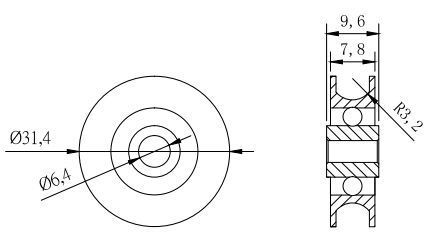

U Groove Ball Bearing Size :

U Groove Bearing

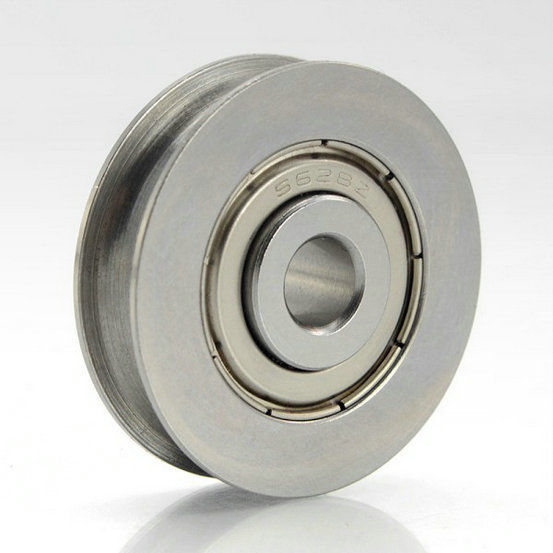

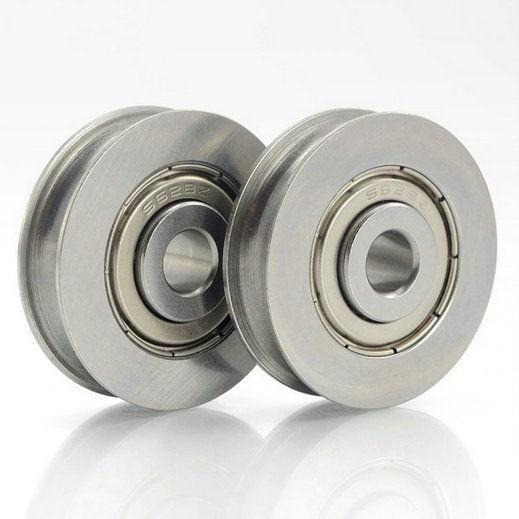

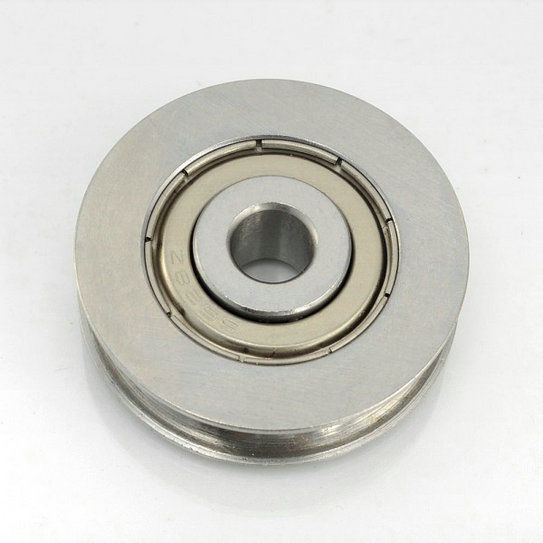

China Factory Customized Bearing Picture :

non standard bearing
U groove bearing

U groove Ball bearing Features:

U groove bearing produced with mateial stainless steel are rust-proof ,low noise, stable performance and durable features.


High Qulity Non-standard Bearing Application :

S628ZZ U groove ball bearings with material Stainless steel can be well used in desktop and industrial printers, ATMs, robotics,cable pulling machines...


Our Advantages:

Customized service available ,welcome with your sample or drawing

High speed low noise.

Rich experience Bearing manufacturer.

Delivery in time.

Free sample for test before order.

We have rich produce special bearing experience ,below here are some pictures for you.

Sstainless Steel U Bearing
U Groove Track Roller Bearings
U Groove Ball Bearing
U Groove Pulley Bearing
