Stainless Steel Bearing
home

Ball Bearing

Stainless Steel Bearing

S6800 Stainless Steel Bearing

new products

S6800 Stainless Steel Bearing

 10*19*5mm S6800-2RS,S6800 2Z  Stainless Steel Sealed Bearing ,we have this bearings in stock now .

  • item no.:

    S6800
  • lead time:

    3 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI,Shanghai
  • MOQ:

    100
products details

S6800 Series Ball Bearing Specification:

Dimensions

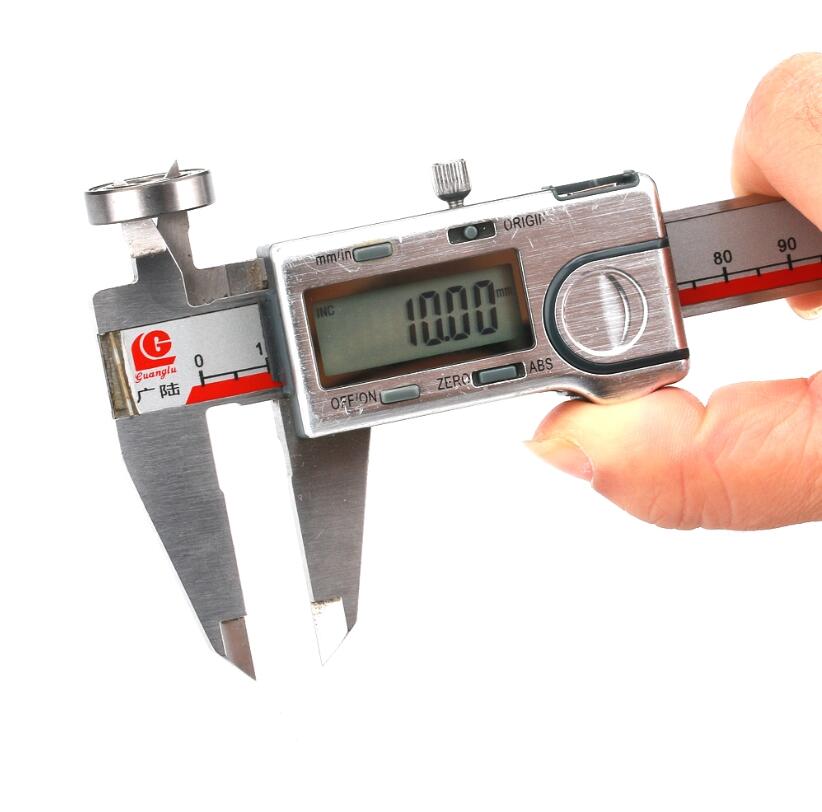

Inner Bore: 10mm

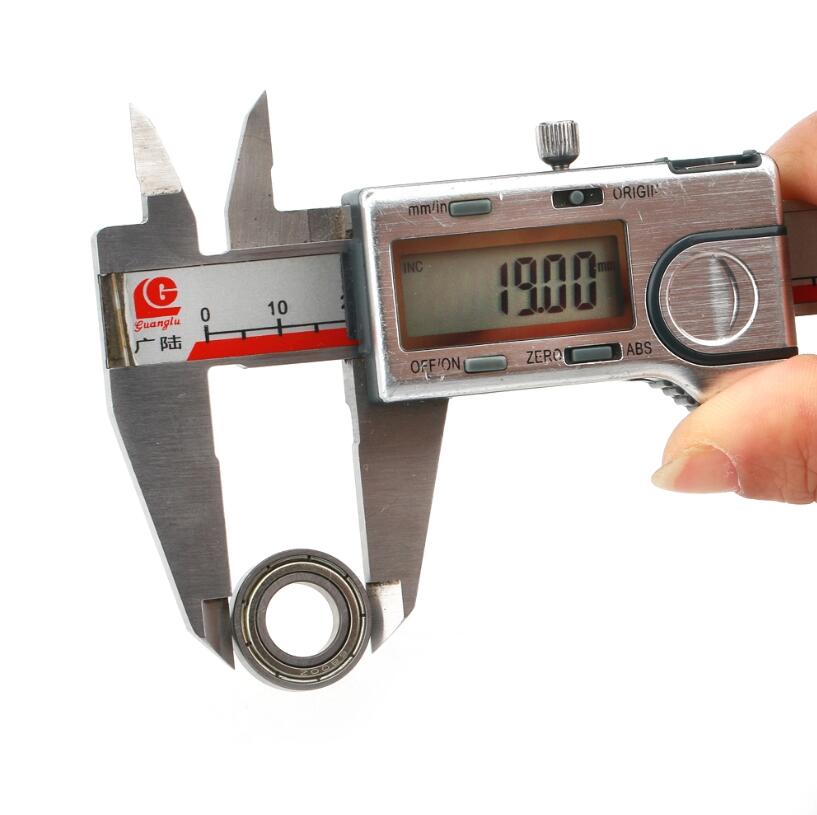

Outer Diameter OD: 19mm

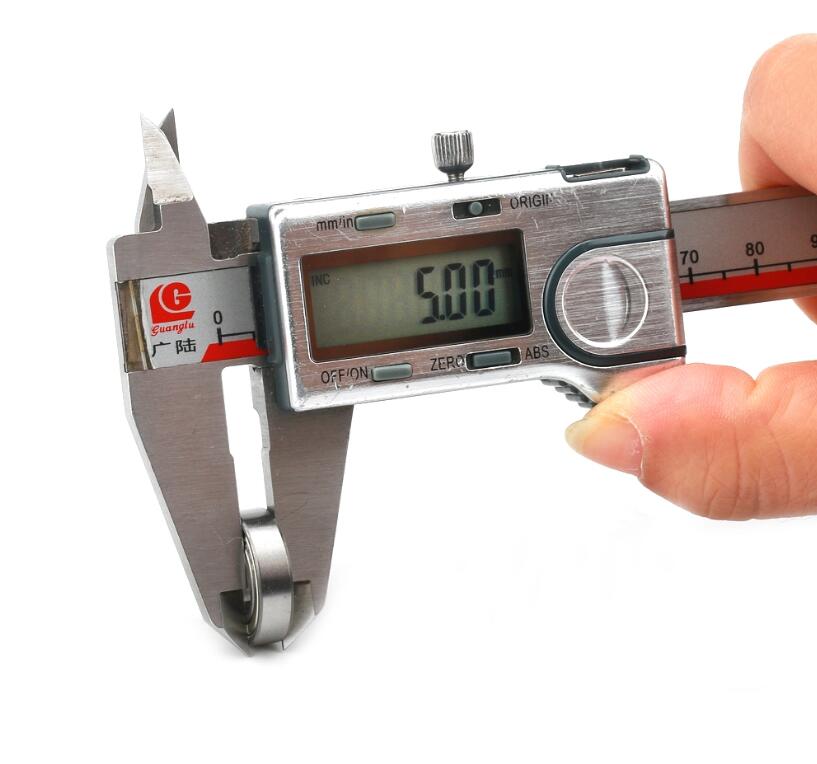

Width: 5mm
Weight: 10g
Seals or Shields:  Rubber Seals,(2RS),Metal shields (ZZ)or open

Clearance:  Standard C0

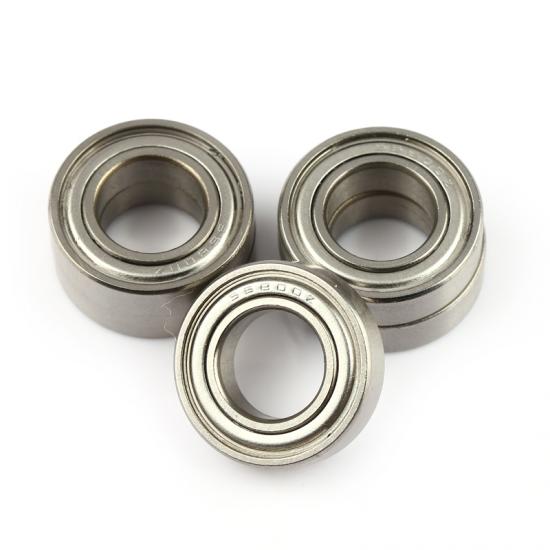

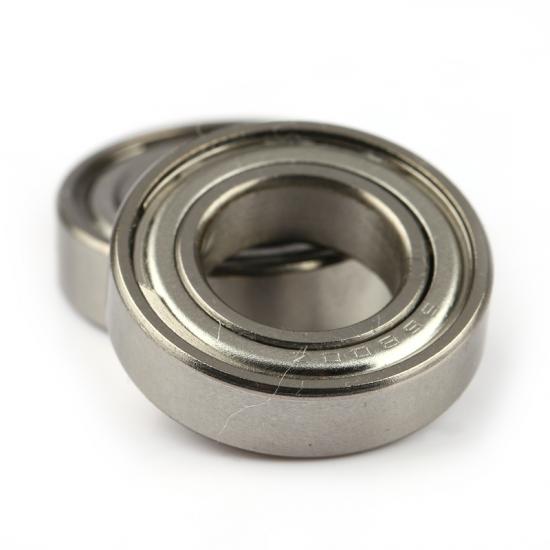

S6800-2RS Stainless Steel Bearing
S6800-2RS Bearing
S61800-2RS Bearing

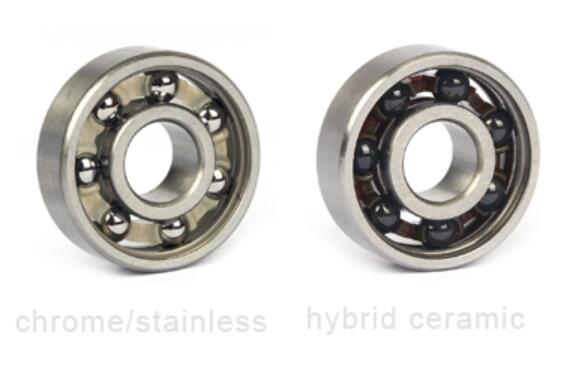

We also can produce 6800 Ceramic Hybrid Ball Bearing (with stainless steel rings and ceramic balls )


White Ceramic Balls ZR02  (Zirconium Oxide)

Or Can Be With Black Ceramic Balls Si3N4

Stainless Steel Inner & Outer Races (S440C)

Rubber Seal on both Side

hybrid ceramic bearing


 Features :

1.With stainless steel material are with rust-proof and corrosion capability.
2.With high quality material can withstand moisture and corrosion caused by a number of other media.
3.Our 6800 stainless steel bearings can pass 96 hours Salt Spray test. Our Advantages: < 1. Bearing with high reliability and smooth running
2. We are factory directly ,we can provide with competitive price and fast delivery
3. Free samples is available for test first

4. Custom service prodive ,we can produce with size ,material ,packing as your requirements.


Application :

S6800 thin section ball bearing can used for bicycle bottom bracket,mountain bike, electric motor, food machine.


S6800 Series Ball Bearing Number:

Item No. Dimension (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
d D B r (min) Dynamic Static Grease Oil
685 5 11 3 0.15 775 317 41000 49000 0.0011
686 6 13 3.5 0.15 1080 438 37000 44000 0.0019
687 7 14 3.5 0.15 1170 511 35000 42000 0.0021
688 8 16 4 0.2 1600 714 33000 39000 0.0031
689 9 17 4 0.2 1600 734 31000 37000 0.0032
6800 10 19 5 0.3 1590 760 30000 36000 0.005
6801 12 21 5 0.3 1900 1000 25000 30000 0.006
6802 15 24 5 0.3 1960 1260 24000 29000 0.007
6803 17 26 5 0.3 2130 1360 22000 26000 0.008
6804 20 32 7 0.3 3470 2240 19000 23000 0.019
6805 25 37 7 0.3 3660 2640 16000 19000 0.022
6806 30 42 7 0.3 4020 3120 13000 16000 0.026
6807 35 47 7 0.3 4310 3610 11000 14000 0.029
6808 40 52 7 0.3 4420 3890 10000 12000 0.033
6809 45 58 7 0.3 4590 4320 9000 10000 0.04
6810 50 65 7 0.3 6600 6080 7600 9000 0.052
6811 55 72 9 0.3 8800 8500 8500 10000 0.081
6812 60 78 10 0.3 11500 10900 8000 9500 0.103
