S6307 Stainless Ball Bearing

new products

S6307 Stainless Ball Bearing

35*80*21 mm S6307ZZ Bearing,we have bearing in stock now .

  • item no.:

    S6307
  • lead time:

    3 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI,Shanghai
  • MOQ:

    100
products details

S6307ZZ Bearing Speification :


Item: S6307ZZ

Structure: Deep Groove Ball Bearing

Material: 420  Stainless Steel

Dimension :

Bore Dia (d): 35 mm

Outer Dia (D): 80 mm

Width (B): 21 mm

Closures: Metal Shielded(ZZ) ,Rubber seal (2RS)

Lubrication: Grease

Hardness: 58HRC

Corrosion Resistance: General

Clearance: C0

Grades: ABEC Grades 1

Dynamic Load Rating (Cr) (Newtons): 33400

Static Load Rating (Cor) (Newtons): 19300

Ball Dia (Dw): 13.494 mm

Weight: 457 g



We Can Produce Bearing With Different Seal Type :


2RS Double Seal - Suitable for Harsh External Environment and Moderate Temperature Applications (-20 ~ 100 Degrees Celsius).

ZZ Dust Cover -Applicable to the External Environment is Good and Short-Term High Temperature Occasions (-20 ~ 110 Degrees Celsius).

Open - Normally Used Inside the Machine and With Enough Lubricating Oil, (Use 2RS Bearings to Clean the Internal Grease, The Equivalent of Open Bearings)

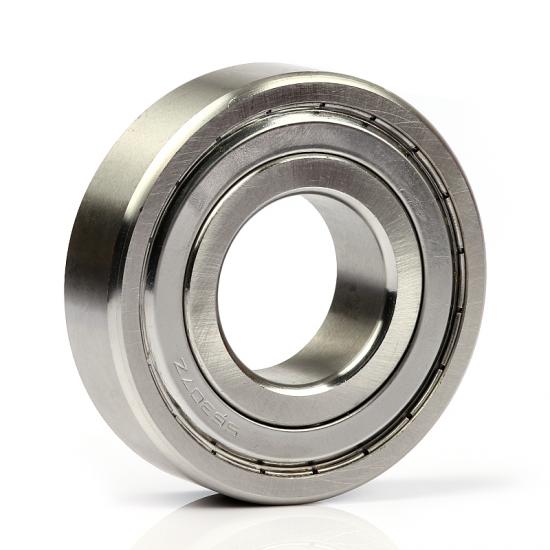

S6307ZZ Bearing
Stainless Steel S6307Z Ball Bearings



Features:

We can produce with material 440 ,420 ,304 bearing

2.Water -resistant

3.Temperature resistant

4.Anti-Corrosion Waterproof


We Can Produce Other Stainless Bearing:


Bearing No. d D B
mm mm mm
S6200 2RSR 10 30 9
S6201 2RSR 12 32 10
S6202 2RSR 15 35 11
S6203 2RSR 17 40 12
S6204 2RSR 20 47 14
S6205 2RSR 25 52 15
S6206 2RSR 30 62 16
S6207 2RSR 35 72 17
S6208 2RSR 40 80 18
S6209 2RSR 45 85 19
S6210 2RSR 50 90 20
S6300 2RSR 10 35 11
S6301 2RSR 12 37 12
S6302 2RSR 15 42 13
S6303 2RSR 17 47 14
S6304 2RSR 20 52 15
S6305 2RSR 25 62 17
S6306 2RSR 30 72 19
