Round Bore Disc Harrow Unit ST491A

new products

Round Bore Disc Harrow Unit ST491A

Round Bore Disc Harrow Unit ST491A With Material Chrome steel Gcr15 can use with 1-3/4" round bore.

  • item no.:

    ST491A
  • lead time:

    7 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

 Disc Harrow Unit ST491A Introduction :

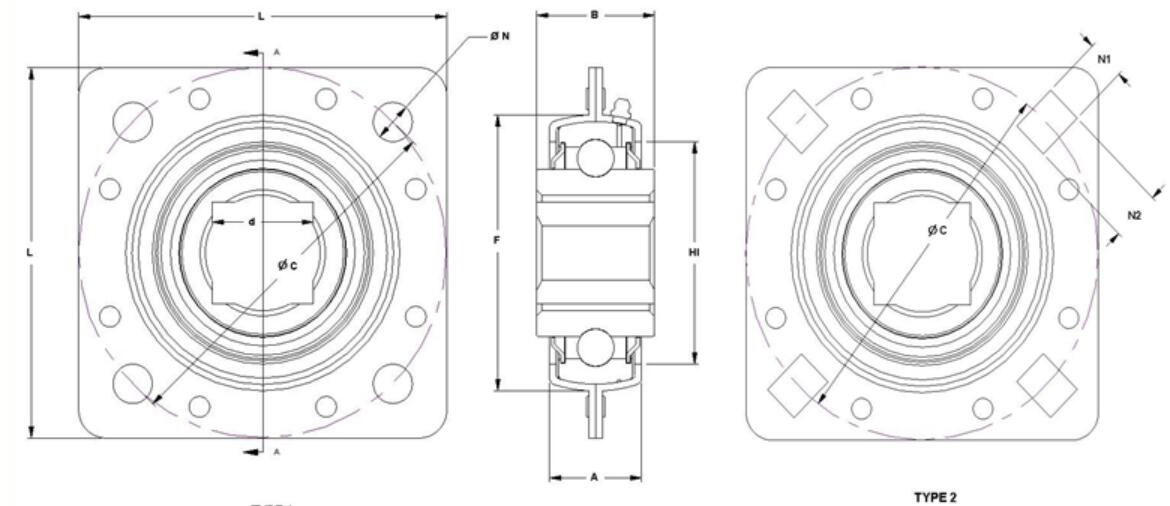

DIMENSIONS:

BORE: 1-3/4" ROUND

BOLT TO BOLT: 5" (BOTTOM LEFT TO TOP RIGHT)

Material :Chrome steel Gcr15

Seal type :Tri-Ply Seals

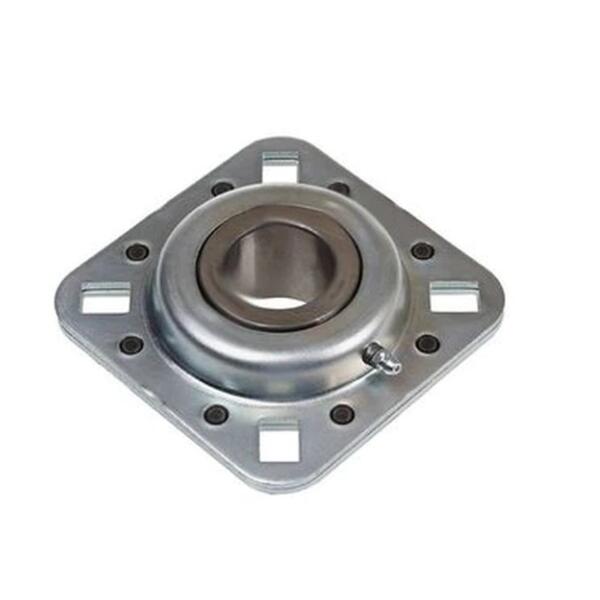

ST491A Bearing Picture :

ST491A Bearing


THIS BEARING UNIT IS ALSO KNOW AS:

BCA/FEDERAL MOGUL: FD209RA or FD209RJA

FAFNIR/TORRINGTON: DHU1-3/4R-209 or DHU491A

IH: ST427, ST490, ST627, 737321R93 Sunflower: SN3215 Remlinger: RB-0007




We Also Can Produce other high quality Disc Harrow Bearing:



ST211-1 3/4 1–2 1.78 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.531
45.21 139.7 55.6 46.4 9 72.5 113 139.7 13.5
ST211-2 3/16 1–2 2.188 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.531
55.58 139.7 55.6 46.4 9 72.5 113 139.7 13.5
ST211-1 15/16 1–2 1.939 5.5 2.752 1.827 0.354 2.854 4.449 5.5 0.531
49.24 139.7 69.9 46.4 9 72.5 113 139.7 13.5
ST740 1 2.188 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.516
55.58 139.7 55.6 46.4 9 72.5 113 139.7 13.1
ST208-1R5BC 2 1.043 5 1.654 1.378 0.276 2.165 3.622 5
26.5 127 42 35 7 55 92 127
ST209-1 1/8 1–2 1.18 5 1.673 1.685 0.276 2.343 3.839 5 0.531
29.97 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-30S 1–2 1.234 5 1.673 1.685 0.276 2.343 3.839 5 0.531
31.35 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-1 1/4 1–2 1.299 5 1.673 1.685 0.276 2.343 3.839 5 0.531
33 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-40R 1–2 1.609 5 1.673 1.685 0.276 2.343 3.839 5 0.531
40.88 127 42.5 42.8 7 59.5 97.5 127 13.5
FD-211-RM 1–2 1.531 5.5 2 1.827 0.354 2.874 4.469 5.5 0.531
38.89 139.7 50.8 46.4 9 73 113.5 139.7 13.5
ST211-40S 2 1.609 5.5 2 1.827 0.354 2.874 4.469 5.5 0.531
40.88 139.7 50.8 46.4 9 73 113.5 139.7 13.5
DHU 40S-211 2 1.609 5.5 2 1.827 0.354 2.874 4.469 5.5
40.88 139.7 50.8 46.4 9 73 113.5 139.7
ST208-1N 2 1.024 4.764 1.503 1.378 0.276 2.165 3.622 4.686
26 121 38.18 35 7 55 92 119.02
ST208-1 1/8 2 1.18 4.764 1.503 1.378 0.276 2.165 3.622 4.686
29.97 121 38.18 35 7 55 92 119.02
ST208-1 1/8G 2 1.18 4.764 1.503 1.378 0.276 2.165 3.622 4.686
29.97 121 38.18 35 7 55 92 119.02
ST208-1 42LTB 2 1.024 4.764 1.654 1.378 0.276 2.165 3.622 4.686



  ST491A Disk Harrow Bearing Application :


Fits: Case-IH Discs 37, 46, 48, 60, 61, 120, 122, 130, 132, 150, 330, 340, 345, 350, 470, 475, 480, 485, 490, 496, 610, 760, 3800, 3850, 3900, 3950, RMX340. Conser-Till 60, 6000, 6500. Combo mulch finishers 4200, 4400, 4450

Tigermate: Early 200 field cultivator, True-Tandem 330 Turbo, 870 ripper rolling baskets with round bore bearing

New Holland: ST440 disc

Remlinger: Rolling baskets

Sunflower: Field cultivator rolling baskets 5033, 5034, 5035, 5054, 5055, 5056, 5135, 5232, 5332. Land Finisher 6211, 6212, 6220, 6221, 6331, 6332, 6333, 6430, 6432, 6433. Soil Conditioner 7210, 7230, 7250
