Radial Insert Ball Bearings GRAE25-NPP-B

Radial insert ball bearing GRAE25-NPP-B can use  for harvest combines Claas (models: Lexion, Medion, Mega, Tucano, Dominator), John Deere (series: 900, 1000, 2000, 2200, 9400, 9500), New Holland (series: CS, CX. CSX) and forage combine Claas Jaguar.

  • item no.:

    GRAE25-NPP-B
  • lead time:

    7 days
  • brand:

    INA
  • shipping port:

    Guangzhou,Shanghai,Ningbo
  • MOQ:

    1
products details

Bearing GRAE25-NPP-B Specification:

Parameters
Weight , W kg 0.18
Inner diameter , d mm 25
Outer diameter , D mm 52
Total width , T mm 31
Cage width , C mm 15
Thread , M M6
Shield type Bilateral
Shield material Metal
Spherical outer ring Yes
Shaft mounting type Cylindrical
Bearing mounting method Eccentric locking collar
Inner cage width in mm , B mm 21.4

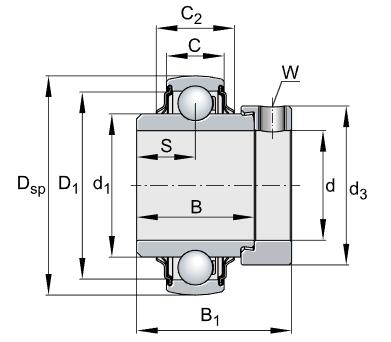

Bearing Dimension:


INA BEARING DRAW

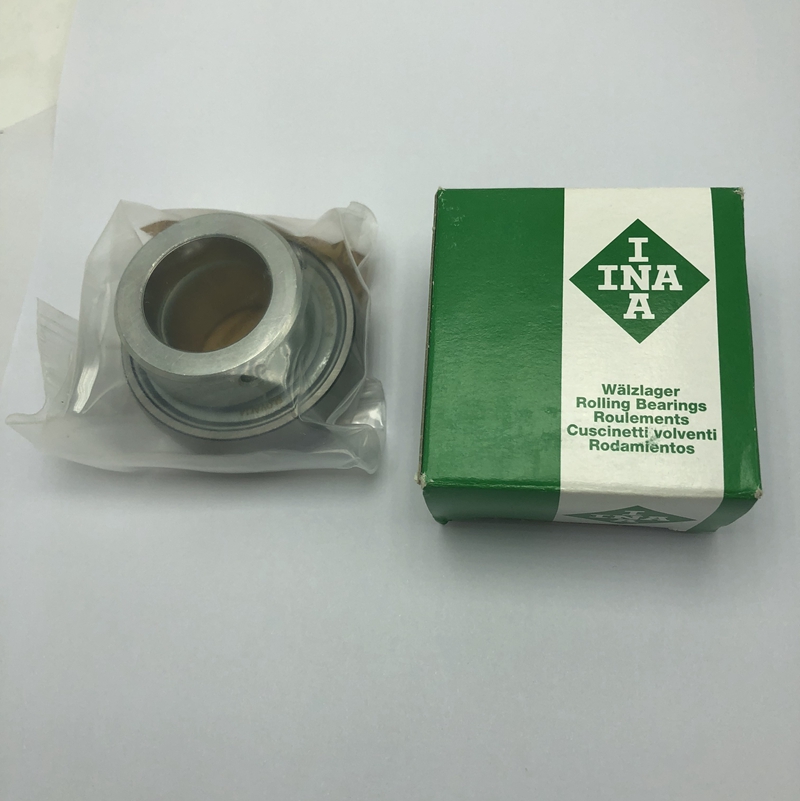

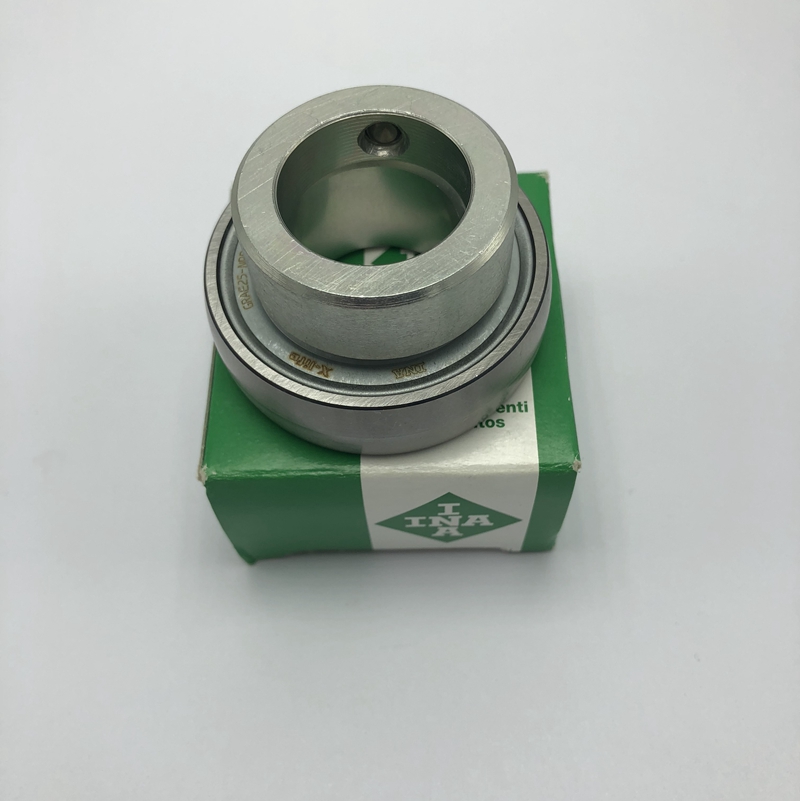

Bearings GRAE25-NPP-B Picture :


Bearing GRAE25-NPP-B
 INA 25mm Bearings

Design:

GRAE25-NPP-B ball bearing consists of two cages (internal and external) and rolling elements (balls), connected with a separator.


Application:

INA GRAE25-NPP-B bearing can be used for passing a radial load (along the radius) in harvester combines rotating shafts.


INA Bearing Features:

Spherical outer ring;

Two seals on both sides;

The eccentric locking collar for mounting.



Other INA Bearings Number For Your Reference :

Bearing Series For shaft diameter in mm Features
GRAE..-NPP-B 12-60mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RAE..-NPP-B 12-50mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B 20-30mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RA..-NPP-B 5/8''-1 1/2'' Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B 17-120 Spherical outer ring,location by eccentric locking collar ,R seals on both sides


INA Radial Insert Ball Bearings GRAE..-NPP-B Series:

spherical outer ring,location by eccentric locking collar,P seals on both sides

Bearings No. d(mm) DSP(mm) B1(mm)
GRAE-12-NPPB 12 40 28.6
GRAE-15-NPPB 15 40 28.6
GRAE-17-NPPB 17 40 28.6
GRAE-20-NPPB 20 47 31
GRAE-25-NPPB 25 52 31
GRAE-30-NPPB 30 62 35.8
GRAE-35-NPPB 35 72 39
GRAE-40-NPPB 40 80 43.8
GRAE-45-NPPB 45 85 43.8
GRAE-50-NPPB 50 90 43.8
GRAE-55-NPPB 55 100 48.4
GRAE-60-NPPB 60 110 53.1


RAE..-NPP-B Bearing Series:

Bearings No. d(mm) DSP(mm) B1(mm)
RAE12-NPP-B 12 40 28.6
RAE15-NPP-B 15 40 28.6
RAE17-NPP-B 17 40 28.8
RAE20-NPP-B 20 47 31
RAE25-NPP-B 25 52 31
RAE30-NPP-B 30 62 35.8
RAE35-NPP-B 35 72 39
RAE40-NPP-B 40 80 43.8
RAE50-NPP-B 50 90 43.8

RALE..-NPP-B Bearing :


Bearings No. d(mm) DSP(mm) B1(mm)
RALE20-NPP-B 20 42 24.5
RALE25-NPP-B 25 47 25.5
RALE30-NPP-B 30 55 26.5

RA..-NPP-B Series Bearing :


Bearings No. d(mm) DSP(mm) B1(mm)
RA100-NPP-B 25.4 52 31
RA104--206-NPP-B 31.75 62    35.8
RA104-NPP-B 31.75 72    39
RA108-NPP-B 38.1 80    43.8

Radial insert ball bearings GE..-KRR-B

spherical outer ring,location by eccentric locking collar,R seals on both sides

Bearings No. d(mm) DSP(mm) B1(mm)
GE17-KRR-B 17 40 37.4
GE20-KRR-B 20 47 43.7
GE25-KRR-B 25 52 44.5
GE30-KRR-B 30 62 48.5
GE35-KRR-B 35 72 51.3
GE40-KRR-B 40 80 56.5
GE45-KRR-B 45 85 56.5
GE50-KRR-B 50 90 62.8
GE55-KRR-B 55 100 71.4
GE60-KRR-B 60 110 77.9
GE65-214-KRR-B 65 125 66
GE70-KRR-B 70 125 66
GE75-KRR-B 75 130 67
GE80-KRR-B 80 140 70.7
GE90-KRR-B 90 160 69.5
GE100-KRR-B 100 180 75
GE120-KRR-B 120 215 81

For more bearing numer ,please contact with us directly at info@bearings-factory.com


related products

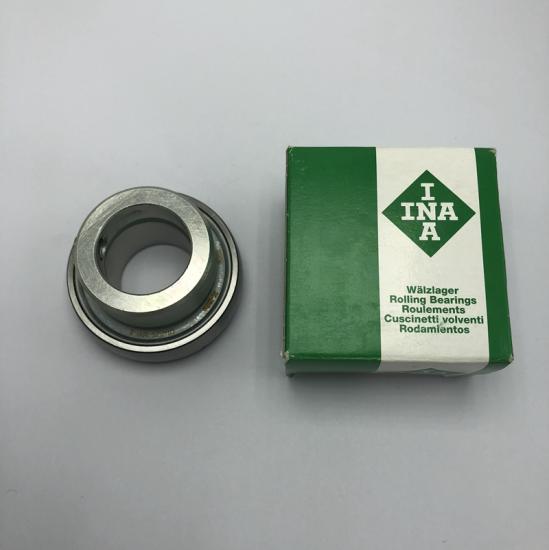

INA Bearing
INA Radial Insert Ball Bearings GNE50-KRR-B

INA Brand Radial Insert Bearing GNE50-KRR-B  with size 50*110*66.75mm are popular size which can used  in the agricultural machinery .

INA Insert Bearings
INA Agricultural Machinery Bearings GE45-XL-KRR-B

Bearing GE45-XL-KRR-B with size 45*155*56.5 mm are produce with Chorme steel GCR15 ,this bearing often matched with a bearing housing ,the new bearing unit is Pillow Block RME45-XL .

Insert Ball Bearing GRAE40-NPP-B
INA Agricultural Machinery Radial Insert Ball Bearing GRAE40-NPP-B

GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm

ina 45 bearing
INA BEARING GRAE45-NPP-B ina 45

1.We can provide best quality of INA insert ball bearing 2. we can supply different bearing number 3. Free sample available for you 4.Fast delivery time 5. Best service

INA Bearing GRAE25-XL-NPP-B
Schaeffler INA Insert Bearing GRAE25-XL-NPP-B

GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm

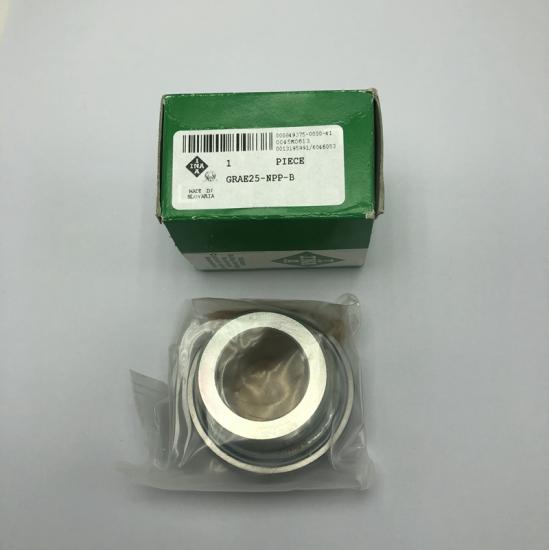

Chrome Steel Bearing GRAE25-NPP-B
