608 Skate Bearing
home

608 Skate Bearing

NTN Ball Bearing 608zz 608llu 8*22*7mm

new products

NTN Ball Bearing 608zz 608llu 8*22*7mm

We provide high quality NTN 608 bearing,with size 8*22*7mm and Chrome steel material , 608 bearing usually used on skateboard wheels,longboard wheels, roller skate shoes.

  • item no.:

    608
  • brand:

    NTN
  • shipping port:

    Guangzhou
  • MOQ:

    1
products details



NTN 608 Bearing Specification:


608 Ball Bearing

Bearing number:608ZZ  608LLU

Closures: double metal/rubber seal

Brand:NTN

Weight: : 0.012 KG

Dynamic load rating Cr: 3.35 KN

Static load rating Cor: 1.4KN

Quality: Electric Motor Quality

dimensions: 8*22*7mm

Inner Diameter: 8mm

Outer Diameter: 22mm

Width: 7mm




608 Bearing Applications:


With less coefficient of friction, high limiting speed,NTN 608 bearing are widely for skateboard.longboard ,instruments and meters, electric motor, internal combustion engines, transportation vehicles, agricultural machinery Auto, machine tool, electric machine, water pump, machinery etc.

ball bearing application


NTN Bearing Features :


1. High running speed
2.Original TNTbrand with long working life.
3. Bearing Factory with Large Stock with fast dispatch
5. OEM & ODM service available
6.Free sample for you all the time


Working with ZZ BEARINGs have below advantages:


1.Excellent quality and high quality control for you
2.With large stock ,we can provide prompt delivery
3.Provide small qualtiy with competitive price
4.Small order accepted for our trail order
5.OEM service provide ,you can send me drawing or your samples


We can provide different NTN bearings :

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1 16 10.3 10000 14000 0.115
6008 40 68 15 1 16.8 11.5 8000 11000 0.19

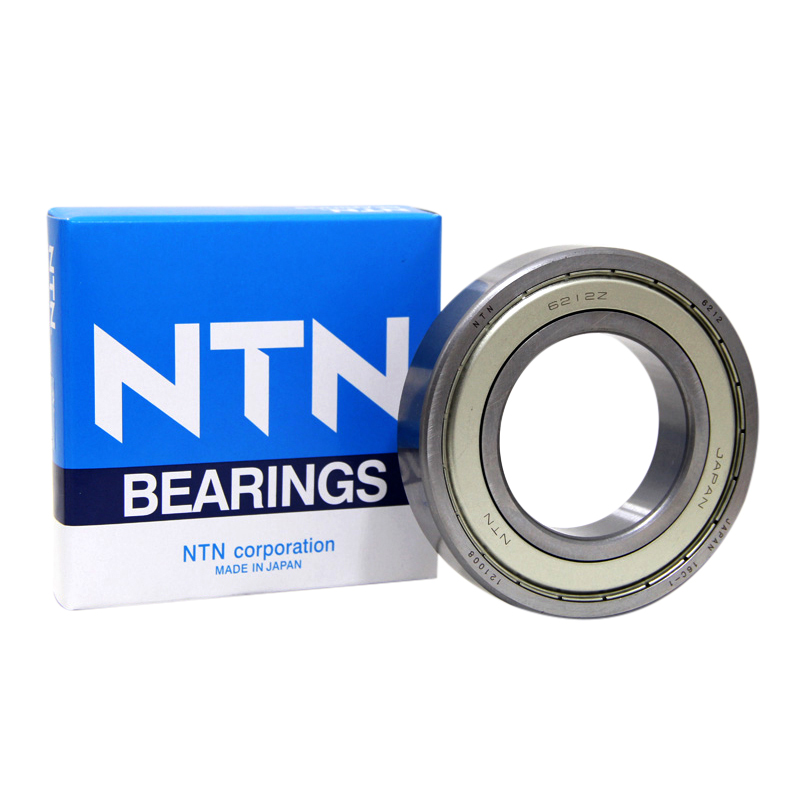

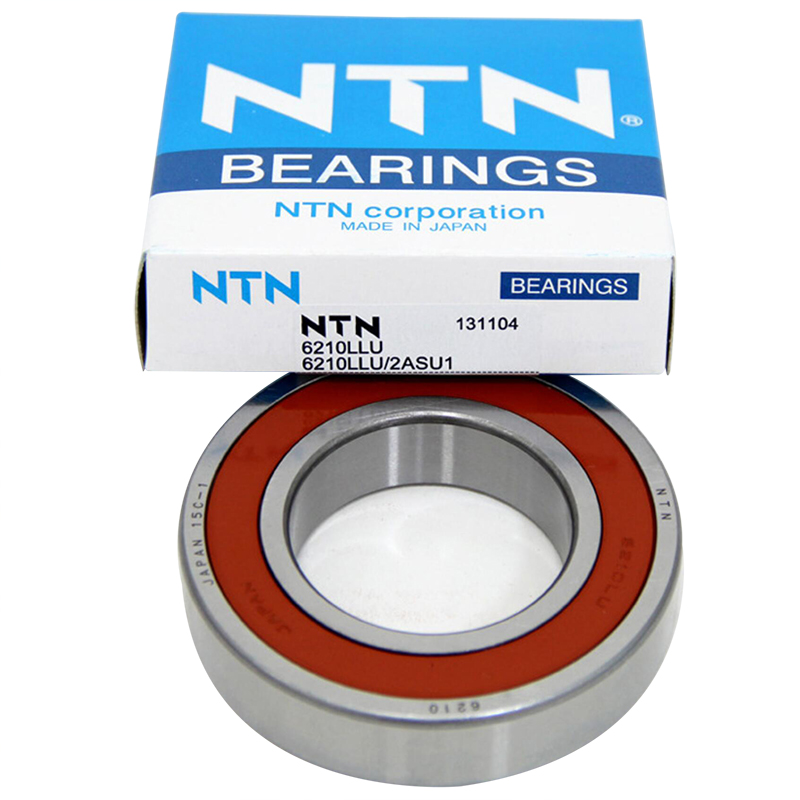

Some TNT bearing pictures for your reference :

6204 bearing

TNT bearing



related products
Skateboard Bearings
ABEC-7 Skateboard Bearings With Nylon Cage And Green Seals

608 Skateboard Bearings are widely used bearing with Chrome steel material and size 8*22*7mm. We can produce different precision such as ABEC-1,ABEC-3,ABEC-5,ABEC-7 ,ABEC-9 bearings. And the seals color also can be customized too .

Built-In Race Skateboard Bearings
Custom Blackening ABEC Built-In Race Skateboard Bearings With Ceramic Balls

Built-In Race Skateboard Bearings with bearing size 8*22*12.6mm ,the material is chrome steel +Si3N4ceramic balls with blackening surface treatment,we can provide with personalized service .

Bearing 608ZZ 608DDU
NSK Ball Bearing 608ZZ 608DDU ABEC-1

The 6 in the 608 bearing represents the 6 series deep groove ball bearing, 0 is the size series, and 8 is the inner diameter of 8 mm. Dimensions are 22mm outer diameter, 7mm height and 8mm inner diameter. There are 7 steel balls and the diameter of the steel ball is 3.969mm. The bearing is divided into 608 bearings with dust cover and sealing cover. The dust cover is indicated by the model suffix zz (608zz), and the rubber cover is indicated by the model suffix DDU (608DDU).

Longboard Bearings
Longboard Skateboard Bearing

Swiss quality ABEC-9 608ZZ bearings with material Chrome steel and  size 8*22*7mm ,we also can produce with customized service at your requirements .

skate bearings
Customized 608 Skate Bearings 8*22*7mm

608 bearing is type of deep groove ball bearing,  8 is the inner diameter of 8 mm. Dimensions are 22mm outer diameter, 7mm height.Normally there are 7 pcs steel balls and the diameter of the steel ball is 3.969mm. There are many type of 608 closure type such as 608 open ,608 Z,608ZZ ,608RS,6082RS bearing;For materials ,there are carbon steel, Chrome steel(GCr15), stainless steel, plastic, ceramics, etc. The cages are: nylon cages, steel cages, ceramic cages, . 608 bearings have a wide range of applications, such as in motors, sport machine, trolleys, skates, and more.

Ceramic Skateboard Bearings
Hybrid Ceramic Skateboard Bearings With 6 Balls Nylon Cage

Hybrid Ceramic Skateboard Bearings with size 8*22*7mm ,the inner ring and outer rings are with material Chrome steel and the balls are made of ceramic ZrO2 or Si3N4 , we are produce bearing with 6 balls ,it is more stroner then 7 balls .
