6000 Series Ball Bearing
home

Ball Bearing

Deep Groove Ball Bearing

6000 Series Ball Bearing

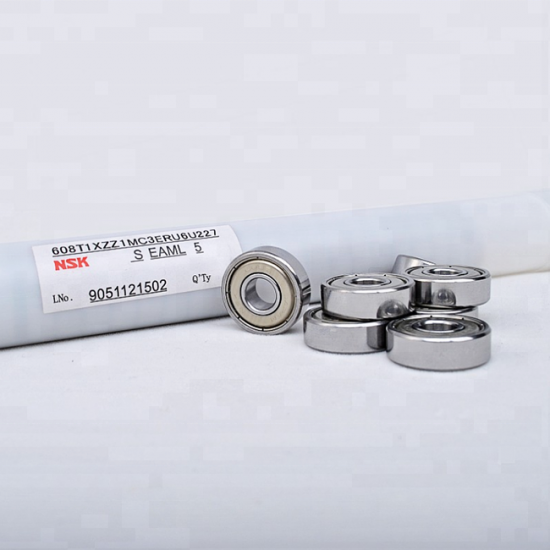

NSK Deep Groove Ball Bearing z809 ABEC-7

new products

NSK Deep Groove Ball Bearing z809 ABEC-7

608 bearing ,the number 6 is represents the 6 series deep groove ball bearing, 0 is the size series, and 8 is the inner diameter of 8 mm,outer diameter is 22, 7mm is height and 8mm inner diameter. There are 7 steel balls and the diameter of the steel ball is 3.969mm. The bearing is divided into 608 bearings with metal shield cover and rubber seals cover. The metal shield cover is indicated by the model suffix zz (608zz), and the rubber cover is indicated by the model suffix DDU (608DDU). Materials can be with carbon steel, bearing steel (GCr15), stainless steel, plastic, ceramics, etc. The cages are: nylon cages, iron cages, copper cages etc. 608 bearings are widely used in motors, motors, electronic accessories, trolleys, skates and other related fields.

  • item no.:

    608
  • brand:

    NSK
  • shipping port:

    Guangzhou
  • MOQ:

    1
products details

NSK 608 Bearing Specification:


608 Ball Bearing

Brand NSK
Bearing No.: 608
Inside Diameter 8mm
Outside Diameter 22mm
Width 7mm
Material : Chrome steel
Closure Type Open ,DDU,ZZ
Speed 34000rpm
Static Load Rating 1.37kN
Dynamic Load Rating 3.3kN


608 Bearing Applications:

With less coefficient of friction, high limiting speed,NSK 608 bearing are widely for skateboard.longboard ,instruments and meters, electric motor, internal combustion engines, transportation vehicles, agricultural machinery Auto, machine tool, electric machine, water pump, machinery etc.

ball bearing application


NSK Ball Bearing Features :


1. High running speed
2.Original NSK brand with long working life.
3. Bearing Factory with Large Stock with fast dispatch
5. OEM & ODM service available
6.Free sample for you all the time


We Can Provide Different NSK Bearings

Below here are some bearing number for your reference :

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1 16 10.3 10000 14000 0.115
6008 40 68 15 1 16.8 11.5 8000 11000 0.19


We can provide other brand bearings such as KOYO ,SKF,NTN,INA etc ,for more informations pls  contact with me free .

Bearing Brand


Working With ZZ BEARINGs Have Below Advantages:

1.Excellent quality and high quality control for you
2.With large stock ,we can provide prompt delivery
3.Provide small qualtiy with competitive price
4.Small order accepted for our trail order
5.OEM service provide ,you can send me drawing or your samples





related products
Deep Groove Ball Bearing
Chrome Steel 6000 Deep Groove Ball Bearing 10*26*8mm 60002RS 6000ZZ

ball bearing 6000 series are the most common bearing ,they can be used in gearboxes, instrumentation, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo, etc.

6001 Deep Groove Ball Bearing
6001 Deep Groove Ball Bearing 6001ZZ 60012RS For Ceiling Fan

ball bearing 6001 is bearing with 12X28X8mm,normally we produce with high quality Chrome steel Gcr15 ,if you need under water ,we can produce with stainless steel material .

bearing snap ring
6004 Ball Bearing With Snap Ring 6004NR 6004-2RSNR 6004ZZNR

60042RS NR ball bearing has rubber seals and a snap ring. It has a 20mm inside diameter, a 42mm outside diameter, and a 12mm depth.

Ball Bearing 6201
Ball Bearing For Motor 6201 6201ZZ 6201RS

6201 bearing with size 12*32*10mm,we can produce with material stainless steel ,Chrome steel ,carbon steel and there are 6201,6201Z,6201ZZ,6201-RS,6201-2RS。

6003 2rs bearing
Deep Groove Ball Bearing 6003

1. High quality and competive price 2. Free sample provide 3. Order now get 10% discount 4.OEM service available

6000 Bearings
6000-2RS C3 Ball Bearing

10*26*8mm 6000 2RS C3 Deep groove ball bearing are produced by Chrome steel Gcr15 Internal clearance - С3 with dimension ,this bearings are part of Combine harvester Claas and Tractor Claas.
