MH-P03 1-1/8" Headset Bearings

new products

MH-P03 1-1/8" Headset Bearings

30.15x41x6.5mm MH-P03 Bicycle Headset Bearing are produce with Chrome steel Gcr15 ,we can provide sample before order .

  • item no.:

    MH-P03
  • lead time:

    30 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    500
products details

MH-P03 Bicycle Headset Sealed Bearing Specification:

Inner x Outer x Depth (mm): 30.15x41x6.5

Angle / Chamfer (Deg): 45/45

Bearing ID: 30.15mm

Bearing OD: 41mm

Bearing Thickness: 6.5mm

Internal Angle: 45 Degrees

External Angle: 45 Degrees

Application:Headset

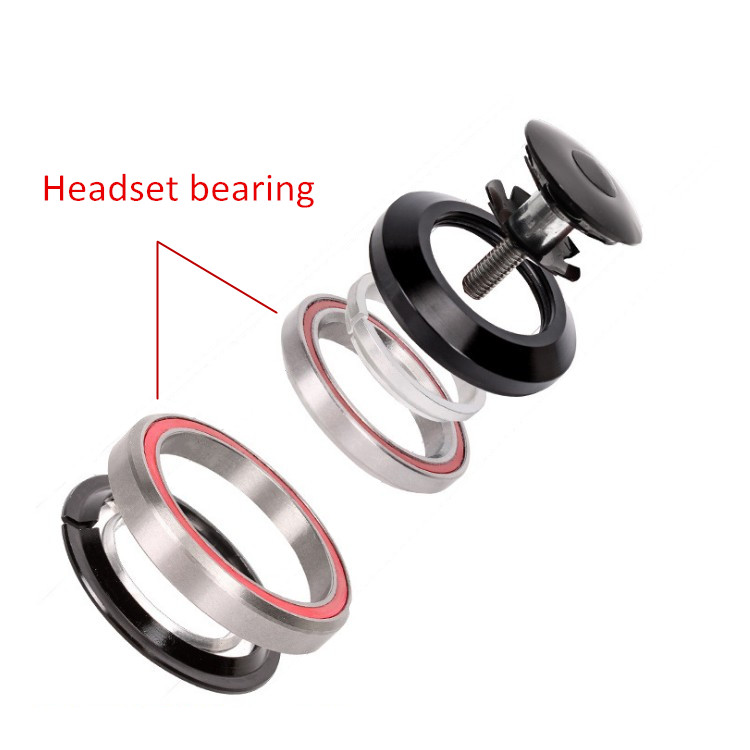

bike headset bearing

We can Produce other Bicycle Headset Bearing:

 Model number
           ID
          OD
     Thickness
Chamfer angle of inner ring
Chamfer of outer ring
       d (mm)
       D (mm)
       H (mm)
MH-P03
30.15
41
6.5
45°
45°
MH-P03K
30.15
41
6.5
36°
45°
MH-P03H7
30.15
41
7
45°
45°
MH-P08
30.15
41.8
6.5
45°
45°
MH-P08H7
30.15
41.8
7
45°
45°
MH-P08H8
30.5
41.8
8
45°
45°
MH-P16
40
52
7
45°
45°
MH-P16H8
40
52
8
45°
45°
ACB518H8
40
51.8
8
45°
45°
ACB518K
40
51.8
8
36°
45°

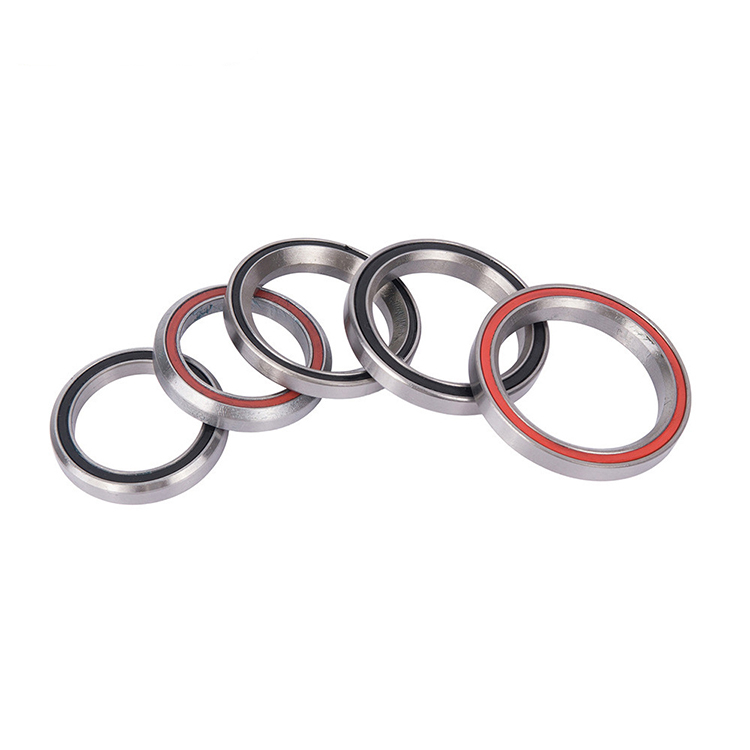

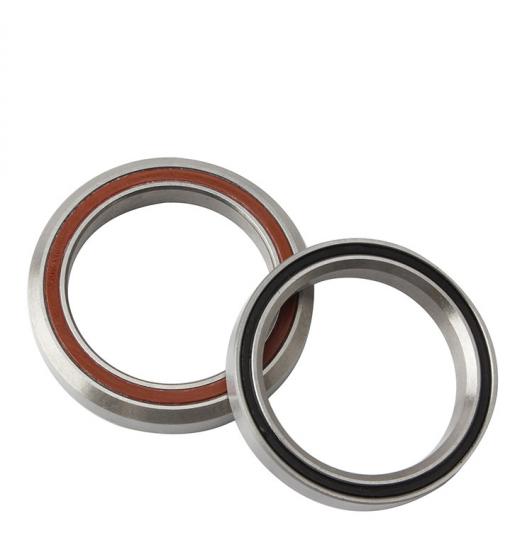

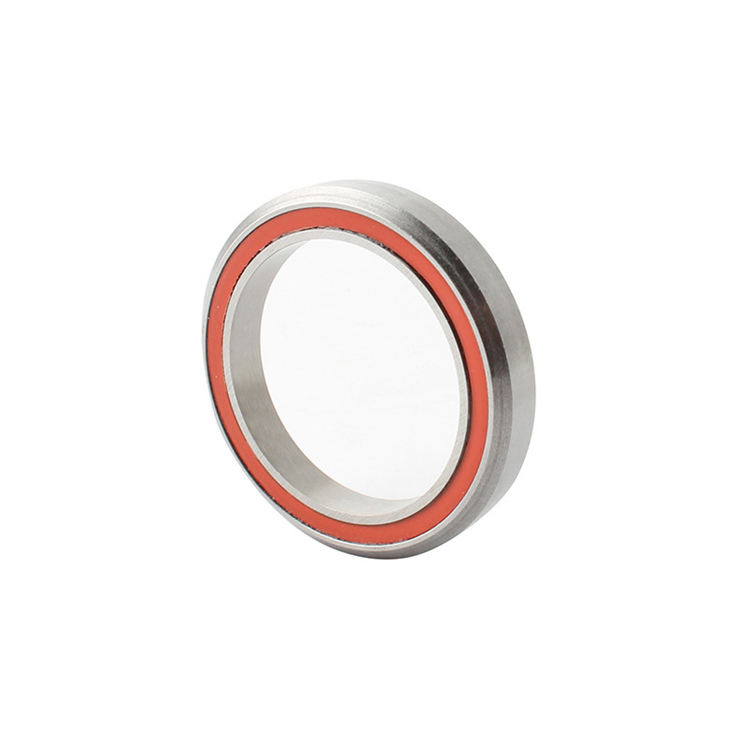

MH-P03 Bicycle Headset Bearing
Bicycle Headset Bearing
