LZ 3224 Bottom Roller Bearing

new products

LZ 3224 Bottom Roller Bearing

19x32x23mm LZ 3224 Bottom Roller Bearing, we have bearing in stock ,free sample can be provide before order .

  • item no.:

    LZ 3224
  • lead time:

    3-5 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    1000
products details

LZ 3224 Textile Machine Bottom Roller Bearing Specification :

Dimension :

Material :Chrome steel with nylon cage

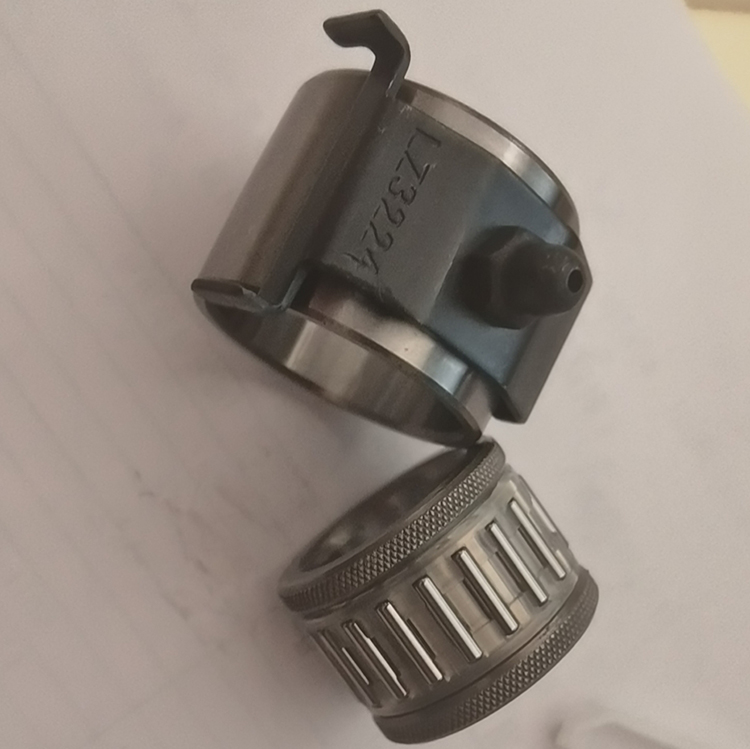

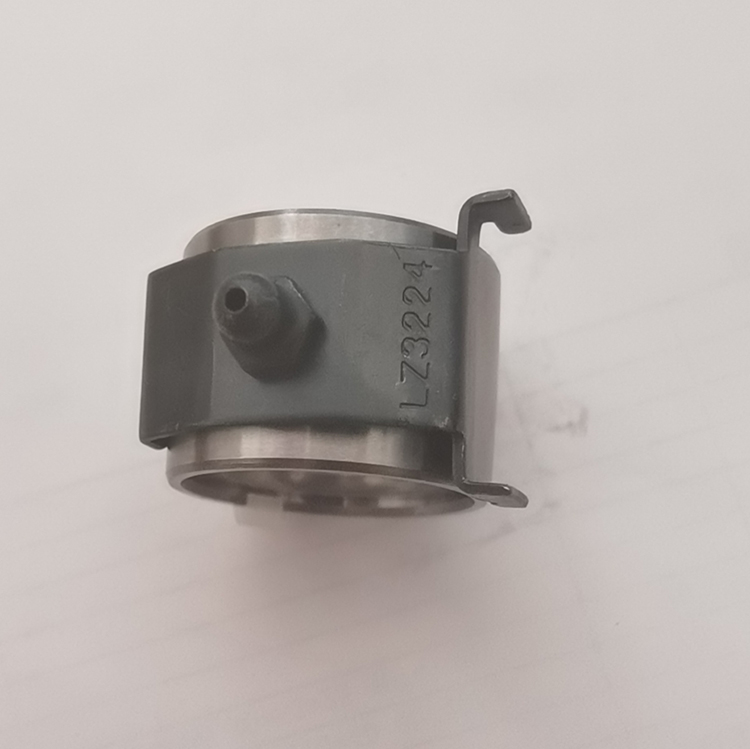

LZ3224 Bearing Pictures :


 LZ3224 bearing
 Textile Machine Bottom Roller Bearing

We can produce other bottom roller bearing :


Model No
D(mm)
d(mm)
B(mm)
C(mm)
Weight(KG)
LZ2800
28
16.5
19
22
0.06
LZ2822
28
16.5
19
22
0.06
LZ2822E
28
16.5
19
23
0.061
LZ3200
32
19
20
23
0.082
LZ3224
32
19
20
23
0.082
LZ3224E
32
19
20
24
0.082
LZ3226
32
19
20
23
0.082
LZ3600
36
21
22
25
0.119
LZ3624
36
21
22
25
0.119
LZ3626
36
21
22
25
0.119
LZ4000
40
23
23.5
27
0.16
LZ4024
40
23
23.5
27
0.16
LZ16.5
30
16.5
19
23
0.17
LZ19
36
19
22
26
0.116
LZ22
42
22
23
27
0.16
LZ25
47
25
25
29
0.218
