Hex Bore Agricultural Bearings

new products

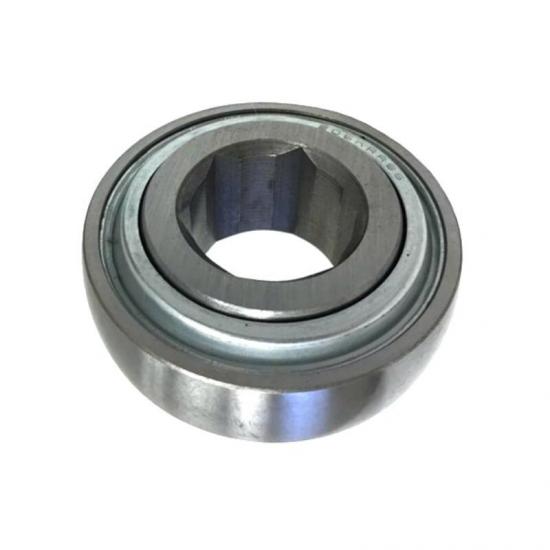

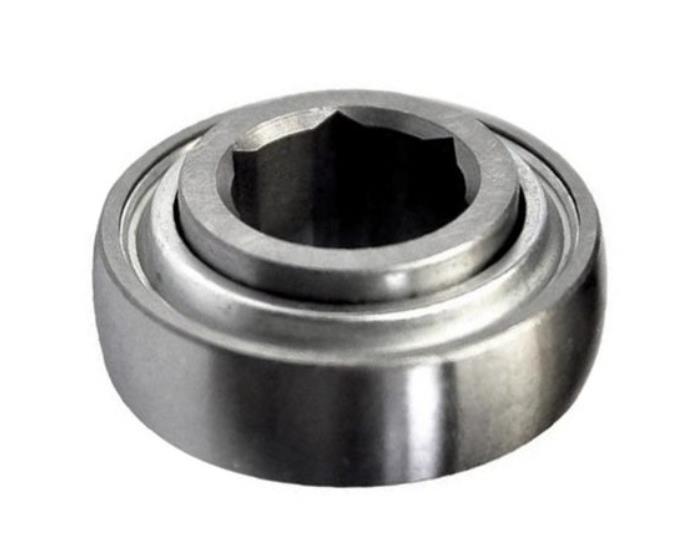

Hex Hole Agricultural Bearings 205KPPB2

Bearings 205KPPB2 with hex bore ,two triple lip seals and the size are 0.875"ID,2.0472" spherical OD,0.5910"inner ring width ,1"outer ring width.

  • item no.:

    205KPPB2
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

 Agricultural Bearings 205KPPB2 Introduction :

205KRRB2 size
205KRRB2 Hex Bore Agricultural Bearings


Bearing Number:205KPPB2

Size (mm): 22.25 x 52 x 25.4 / 15

Material: GCr15 Chrome steel

Precision: P0 P6 P5

Clearence: C0 C2 C3 C4 C5

Cage: Steel cage or polyamide cage

Weight (Kg): 0.213

Country of Origin: CHINA


205KPPB2 Special Agricultural Bearing Application :


Hex bore special ag bearing 205KPPB2 are widely used for John Deere 7000 - 7300 Planters.


 John Deere 7000 - 7300 Planters

ZZ BEARING is a agricultural machine factory,we can produce other farm bearings :


HEX BORE BEARING TYPE

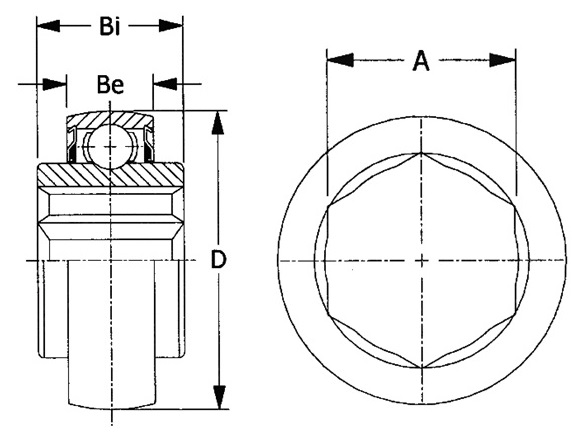

Bearing Number Type Hex Shaft Size A D Bi Be Load Ratings N Wt.
mm mm mm mm Dynamic Static kg
205KPP2 3 7/8" 22.25 52 25.4 15 3150 1610 0.213
205KRR2 1 7/8" 22.25 52 25.4 15 3150 1610 0.2
205KPPB2 4 7/8" 22.25 52 25.4 15 3150 1610 0.213
205KRRB2 2 7/8" 22.25 52 25.4 15 3150 1610 0.2
206KPP4 3 1" 25.425 62 26.924 16 4370 2320 0.213
G206KPPB4 4 1" 25.425 62 24 18 4370 2320 0.213
206KPPB5 4 1" 25.425 62 26.924 16 4370 2320 0.213
206KRR6 1 1" 25.425 62 24 16 4370 2320 0.34
206KRRB6 2 1" 25.425 62 24 16 4370 2320 0.34
G207KPPB2 4 1 1/8" 28.6 72 37.694 19 5770 3150 0.499
207KRRB9 2 1 1/8" 28.6 72 37.694 17 5770 3150 0.454
207KRRB12 2 1 1/8" 28.6 72 25 17 5770 3150 0.395
SL53-014-2T Special 7/8" 22.225 53.086 19.4 18.288 3150 1610 0.174
