GE70FW 2RS Spherical Plain Bearing

new products

GE70FW 2RS Spherical Plain Bearing

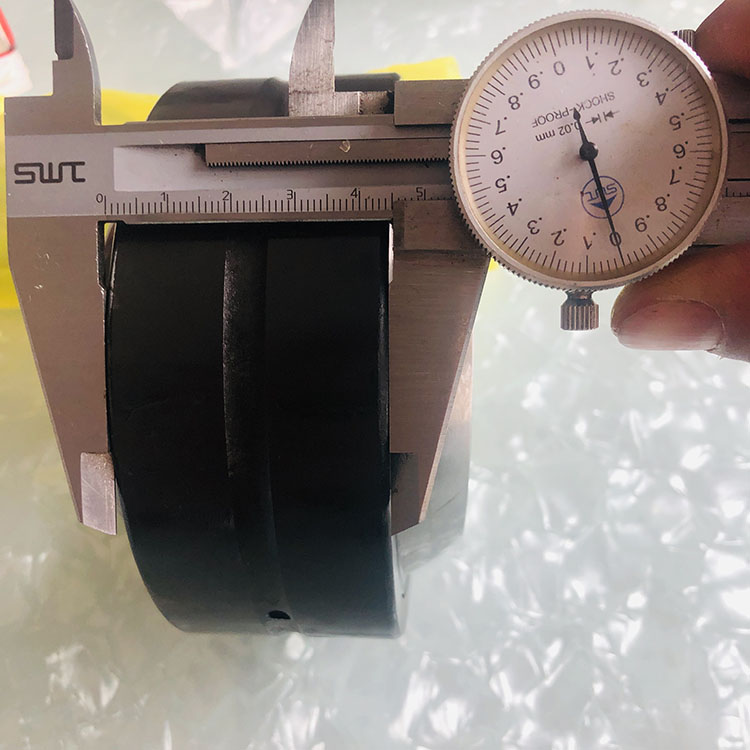

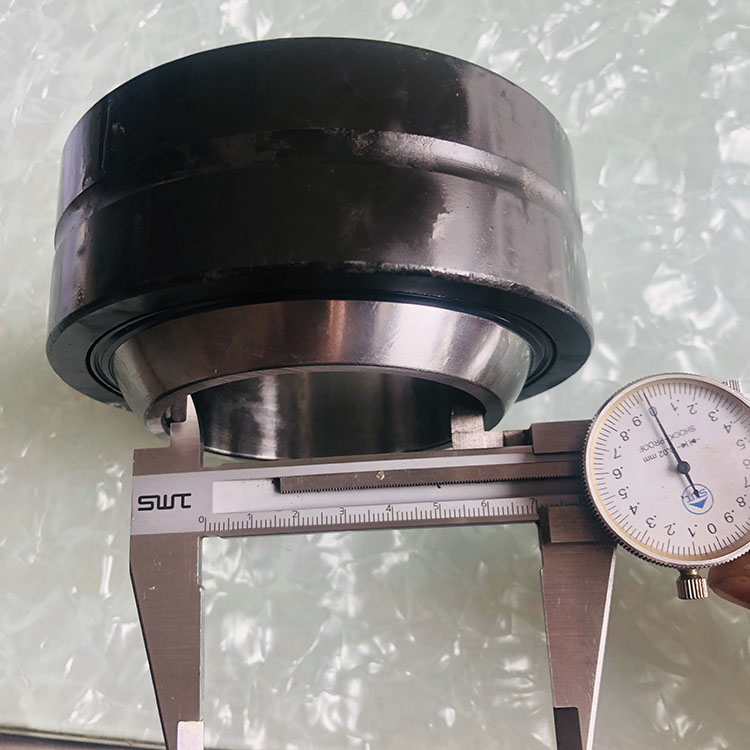

70x120x70mm GE70FW 2RS bearing ,we have bearing in stock now ,sample can be provide in advance .

  • item no.:

    GE70FW 2RS
  • lead time:

    3 DAYS
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

GE70FW 2RS Spherical Plain Bearing Specification :

Inner diameter : 70mm

Outer diameter : 120mm

Heright : 70mm

Material ; Chrome steel Gcr15

Application:suitbale for high shock loads and medium to heavy industrial/mechanical load appllications requiring low friction, they do not require maintenance.

GE70FW 2RS Spherical Plain Bearing
GE70FW 2RS Bearing
Spherical Plain Bearing

We also can Produce other  Spherical Plain Bearing for you :


Designation d D B C Dynamic Static Weight
load load (Kg)
(KN) (KN)
GE15FW 2RS 15 30 16 10 30 60 0.049
GE17FW 2RS 17 35 20 12 42 83 0.083
GE20FW 2RS 20 42 25 16 68 137 0.153
GE25FW 2RS 25 47 28 18 88 176 0.203
GE30FW 2RS 30 55 32 20 112 224 0.304
GE35FW 2RS 35 62 35 22 140 280 0.408
GE40FW 2RS 40 68 40 25 180 360 0.542
GE45FW 2RS 45 75 43 28 220 440 0.713
GE50FW 2RS 50 90 56 36 345 695 1.14
GE60FW 2RS 60 105 63 40 440 880 2.05
GE70FW 2RS 70 120 70 45 567 1140 3.01
GE80FW 2RS 80 130 75 50 690 1370 3.64
GE90FW 2RS 90 150 85 55 858 1730 5.22
GE100FW 2RS 100 160 85 55 924 1860 6.05
