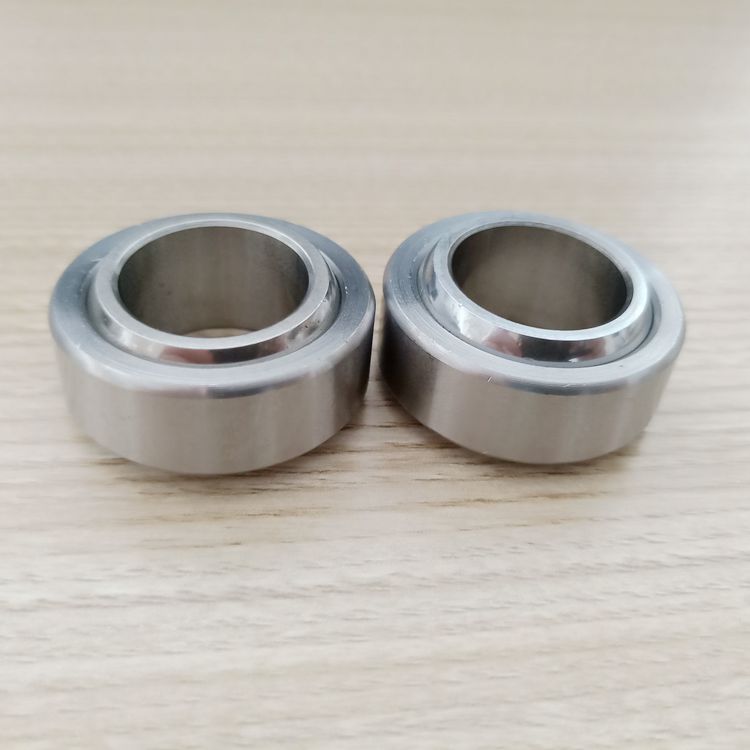

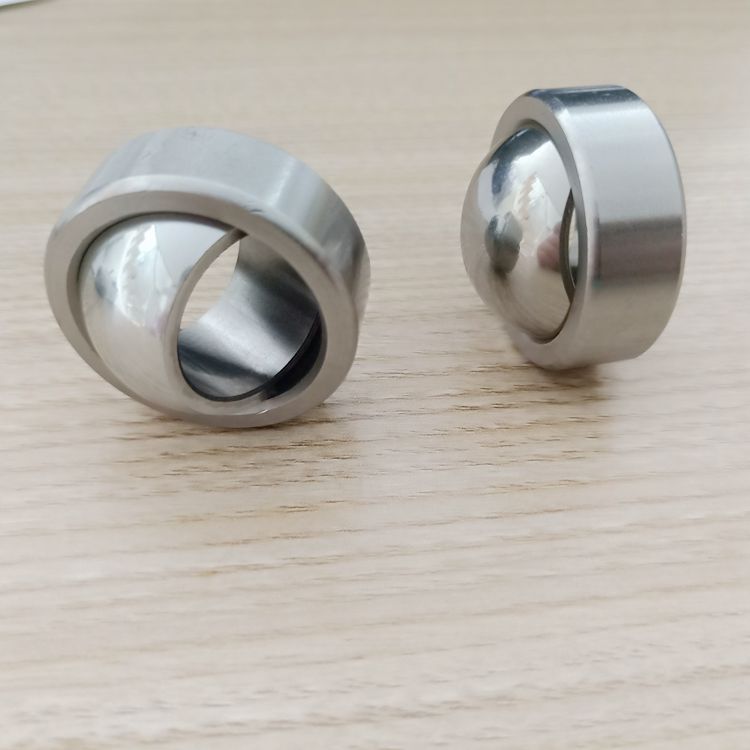

GE20C Radial Spherical Plain Bearings

220*35*16mm GE20C Spherical Plain Bearing Produce with Steel And PTFE composite,We can Produce Free Sample for You To Test .

item no.:
GE20C
lead time:
3-7 DAYS
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

GE20C Spherical Bearing Specification:

Inner diameter:20mm

Outer diameter:35mm

Width:16mm

Material :steel /PTFE composite

Basic dynamic load rating:31 kN

Basic static load rating:78 kN

Weight :0.066 kgs

GE20C Spherical Bearing outer ring are made of carbon steel and formed by extrusion with sliding surface of PTFE composite material. Inner ring of chrome steel, hardened, sliding surface treated with chromium plating.

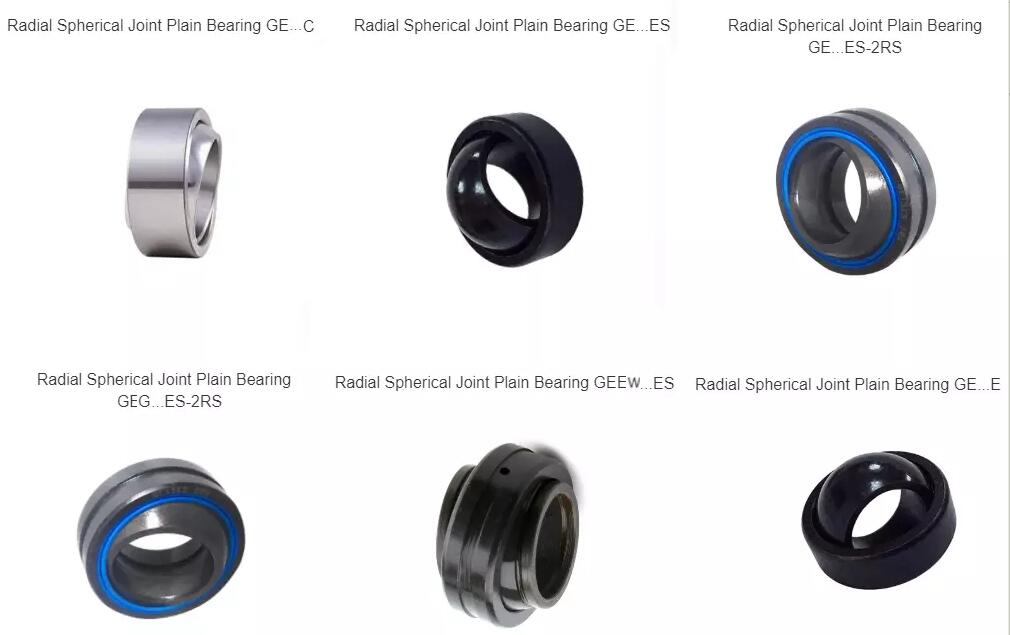

We can produce different series Radial Spherical Plain Bearings:

Dimensions				Angle	Dynamic	Static	Mass(kg)	Designations
d(mm)	D(mm)	B(mm)	C(mm)	a	C(kn)	C0(kn)	Mass(kg)	Designations
4	12	5	3	16	2,16	5,4	0,003	GE 4 C
6	14	6	4	13	3,6	9	0,004	GE 6 C
8	16	8	5	15	5,85	14,6	0,008	GE 8 C
10	19	9	6	12	8,65	21,6	0,012	GE 10 C
10	22	12	7	18	11,4	28,5	0,020	GEH 10 C
12	22	10	7	10	11,4	28,5	0,017	GE 12 C
12	26	15	9	18	18	45	0,030	GEH 12 C
15	26	12	9	8	18	45	0,032	GE 15 C
15	30	16	10	16	22,4	56	0,050	GEH 15 C
17	30	14	10	10	22,4	56	0,050	GE 17 C
17	35	20	12	19	31,5	78	0,090	GEH 17 C
20	35	16	12	9	31,5	78	0,065	GE 20 C
20	42	25	16	17	51	127	0,16	GEH 20 C
25	42	20	16	7	51	127	0,12	GE 25 C
25	47	28	18	17	65,5	166	0,20	GEH 25 C
30	47	22	18	6	65,5	166	0,16	GE 30 C
35	55	25	20	6	80	200	0,23	GE 35 CJ2
40	62	28	22	7	100	250	0,32	GE 40 CJ2
45	68	32	25	7	127	320	0,46	GE 45 CJ2
50	75	35	28	6	156	390	0,56	GE 50 CJ2
60	90	44	36	6	245	610	1,10	GE 60 CJ2

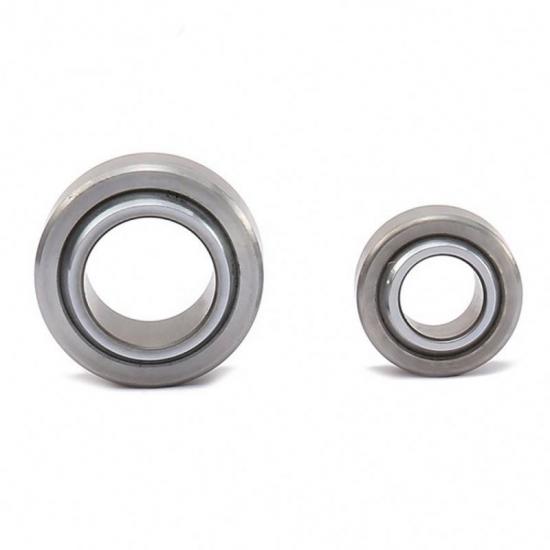

Radial Spherical Plain Bearing

Radial Spherical Plain Bearing Features:

self-lubricating
wear-resistance
self-aligning
low friction

Ge20C bearings are especially suitable for heavy loads and low speed mechanism.
