Agricultural Machinery Bearing
home

Agricultural Machinery Bearing

FD211RM Disc Harrow Bearings

new products

FD211RM Disc Harrow Bearings

1-1/2" square bore FD211RM Agricultural Bearing with 1-1/2" Square Bore, 5.5" Diagonal Bolt to Bolt Distance can be used for MacFarlane Reel Disc,we can produce this bearing with competitive price and short delivery time for you .

  • item no.:

    FD211RM
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    50
products details

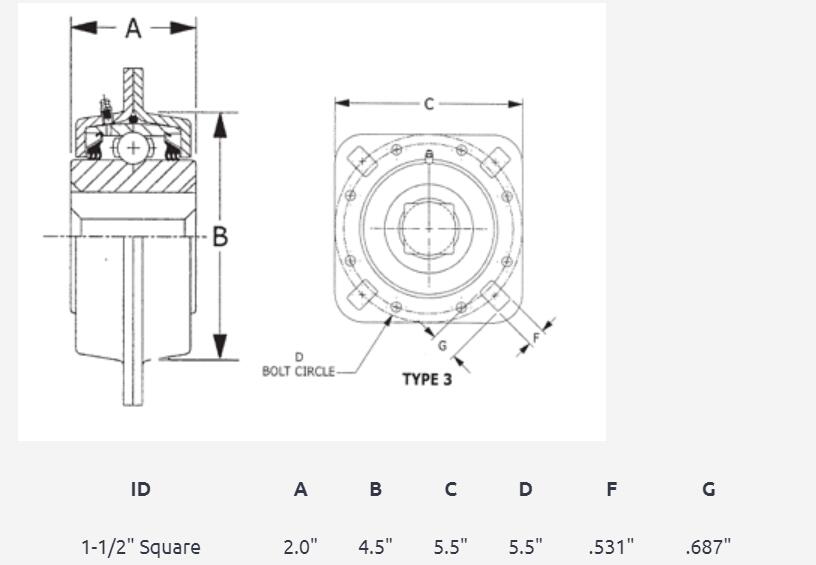

Dimension :

BORE: 1-1/2" Square

BOLT TO BOLT: 5.5"


FD211RM Disc Harrow Bearings


OEM Number:FD211RM ,FD211-1 1/2SQ ,DHU1-1/2S-211,B3587


FD211RM Flange Bearing Application :

For Brillion disc rippers Land Commanders I, II disc gangs.

Kewanee 1200 series discs.

Landoll 7130 harrow.

McFarlane Reel Disc RD4012, RD4014, RD4016, RD4020, RD4025, RD4030, RD4035, RD4044, RD4045 s/n 12947 & up disc gangs.

Precision Planting 3200 harrow.

Wil-Rich harrow.


FD211RM , FD211-1 1/2SQ, DHU1-1/2S-211 Bearings Pictures:

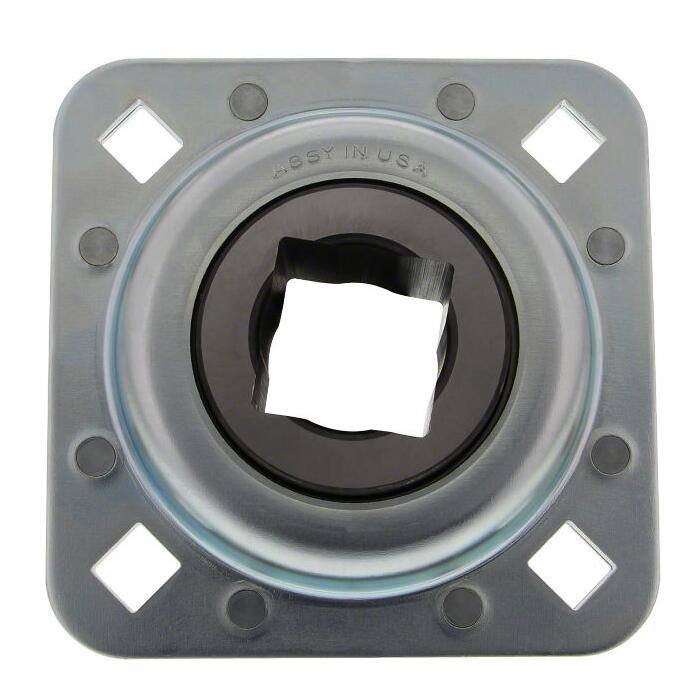

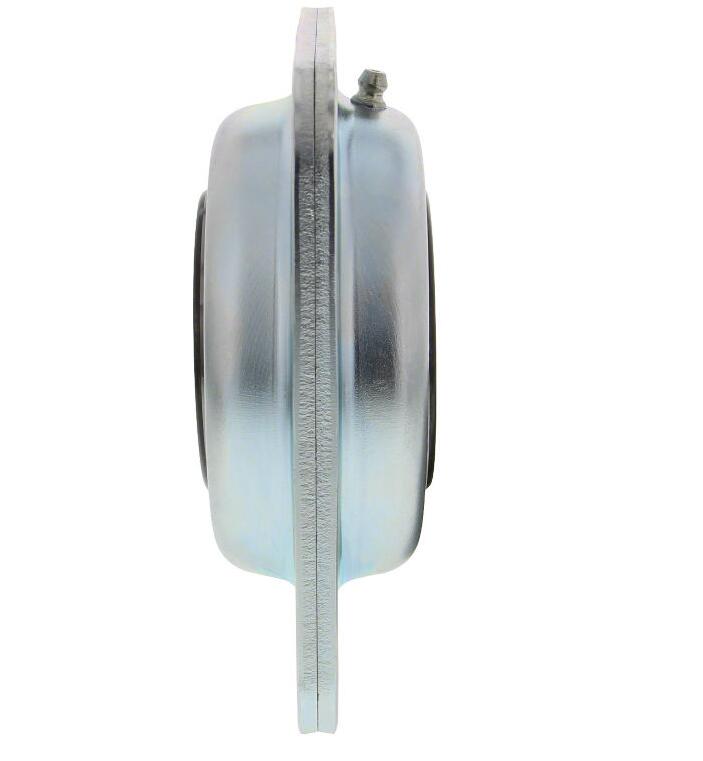

FD211RM Bearings
1-1/2" Square Bore Bearings

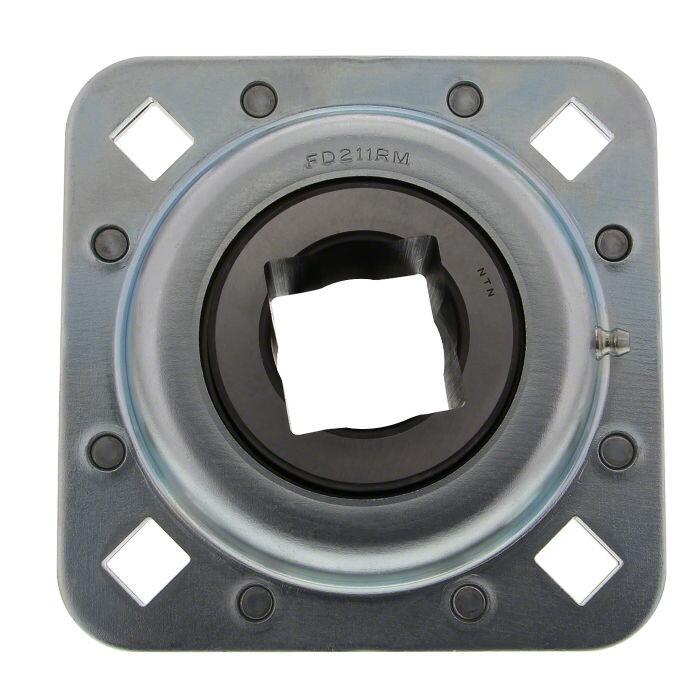

FD211RM Disc Bearing


 We Also Can Produce other high quality Disc Harrow Bearing:




ST211-1 3/4 1–2 1.78 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.531
45.21 139.7 55.6 46.4 9 72.5 113 139.7 13.5
ST211-2 3/16 1–2 2.188 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.531
55.58 139.7 55.6 46.4 9 72.5 113 139.7 13.5
ST211-1 15/16 1–2 1.939 5.5 2.752 1.827 0.354 2.854 4.449 5.5 0.531
49.24 139.7 69.9 46.4 9 72.5 113 139.7 13.5
ST740 1 2.188 5.5 2.189 1.827 0.354 2.854 4.449 5.5 0.516
55.58 139.7 55.6 46.4 9 72.5 113 139.7 13.1
ST208-1R5BC 2 1.043 5 1.654 1.378 0.276 2.165 3.622 5
26.5 127 42 35 7 55 92 127
ST209-1 1/8 1–2 1.18 5 1.673 1.685 0.276 2.343 3.839 5 0.531
29.97 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-30S 1–2 1.234 5 1.673 1.685 0.276 2.343 3.839 5 0.531
31.35 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-1 1/4 1–2 1.299 5 1.673 1.685 0.276 2.343 3.839 5 0.531
33 127 42.5 42.8 7 59.5 97.5 127 13.5
ST209-40R 1–2 1.609 5 1.673 1.685 0.276 2.343 3.839 5 0.531
40.88 127 42.5 42.8 7 59.5 97.5 127 13.5
FD-211-RM 1–2 1.531 5.5 2 1.827 0.354 2.874 4.469 5.5 0.531
38.89 139.7 50.8 46.4 9 73 113.5 139.7 13.5
ST211-40S 2 1.609 5.5 2 1.827 0.354 2.874 4.469 5.5 0.531
40.88 139.7 50.8 46.4 9 73 113.5 139.7 13.5
DHU 40S-211 2 1.609 5.5 2 1.827 0.354 2.874 4.469 5.5
40.88 139.7 50.8 46.4 9 73 113.5 139.7
ST208-1N 2 1.024 4.764 1.503 1.378 0.276 2.165 3.622 4.686
26 121 38.18 35 7 55 92 119.02
ST208-1 1/8 2 1.18 4.764 1.503 1.378 0.276 2.165 3.622 4.686
29.97 121 38.18 35 7 55 92 119.02
ST208-1 1/8G 2 1.18 4.764 1.503 1.378 0.276 2.165 3.622 4.686
29.97 121 38.18 35 7 55 92 119.02
ST208-1 42LTB 2 1.024 4.764 1.654 1.378 0.276 2.165 3.622 4.686

We have Square Bore Bearings in stock now ,for more information ,pls contact with us at info@bearings-factory.com.
