Custom U Groove Sliding Gate Track Wheel

new products

Custom U Groove Sliding Gate Track Wheel

U Groove Sliding Gate Track Wheel With Material Steel Q235 and we can do surface with galvanized with silver,yellow,color zinc,long lasting,different size can be provide.

  • item no.:

    HGU
  • lead time:

    7-30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    100
products details

U Groove Steel Sliding Gate Track wheel Specification :

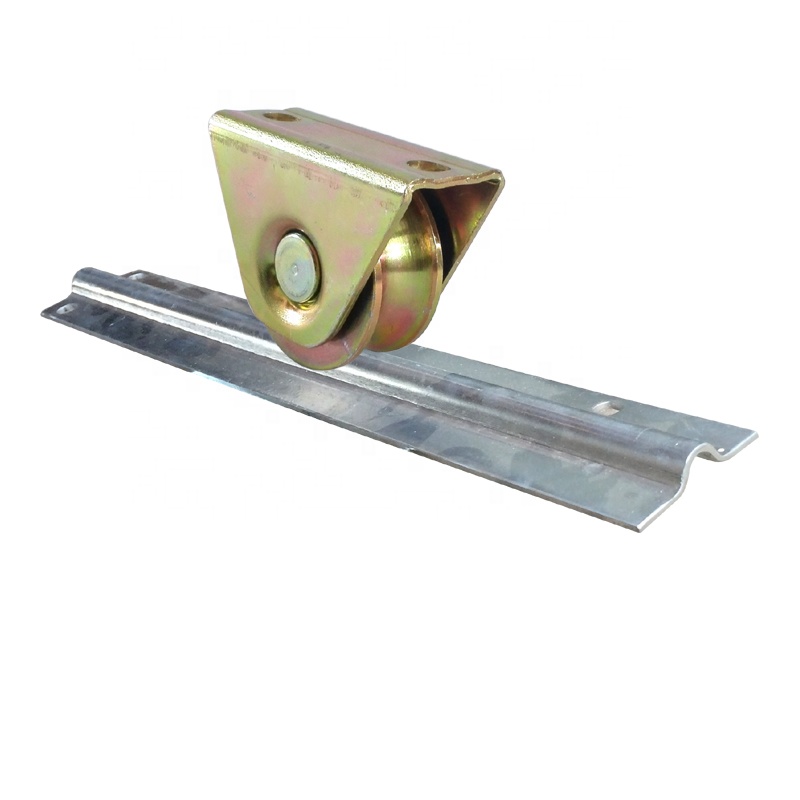

Steel Sliding Gate Track Wheel
Steel Sliding Gate Track

1.With Material: steel,Q235 and we can finish surface treatment with yellow zinc plating or silver zin plating .

2.We can produce with  wheel diameter with 30mm ,38mm etc and customized  size also welcome

4.We can produce with inside with single or double bearings

5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

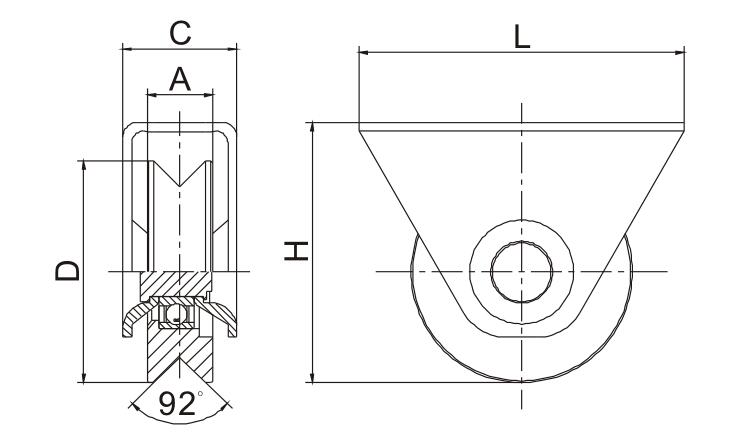

We Can Produce Different Size of Sliding Gate Roller ,Below Here Is List For Your Reference :


NO. D A C H L WT(G)
MKL1V30 30 10 16 35 45 60
MKL1V40 38 12 20 44 58 112
MKL1V50 50 15 25 57 75 266
MKL1V60 58 17 28 64 85 392
MKL1V70 68 20 35 80 100 638
MKL1V80 78 20 35 85 100 809
MKL1V90 88 20 36 100 132 1104
MKL1V100 98 22 36 105 132 1391
MKL1V120 118 25 37 127 158 2301

Sliding gate door wheel also can be produce with two bearing which can bear double weight capacity ,for moe informations ,pls contact with us directly .


Other Type of Sliding Gate Bearing wheels

sliding gate wheel with exterior bracket


sliding gate wheel with double plates


sliding gate wheel with interior bracket


sliding gate wheel with bolt


sliding gate wheel with bolt


sliding gate wheel with exterior bracket
sliding gate wheel with double plates
sliding gate wheel with interior bracket
sliding gate wheel with bolt
sliding gate wheel with bolt


Sliding Gate Roller Wheels Are Widely Used In :

Gate doors

Factory doors

Entrance doors

Warehouse sliding doors

Sliding Gate V Track Packing:

Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.
