Clutch Release Bearing
home

Auto Bearing

Clutch Release Bearing

CSK17PP One-way Clutch Bearing

new products

CSK17PP One-way Clutch Bearing

17*40*12 mm  CSK17PP One Way Sprag freewheel Clutch Bearing are produce with Chrome steel Gcr15 material ,we also can produce as your requirements such as produce with stainless steel material .

  • item no.:

    CSK17PP
  • lead time:

    7 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

CSK17PP Clutch Release Bearing 6203 One Way Bearing Clutch Introduction :


Bearing No. : CSK17PP Bearing

Type: One-way Clutch Bearing

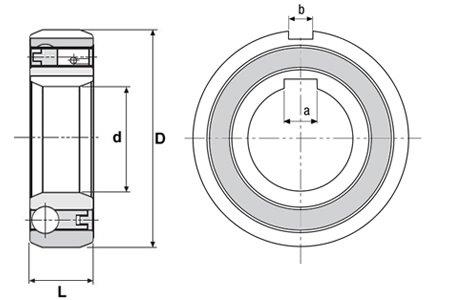

Dimension :

Inner Diameter: 14mm

Outer Diameter: 40mm

Width: 12mm

CSK17PP Clutch Bearing


Materials:

Product Seal: two side Seal

Ball Material: Chrome Steel

Rings Material :Chrome Steel

Retainer Material: Metal or High Speed Plastic

We also can produce according to customer's requirements produce CSK12 bearing with stainless steel 420



Suffix Designations Explain :

No suffix after number: no keyway in races

With One Single P: one keyway in inner race

With Double PP : Keyways in inner and outer races.

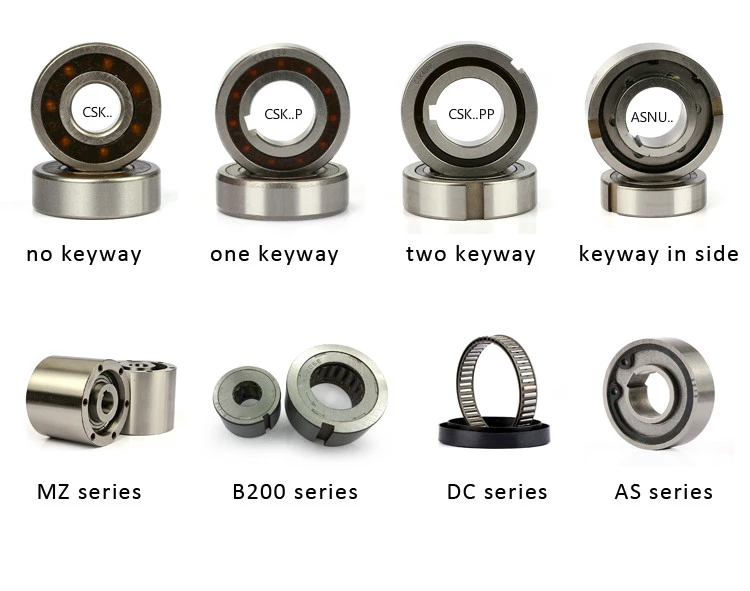

Below here is picutre for your reference ,we can produce other one way clutch bearing for you .

freewheel Clutch Bearing

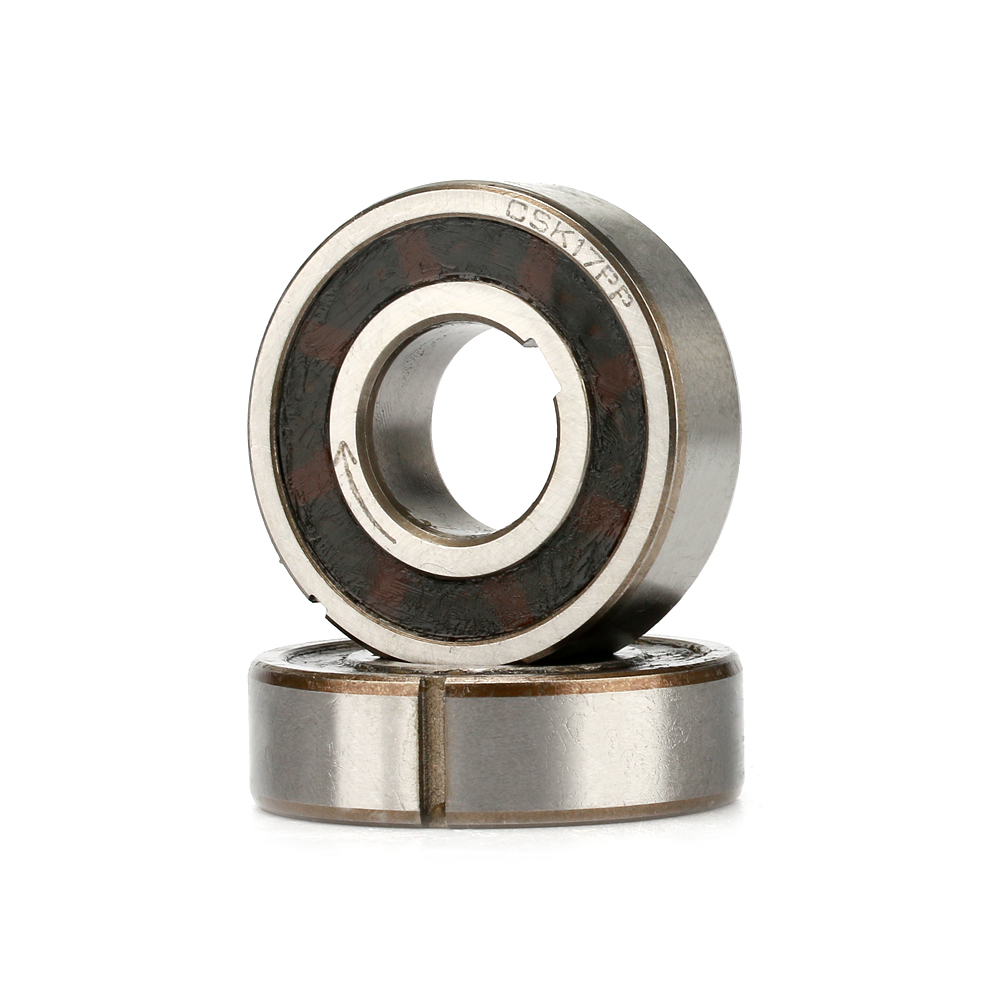

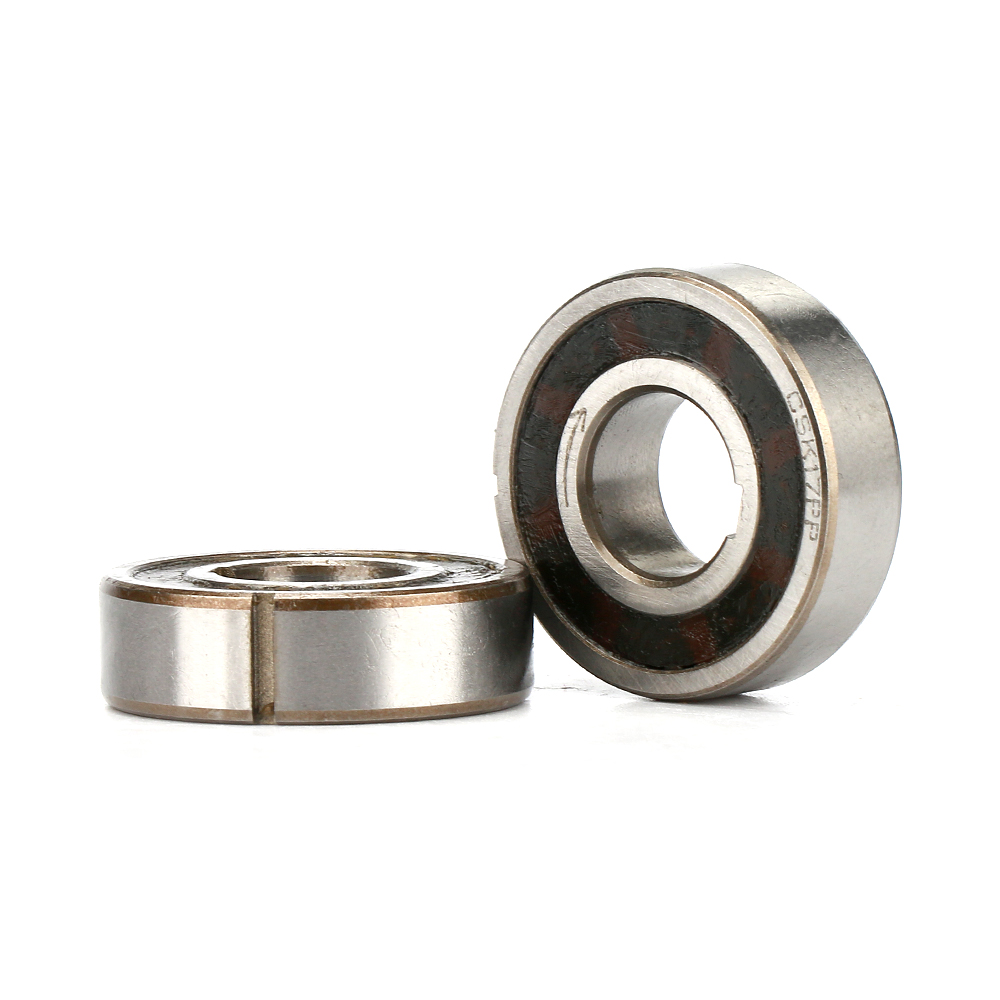

CSK17PP Sprag Clutch One Way Bearing with keyways 17x40x12 Picture Show :

CSK17PP Bearing
CSK17PP One Way Bearing

Sprag Clutch or One Way Bearings integrate a sprag type freewheel into the 6200 bearing range. This creates a one way bearing or anti-reverse bearing, which will transmit torque from shaft to housing in one direction and allow free rotation in the other.


CSK One Way Bearing Feature:

The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6.
Operating temperature range: -40° F (-40° C) to 212° F (+100° C).
