699-2RS Miniature Bearing

new products

699-2RS Miniature Bearing

9mm x 20mm x 6mm 699-2RS Sealed Ball Bearing produce with Chrome steel Gcr15 ,we can provide sample to test inadvance .

  • item no.:

    699-2RS
  • lead time:

    5 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI,Shanghai
  • MOQ:

    1000
products details

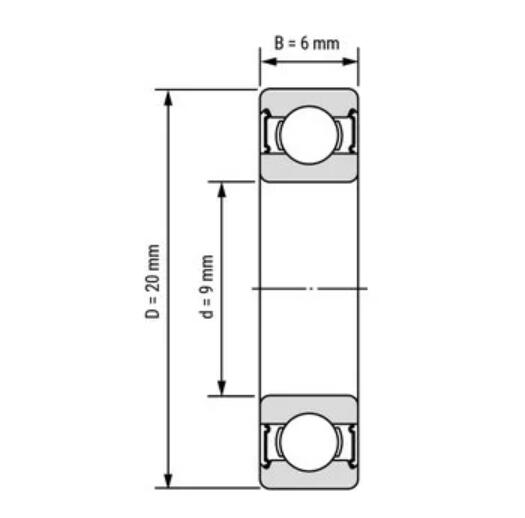

High Quality 699-2RS Groove Ball Bearing Specification :

Material: Chrome steel

Inside diameter: 9 mm

Outside diameter: 20 mm

Width: 6 mm

Double sealing ,ZZ or 2RS

699-ZZ Bearing Specification



ZZ BEARINGS can produce high quality industrial grade bearings,such as ABEC-1, ABEC-3 or higher tolerance class.

All are CN clearance can be produce as specified.

699 bearing
699 Small Ball Bearing
 699-ZZ Bearings

699 Bearing Application :


699 bearing 9*20*6mm can be  used in Feeder or  Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.


We can produce other mini ball bearings :

Type

Dimension (mm)

Basic Load Rating (N)

Limiting Speed (rpm)

Weight (Kg)

d

D

B

r (min)

Dynamic

Static

Grease

Oil

695

5

13

4

0.2

1070

393

38000

45000

0.0024

696

6

15

5

0.2

1460

598

35000

42000

0.0038

697

7

17

5

0.3

1600

714

33000

39000

0.0052

698

8

19

6

0.3

2240

917

31000

37000

0.0073

699

9

20

6

0.3

2470

1088

29000

35000

0.0082

6900

10

22

6

0.3

2690

1270

28000

34000

0.009

6901

12

24

6

0.3

2890

1450

25000

30000

0.011

6902

15

28

7

0.3

4320

2260

22000

26000

0.016

6903

17

30

7

0.3

4310

2310

20000

24000

0.018

6904

20

37

9

0.3

6380

3660

17000

21000

0.036

6905

25

42

9

0.3

6650

4190

14000

17000

0.042

6906

30

47

9

0.3

7200

5040

12000

15000

0.048

6907

35

55

10

0.6

10370

7180

10000

13000

0.074

6908

40

62

12

0.6

11270

8450

9000

11000

0.110

6909

45

68

12

0.6

11580

9120

8000

9000

0.128

6910

50

72

12

0.6

11830

9880

6900

8500

0.132

6911

55

80

13

1.0

16000

13300

8000

9500

0.189

6912

60

85

13

1.0

19400

16300

7500

9000

0.192
