628ZZ U Groove Bearings

new products

628ZZ U Groove Bearings

8*31.4*9.6mm Special S628ZZ are with U groove out rings,this bearings can used for sliding track system.

  • item no.:

    628ZZ
  • lead time:

    7 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • payment:

    30% TT in advance ,70% TT finish production
  • MOQ:

    100
products details

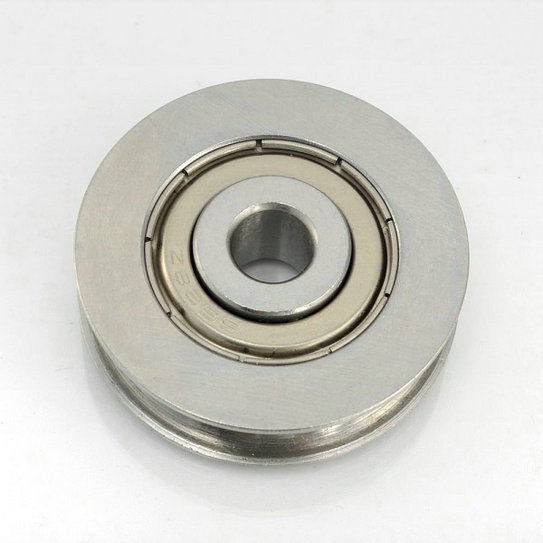

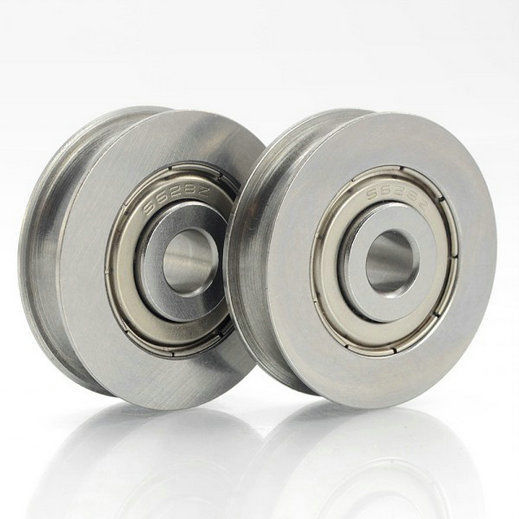

Special S628ZZ Stainless Steel U Groove Bearing Specification :


Bearing No: Special S628ZZ

Type:U Groove Ball Bearing

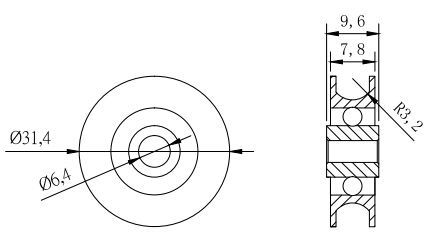

Dimension :

Inner diameter:8mm

Outer diameter :31.4mm

Height :9.6mm

Material: GCr15

Weight: 0.029kg

Precision Rating: ABEC-1

Seals Type: ZZ

Grease: 30% ~ 40% MULTEMP SRL

Temperature: -40℃ to + 110℃

Load Capacity: 3520N

U Groove Bearings


628 U Bearing Application:

S628ZZ Stainless steel U groove ball bearings  produce with stainless steel material , these type U bearings are commonly used in desktop and industrial printers, ATMs, robotics,cable pulling machines.



U Groove Outer Ring Bearings Features :


1.We can produce with high reliability and smooth running bearings

2. We are China directly factory price,we can provide with fast delivery.

3.Before Order we can provide with free samples is available for test

4. ZZ BEARING are produce with high accuracy and speed

5. Custom Job accepted,welcome with your drawing or sample .

 Ball Bearing U Groove
U Groove Bearing
