Non-standard Bearing
home

Non-standard Bearing

6202-2RS Wide Inner Ring Bearings

new products

6202-2RS Wide Inner Ring Bearings

19.05 * 35 * 11 mm 6202-2RS ball bearing ,we can produce with custom service .

  • item no.:

    6200
  • lead time:

    7-30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • payment:

    30% TT in advance ,70% TT finish production
  • MOQ:

    1000
products details

Specification :

Inner diameter:19.05mm

Outer diameter : 35mm

Height :11mm

Material :Chrome steel Gcr15 or stainless steel

We also can produce bearing with other size such as 20*35*11mm


Bearing Applications:

The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines , power tools, House hold appliances, Washing machines motors, Clutch bearings, Trailers, Casters, and various other special machines.


We Can Produce Other 62200 Series Deep Groove Ball Bearing :


Bearing No. Boundary dimensions Basic load ratings (kN) Mass
mm Dynamic Static Kg
d D B rs min Cr Cor
62201 12 32 14 1 6.82 3.06 0.053
62202 15 35 14 1 7.64 3.72 0.065
62203 17 40 16 1 9.57 4.79 0.096
62204 20 47 18 1.5 12.84 6.65 0.145
62205 25 52 18 1.5 14.02 7.88 0.172
62206 30 62 20 1.5 19.46 11.31 0.275
62207 35 72 23 2 25.67 15.3 0.41
62208 40 80 23 2 29.52 18.14 0.616
62209 45 85 23 2 31.67 20.68 0.625
62210 50 90 23 2 35.07 23.18 0.726

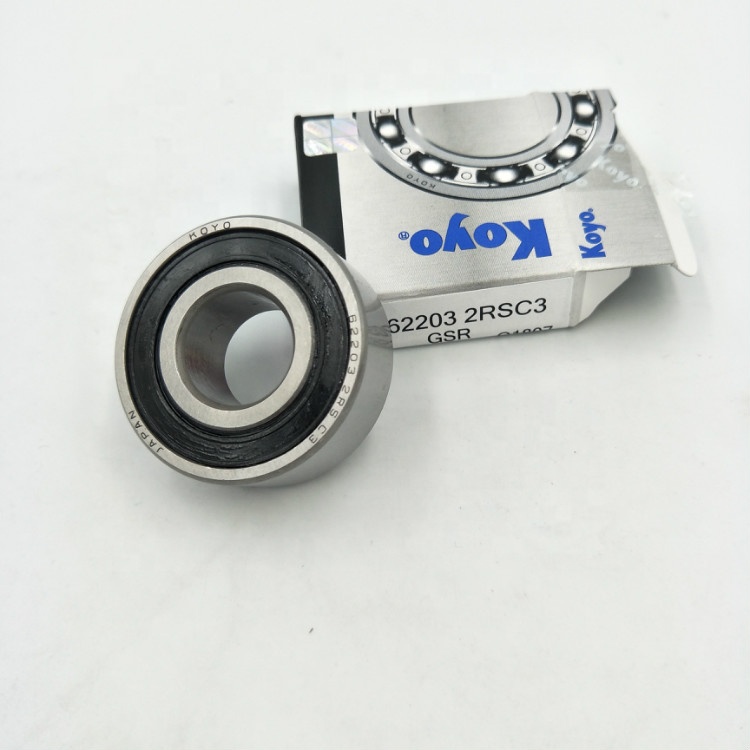

62203 bearing
