209KRRB2 1-1/2" Hex Bore AG Ball Bearing

Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.

item no.:
209KRRB2
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

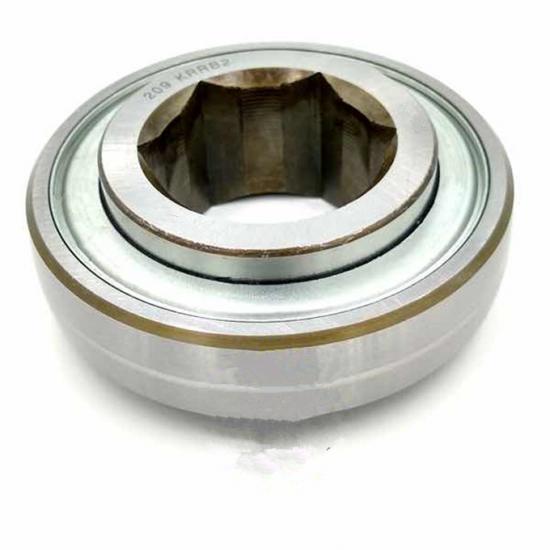

AG Ball Bearing 209KRRB2 Introduction :

DIMENSIONS:

BORE: 1-1/2" Hex

O.D. 3.34" Round

IR Width: 1.18"

OR Width: .74"

Bearing 209KRRB2 size

This bearing is also known as:

FAFNIR: 209KRRB2

BCA: HPS108GPH

Link-Belt: 24K209N

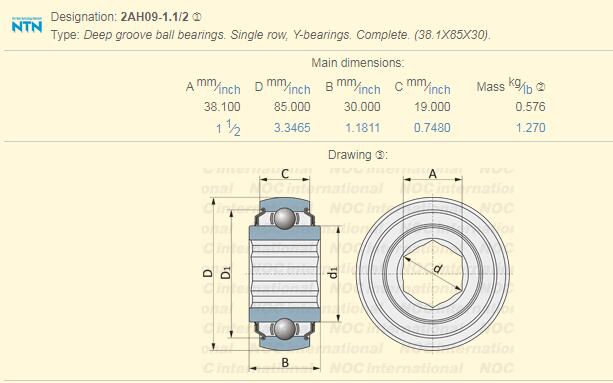

NTN: 2AH09-1 1/2

209KRRB2 bearing can be used for JOHN DEERE: AE40895 Fits JD430, 435, 530, 535 Baler

JOHN DEERE: AE40895

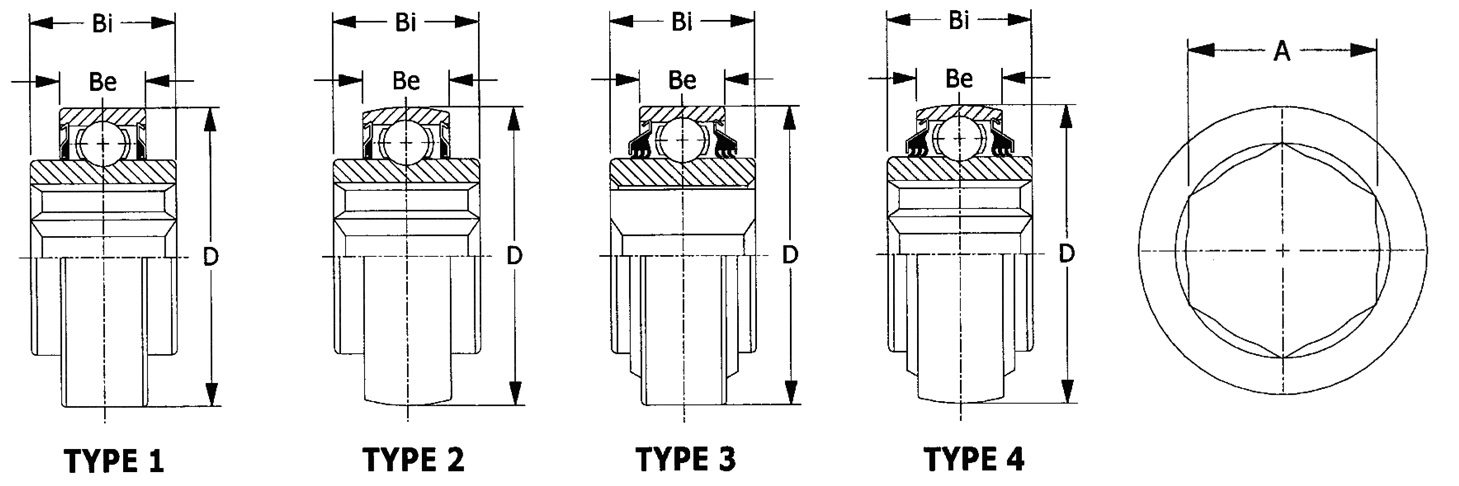

We Can Produce Other Square Bore Bearings :

Bearing Number	Type	Hex Shaft Size	A	D	Bi	Be	Load Ratings N		Wt.
			mm	mm	mm	mm	Dynamic	Static	kg
207KRR17	1	1 1/4"	31.775	72	25	17	5770	3150	0.395
207KRRB17	2	1 1/4"	31.775	72	25	17	5770	3150	0.395
207KPPB3	4	1 1/4"	31.775	72	37.694	17	5770	3150	0.395
207KPP3	3	1 1/4"	31.775	72	25	17	5770	3150	0.395
GW208 PPB22*	4	1 1/4"	31.775	80	36.52	21	7340	3650	0.68
W208KRRB6	2	1 3/8"	34.95	80	36.52	21	7340	3650	0.594
W208PP16	3	1 1/4"	31.775	80	36.52	18	7340	3650	0.658
W208PPB16	4	1 1/4"	31.775	80	36.52	18	7340	3650	0.658
W208PP21	3	1 1/4"	31.775	80	36.52	18	7340	3650	0.658
G209KPPB2*	4	1 1/2"	38.125	85	30	19	7350	4150	0.572
G5209KYYB2**	double row	1 1/2"	38.125	85	33	30	9330	7580	0.576
209KRRB2	2	1 1/2"	38.125	85	30	19	7350	4150	0.576
210RRB6	4	1 1/2"	38.125	90	30	22	9070	5675	0.9
210PPB20	4	1 1/4"	31.877	90	36.45	22	9070	5675	0.907
210PP20	3	1 1/4"	31.877	90	36.45	22	9070	5675	0.93
G210KPPB2*	4	1 1/2"	38.125	90	30	22	7780	4650	0.907
